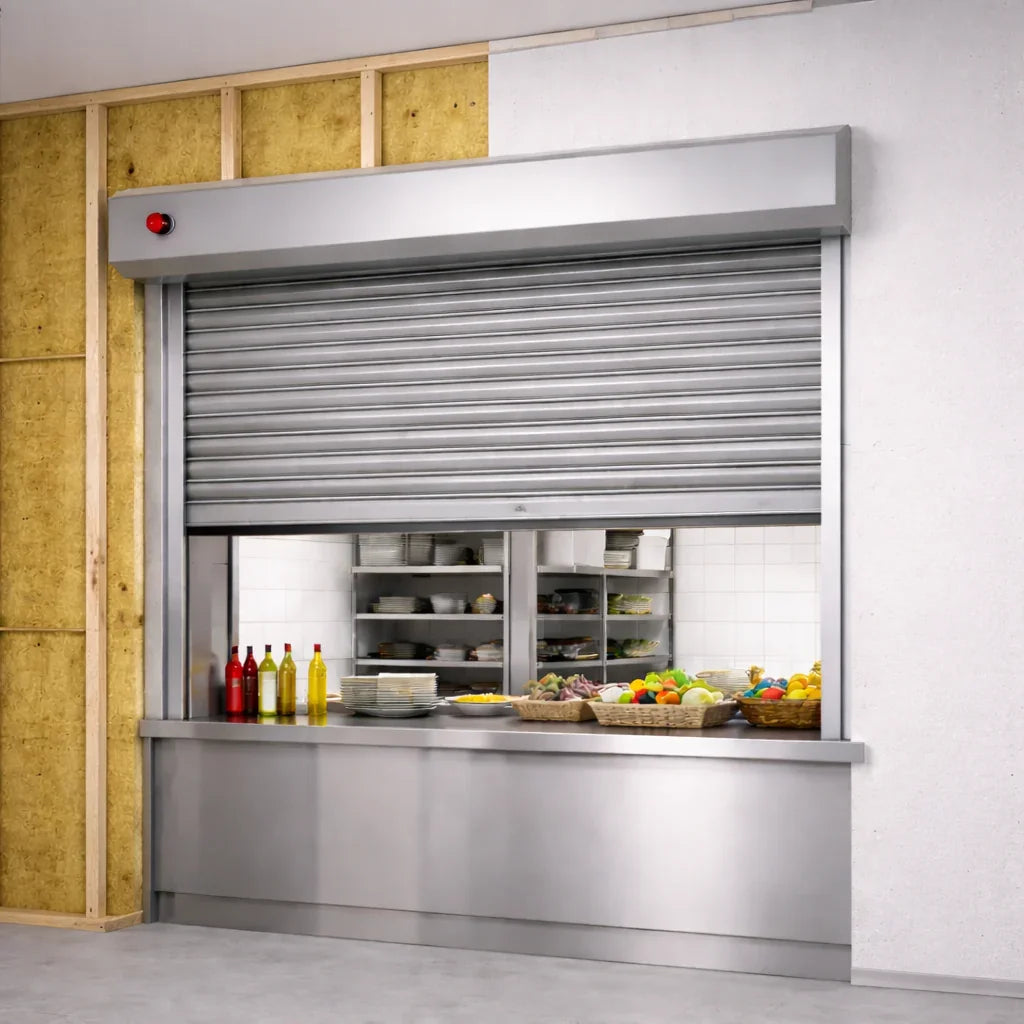

Servery Fire Shutters - Flexible Structure

Tested Fire Protection System (E60 & E120)

Independently tested to BS EN 1634-1 for up to 120 minutes fire integrity

Designed for Timber Stud Walls

Certified for installation into timber stud partitions (not suitable for metal stud)

Complete Tested Assembly

Includes shutter, substrate, and cill detail for full system compliance

Maintains Fire Compartmentation

Prevents the spread of fire and smoke through servery openings

Tubular Motor Option (Smaller Openings)

Includes battery backup, manual override, and fire alarm relay with AV warning

Industrial Motor Option (Larger Openings)

Fitted with fusible link, solenoid release, AV warning, and chain override

Automatic Fire Operation

Closes automatically on fire alarm activation or thermal trigger

Made to Measure Design

Manufactured to suit your exact opening and wall construction

Ideal for Serveries & Counters

Perfect for kitchens, kiosks, and public service areas requiring fire protection

Compliant with UK Regulations

Designed to meet Building Control requirements for fire safety systems

The Servery Fire Shutters for Flexible Structures are designed as a tested fire rated system, meaning customisation is more controlled to ensure compliance with certification. However, there are still key configuration options available to suit your opening size, operation requirements, and project specification.

Fire Rating & System Configuration

Fire Ratings Available:

• E60 (60 minutes integrity)
• E90 (90 minutes integrity)

Tested System:

• Includes shutter, timber stud substrate, and cill detail
• Must be installed in accordance with the tested specification

Substrate Requirements

This fire shutter is intended for installation into the specified tested timber stud wall construction.

The complete system includes requirements for:

• timber studs;
• fire-rated wall boards;
• insulation;
• shutter fixings;
• interfaces around the opening;
  cill or landing construction.

The system is not suitable for metal stud partitions.

Changes to the wall construction may affect the tested fire performance, so the substrate should be confirmed before the shutter is ordered.

Curtain & Shutter Design

Solid Steel Fire Curtain (Standard)

• Galvanised steel laths designed for fire resistance
• Engineered for controlled descent during fire activation

Motor & Operation Options

Tubular Motor (Smaller Openings):

• Ideal for smaller servery openings
• Max Width 4m (Depending on Height)
• Max Height 2m (Depending on Width)

Includes:

• Battery backup for operation during power failure
• Manual override for emergency use
• Fire alarm relay for automatic activation
• Integrated audio-visual warning system

Industrial Motor (Larger Openings):

• Suitable for wider or higher openings
• Max Width 6.75m (Depending on Height)
• Max Height 2.4m (Depending on Width)

Includes:

• Fusible link for thermal activation
• Solenoid release mechanism
• Audio-visual warning system
• Chain override for manual operation

Activation & Safety Features

Automatic Fire Operation (Standard)

• Closes on fire alarm signal or thermal trigger

Controlled Descent

• Ensures safe and compliant closing during activation

Audio Visual Warning

• Alerts occupants prior to shutter closure

Finish Options

• Galvanised Finish (Standard)
• Durable, industrial finish suitable for most environments

Powder Coated Finish (Optional)

• Available in RAL/BS colours for visible installations
• Subject to lead time and cost

Size & Installation Options

Made to Measure Design

• Manufactured to suit your exact opening dimensions

Installation Requirements

• Must be installed to tested specification
• Includes correct fixing into timber stud wall and cill detail

Additional Considerations

• Designed as a compliance first system with limited structural changes
• All elements must align with tested configuration to maintain fire rating
• Ideal for projects requiring Building Control approval in flexible structures

This approach ensures the shutter delivers certified fire performance, safe operation, and full compliance, while still allowing controlled flexibility to suit your project.

Fire Rating & Compliance

• Tested to BS EN 1634-1
• Fire resistance classifications: E60 & E120 (Integrity)
• Designed to maintain fire compartmentation in servery applications
• Suitable for Building Control approval when installed to tested specification

Substrate & Installation Requirements

• Certified for installation into timber stud wall construction only
• Not suitable for metal stud partitions
• Must include tested cill detail and wall build-up
• Installation must follow tested assembly to maintain fire rating

Curtain Construction

• Galvanised steel fire rated laths
• Solid curtain design for fire and smoke containment
• Engineered for controlled descent during activation

Motor Options

Tubular Motor (Smaller Openings):

• Max Width:- 4m (Depending on Height)
• Max Height 2m (Depending on Width)
• Integrated within barrel
• Battery backup for operation during power failure
• Manual override facility
• Fire alarm relay connection
• Audio-visual warning system

Industrial Motor (Larger Openings):

• Max Width:- 6.75m (Depending on Height)
• Max Height 2.4m (Depending on Width)
• Heavy duty external motor system
• Fusible link for thermal activation
• Solenoid release mechanism
• Audio visual warning system
• Chain override for manual operation

Activation & Safety Features

• Automatic closure on fire alarm signal
• Backup activation via fusible link (industrial motor)
• Controlled descent for safe operation
• Audio visual warning prior to shutter movement

Control System

• Interface with fire alarm system (volt-free contact)
• Fail-safe operation in the event of power failure
• Compliance with fire system integration requirements

Finish Options

• Galvanised steel finish (standard)
• Optional powder coating in RAL or BS colours

Size & Configuration

• Made to measure to suit opening dimensions
• Motor type selected based on opening size and weight

Application

• Servery openings in commercial kitchens, kiosks, counters
• Suitable for flexible structures using timber stud walls
• Designed for fire separation between public and back of house areas

This specification ensures the system delivers certified fire protection, safe automatic operation, and full compliance when installed as tested.

We aim to keep lead times as efficient as possible for the Servery Fire Shutters – Flexible Structure, while ensuring full compliance with fire testing requirements. Typical manufacturing lead times are 3–4 weeks for tubular motor systems (smaller openings) and 3–5 weeks for industrial motor systems (larger openings). These timeframes reflect the specialist nature of the product and the need to manufacture in line with the tested fire-rated specification. Please note, any project-specific requirements or powder coated finishes may extend lead times slightly.

Installation is a critical part of achieving the certified fire performance and must be carried out in accordance with the tested system design. This includes correct installation into the approved timber stud wall construction, along with the specified cill and structural details. For supply and installation projects, the process typically includes a site survey to confirm substrate suitability, followed by manufacture and coordinated installation. Due to the compliance requirements, professional installation is strongly recommended to ensure the system meets BS EN 1634-1 certification and Building Control approval.

The Servery Fire Shutter for Flexible Structures is a specialist, tested fire rated system, so pricing reflects the certification, compliance requirements, and integrated safety features. Costs will vary depending on size, fire rating (E60 or E120), and motor type.

Indicative Supply Only Prices

Tubular Motor Fire Shutters (Smaller Openings)

• Small Servery (up to 1200mm wide): £1,800 – £2,800
• Medium Servery (1200mm – 2000mm): £2,500 – £3,800

Industrial Motor Fire Shutters (Larger Openings)

• Medium Openings (2000mm – 3000mm): £3,500 – £5,500
• Large Openings (3000mm+): £5,000 – £8,000+

Supply & Installation Prices

• Tubular Motor Systems: £2,500 – £4,500
• Industrial Motor Systems: £4,500 – £9,000+

Installation pricing depends heavily on substrate preparation and compliance requirements.

What Affects the Price?

• Fire rating required (E60 vs E120)
• Opening size and configuration
• Motor type (tubular vs industrial)
• Substrate construction (timber stud wall build up requirements)
• Fire alarm integration and controls
• Finish options (galvanised vs powder coated)

Optional Extras

• Powder coating (RAL/BS colours): +10–20%Additional fire alarm interfaces: £150 – £500
• Enhanced audio-visual warning systems: £200 – £600
• Site surveys and compliance inspections: project dependent

Budget Summary

This system is ideal for:

• Commercial kitchens and serveries requiring certified fire protection
• Projects needing Building Control approval
• Flexible structures where standard fire shutters cannot be used

Due to the compliance critical nature of this product, we recommend obtaining a project specific quotation to ensure the system meets all fire and installation requirements.
