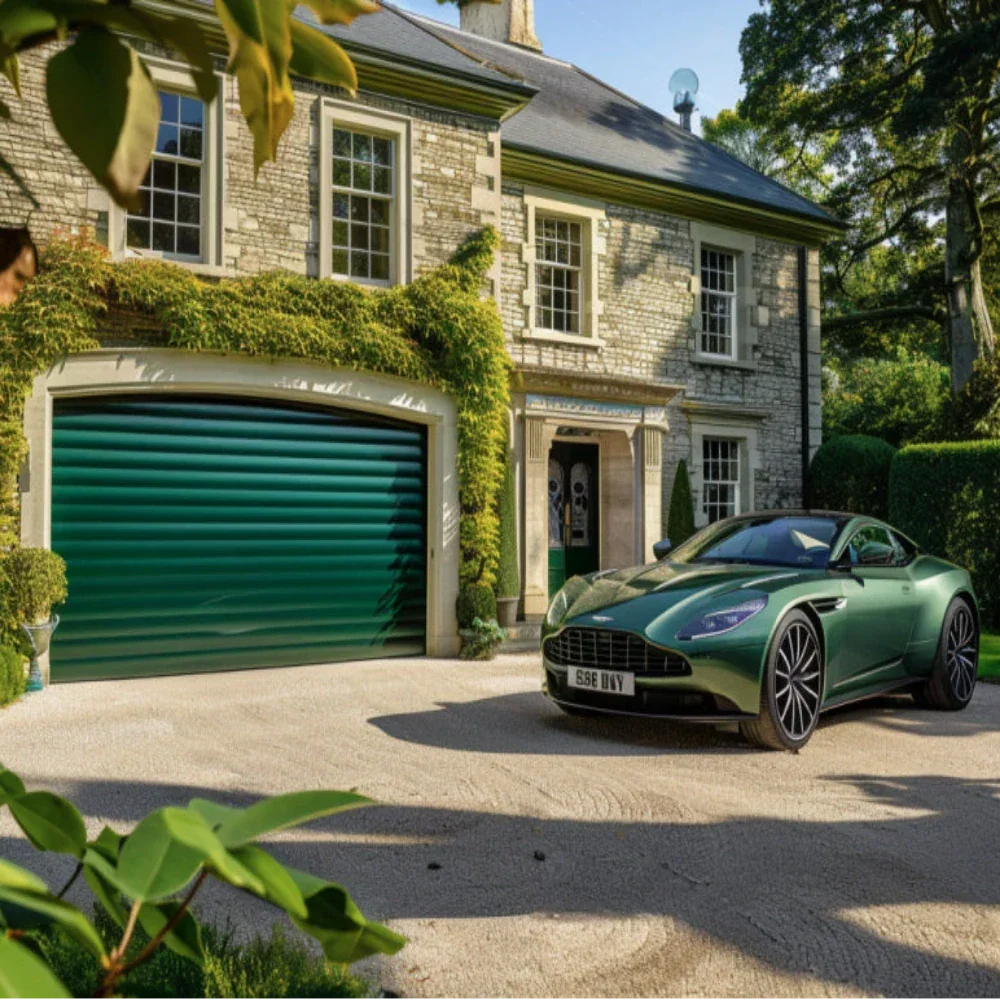

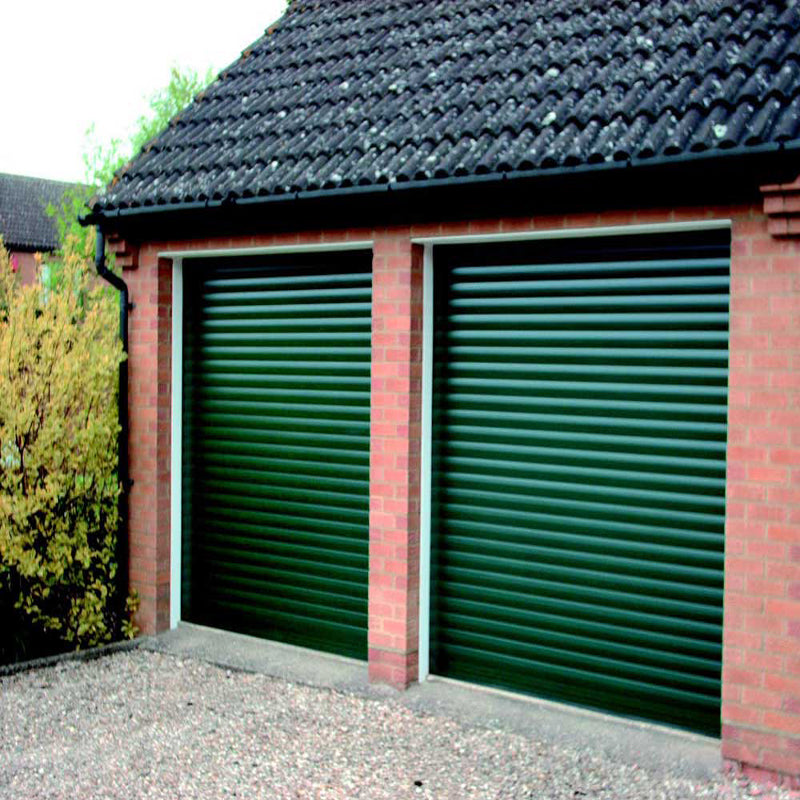

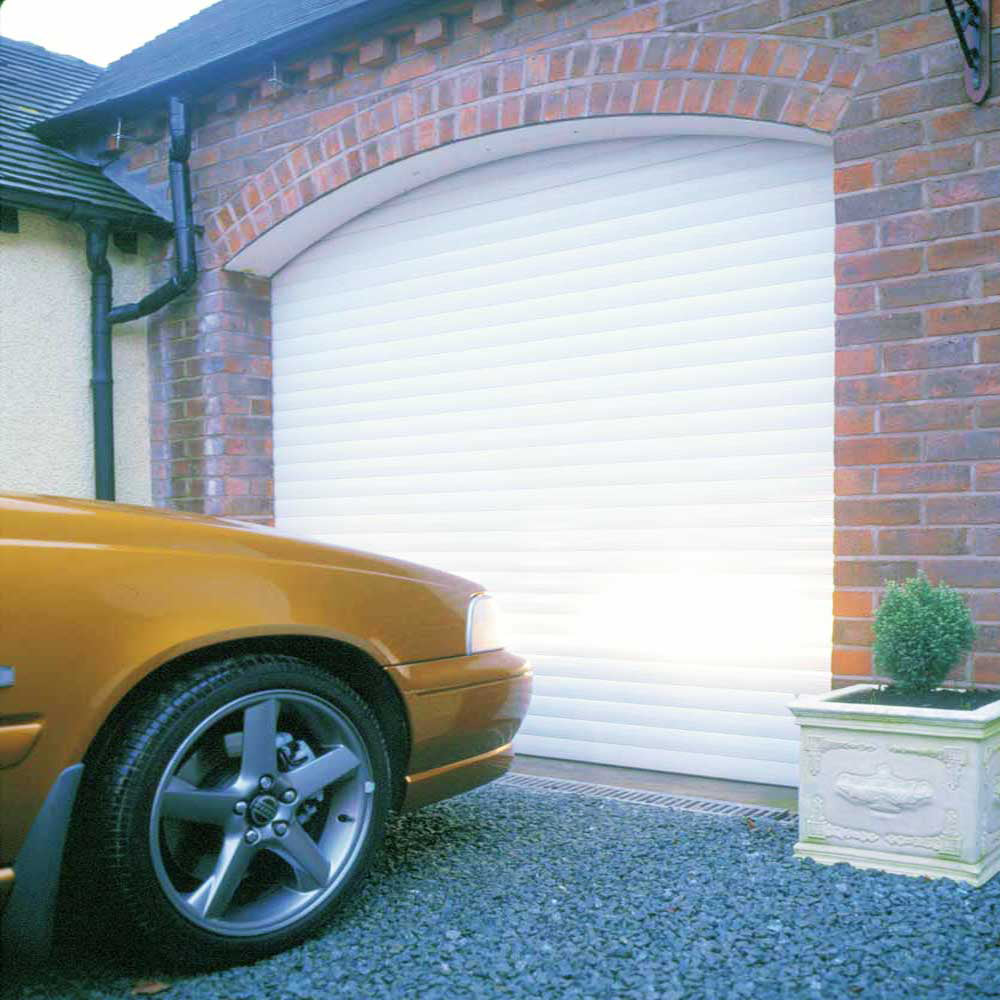

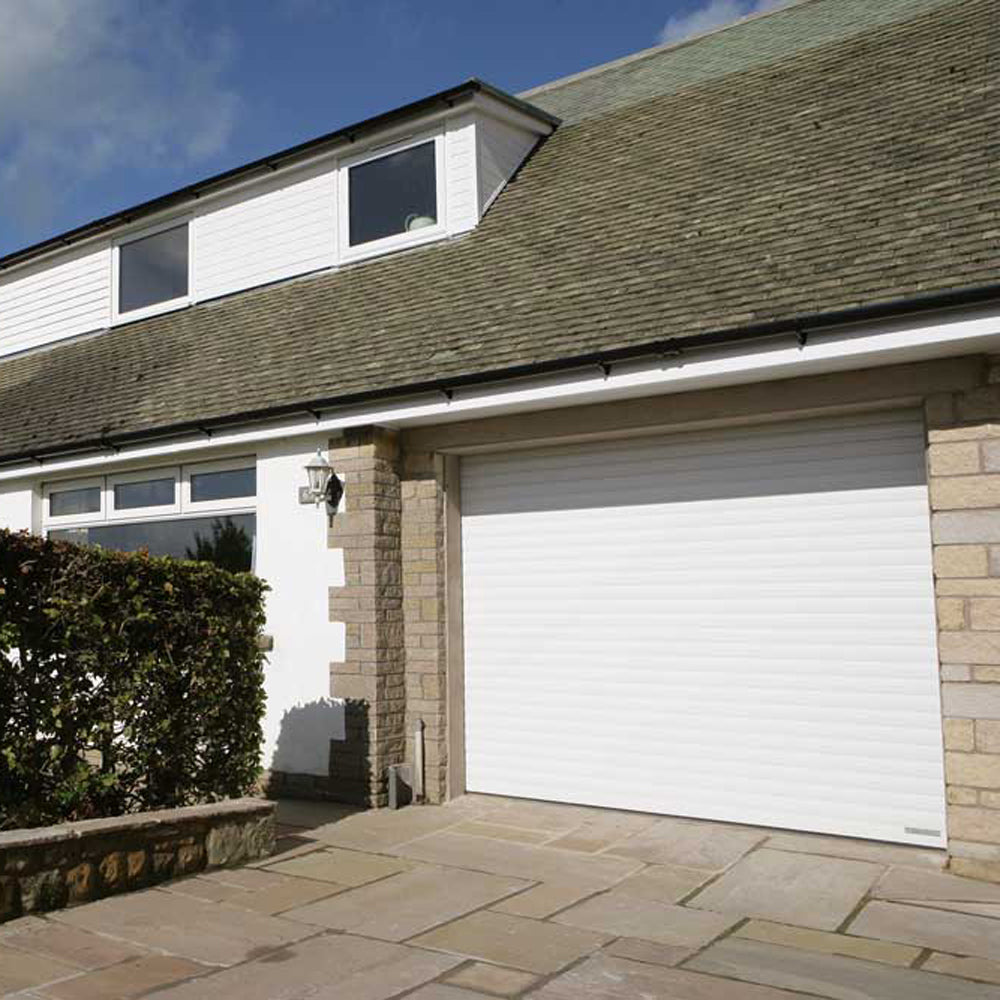

SeceuroGlide Original Roller Garage Door

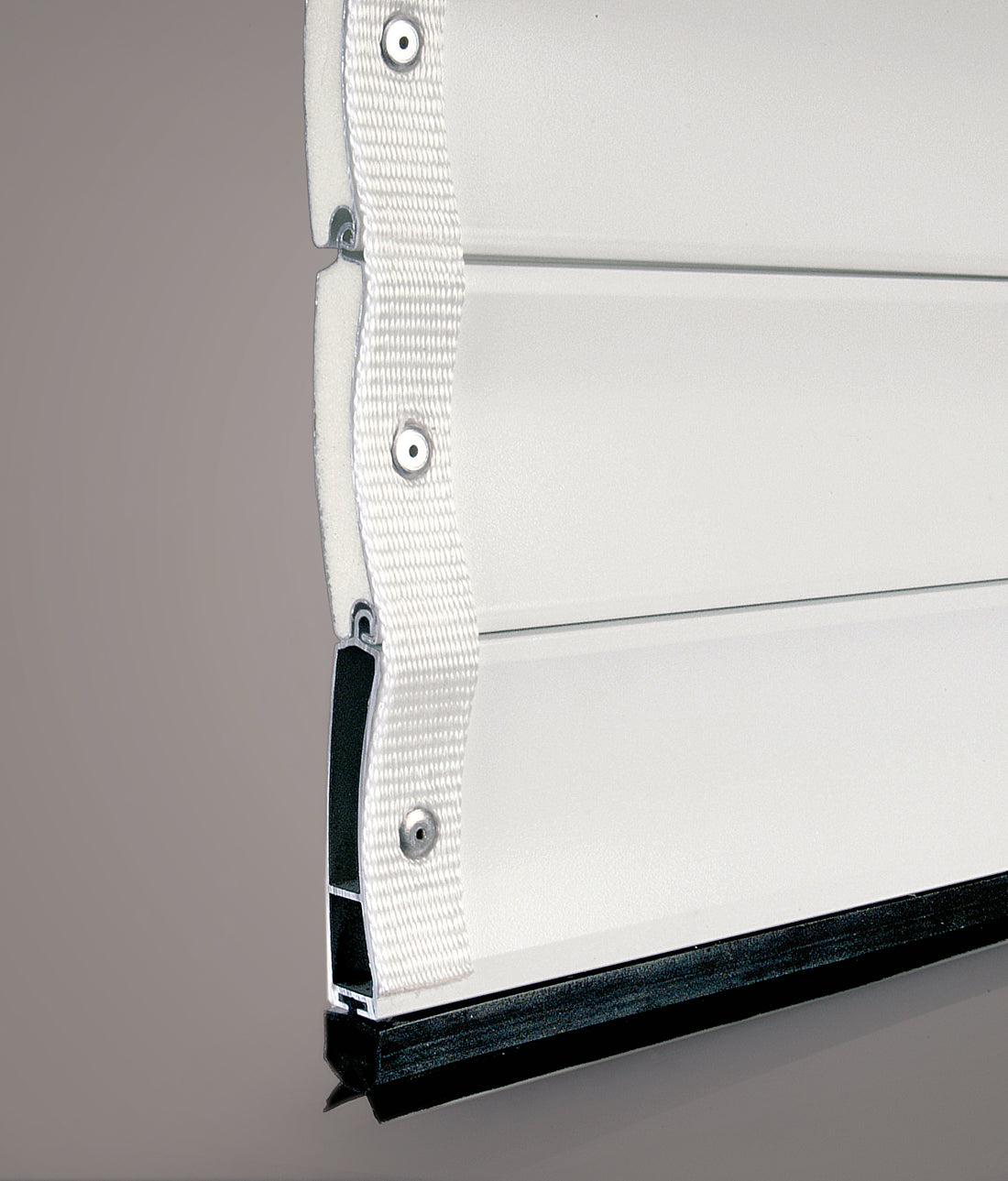

• Slat: extruded twin-walled aluminium, foam filled, joined by webbing
• Slat height: 78.5mm
• Curtain thickness: approx. 14mm
• Weight: approx. 9kg/m²
• Maximum width: approx. 5500mm (depends on height)
• Maximum height: approx. 3500mm (depends on width)
• Headroom: 300mm or 350mm, depending on door height

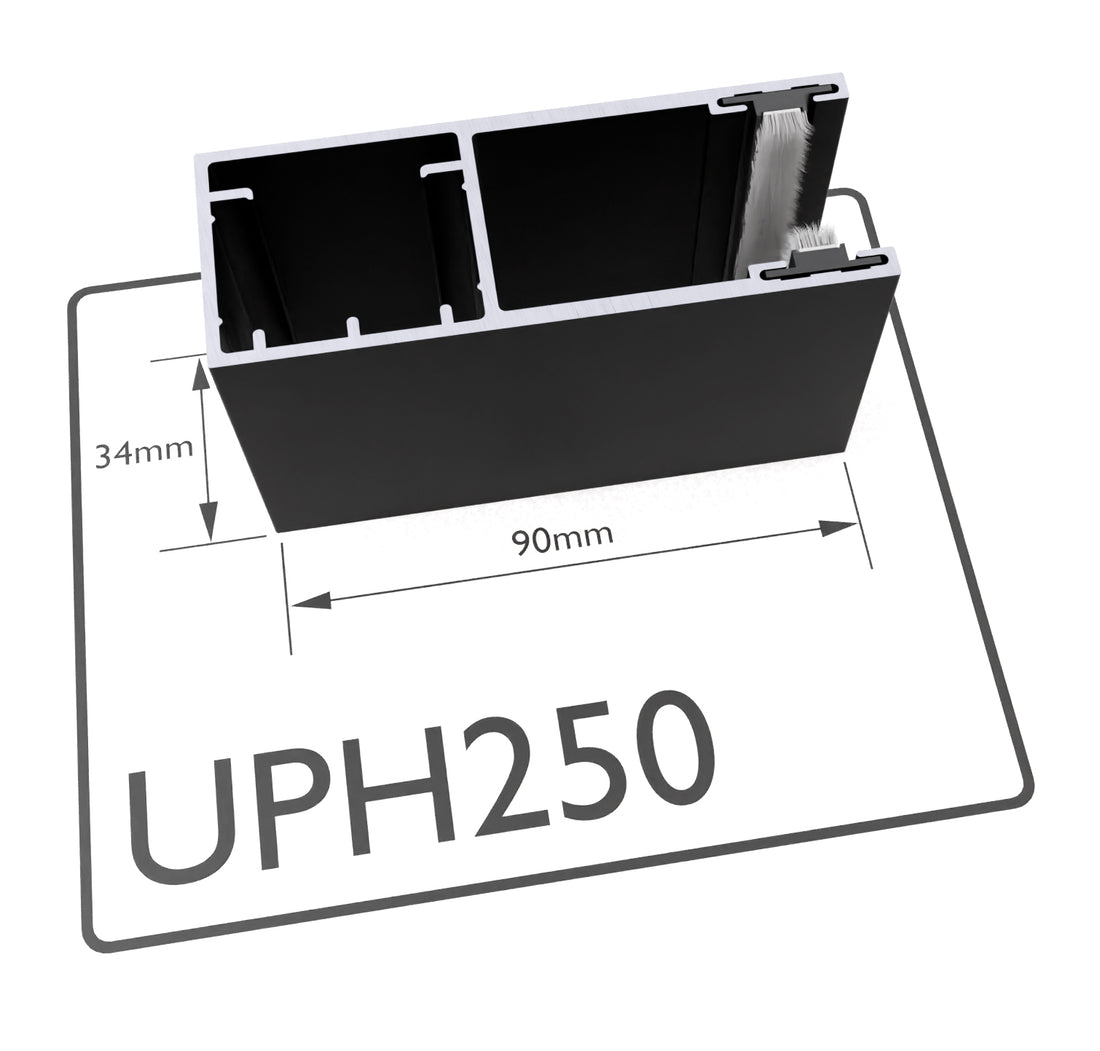

• Guide rails: extruded aluminium with brush seals; 75mm up to 4600mm wide, 90mm above

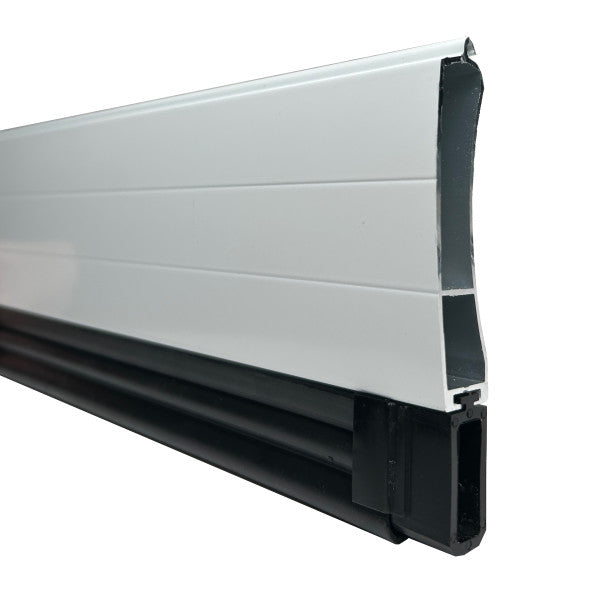

• Bottom slat: reinforced aluminium with triple chamber rubber seal
• Motor: 230V tubular motor
• Controls: remote fobs as standard; key switch, rocker switch, keypad, Somfy io optional
• Safety: safety edge with obstruction detection (standard); internal manual override
• Security: Secured by Design; LPS 2081 Issue 1 SRA (internally face fixed)
• Warranty: 5 years on parts; up to 7 years on the motor
• Compliance: CE marked / UKCA compliant (where applicable)

Colours

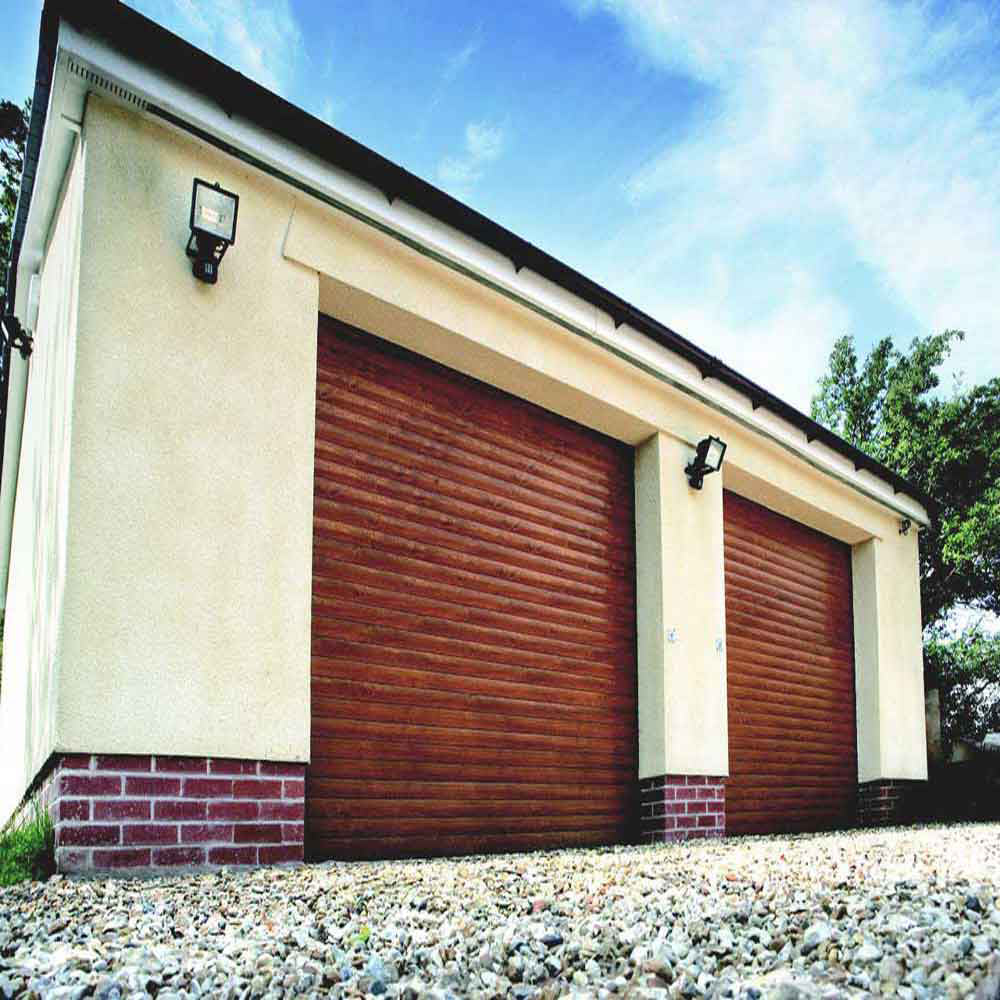

• 20 standard colours, including 4 woodgrains such as Golden Oak and Rosewood
• Box, guides and bottom slat can be powder coated in any RAL or BS colour

Controls

• Standard: remote control fobs
• Optional: wireless keypad, key switch, rocker switch, extra remotes
• Smart control with Somfy io (selected models)

Safety and power

• Safety edge (standard)
• Internal manual override (standard)

Headbox

• Box size depends on door height

Fitting

• Internal face fix (needed for Secured by Design and LPS 2081)
• External fit (possible, but not covered by the security certification)

• Slat Type: Extruded twin walled aluminium slats
• Slat Height: 78.5mm high
• Curtain Thickness: Approx. 14mm
• Weight: Approx. 9 kg/m²
• Maximum Width: Up to approx. 5500mm (height dependent)
• Maximum Height: Up to approx. 3500mm (width dependent)
• Guide Rails: Extruded aluminium channels with brush seals (75mm up to 4600mm W and 90mm above 4600mm W)
• Headroom: 300mm/350mm headroom requirement depending on door height/configuration
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Electric remote controlled door
• Emergency Operation: Internal manual override
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

Manufacture: 7–15 working days, with delivery arranged soon after.

Special colours: Depending on colour and finish. Contact us for current timelines.

Supply and fit: Up to 2–3 weeks, including site survey, manufacture and installation.

DIY fitting: the Original can be bought supply only, with measuring guidance. We recommend professional installation for the best performance and safety. To keep the security certification, fit it internally face fixed.

Prices from £1,220 for a 1000mm x 1000mm door

The final price depends on:

• Width and height of the opening
• Colour: standard, woodgrain or a special RAL/BS colour
• Controls: keypad, extra remotes, Somfy io
• Supply only or supply and fit

Which door is right for you? If you don't need certified security, the ECO77 costs less. If you need LPS 1175 SR1 forced-entry resistance, choose the SeceuroGlide Excel.
