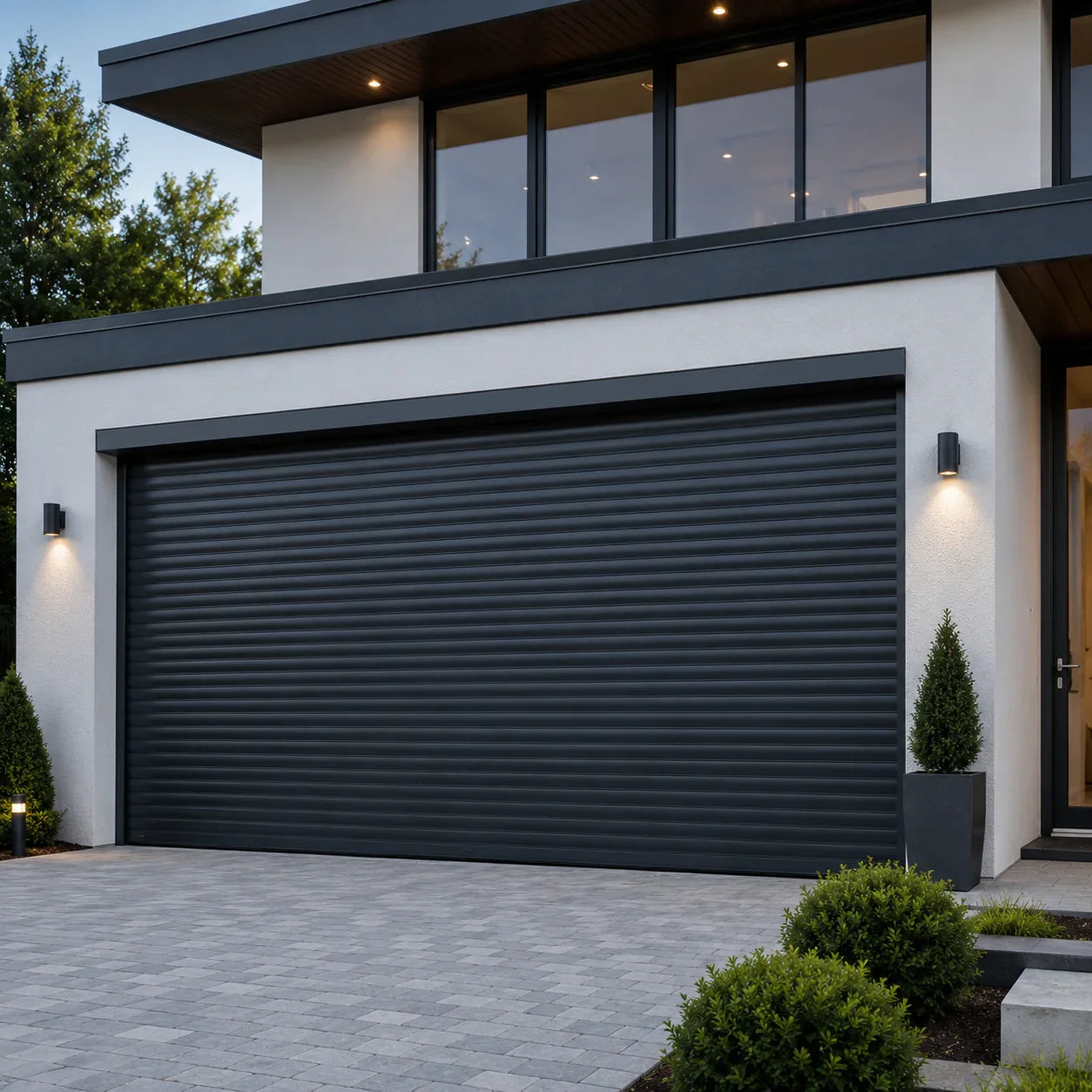

Insulated Domestic Roller Shutter

Insulated Aluminium Construction

Double skinned slats with insulating core improve thermal efficiency and comfort

Thermal & Acoustic Performance

Helps retain heat and reduce external noise for quieter, more efficient spaces

Ideal for Doors, Windows & Garages

Perfect for residential applications requiring heat or sound insulation

Manual or Electric Operation Available

Choose manual for simplicity or electric for convenience and frequent use

Compact & Neat Design

Fits neatly above openings while maintaining a clean, modern appearance

Made to Measure Design

Custom built to suit your exact opening for a precise and secure fit

Wide Range of Colour Options

Available in standard colours or full RAL/BS range to match your property

Low Maintenance

Aluminium construction resists corrosion, reducing ongoing upkeep

Internal & External Installation

Suitable for both internal and external domestic applications

Improved Comfort & Efficiency

Helps create warmer, quieter, and more controlled environments

The Insulated Aluminium Roller Shutter can be tailored to suit your domestic openings, insulation requirements, and aesthetic preferences. From operation type to finish, there are multiple configuration options available.

Slat Options

Insulated Double-Skinned Slats
Foam filled aluminium slats provide improved thermal efficiency and noise reduction, ideal for temperature controlled and quieter environments

Operation & Control Options

Manual Operation (Cost-Effective & Simple):

• Spring & Lock (Push-Up Operation) – Suitable for smaller shutters with simple manual use

Electric Operation (Convenience & Frequent Use):

• Hold to Run Switch – Press and hold for controlled opening and closing
• Key Switch Control – Secure operation for authorised users
• Remote Control (Fob Operation) – Open and close at the touch of a button
• Somfy IO Automation – Smart control with timers, group operation, and integration with automation systems

Colour & Finish Options

• Standard Finish: The curtain comes in a range of 21 Standard Colours, including 4 Woodgrain finishes.
• Full Custom Powder Coating: The Box and Guides can be powder coated any RAL or BS colour (subject to lead time and cost)

This flexibility allows the domestic insulated shutter to be configured for everything from energy efficient residential installations, improving comfort, reducing noise, and maintaining a clean, professional finish.

• Slat Type: Extruded twin walled aluminium slats
• Slat Height: 40mm or 77mm high
• Curtain Thickness: Approx. 14mm
• Weight: Approx. 9 kg/m²
• Maximum Width: Up to approx. 6000mm (height dependent)
• Maximum Height: Up to approx. 5000mm (width dependent)
• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Manual (spring & lock, crank) or electric motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control, smart automation (Somfy IO)
• Finish: Powder coated aluminium (standard RAL 9016, RAL1015, RAL8014 and RL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the Domestic Insulated Roller Shutter. Typical manufacturing time is 7–10 working days, with delivery usually arranged within a few days of completion. Please note, non-standard or custom colours may extend lead times to approximately 5 weeks, depending on powder coating requirements. This makes the compact aluminium shutter a strong option for projects with defined timelines.

For supply and installation projects, the full process typically takes 3–4 weeks. This includes an initial site survey to confirm sizes and requirements, followed by manufacture and scheduling of installation. While this shutter is more robust than lightweight systems, it can still be suitable for supply only installation in the right circumstances. Our team will provide guidance to ensure accurate measurements and a smooth installation process.

The RA77 Insulated Aluminium Roller Shutter is a mid to high range solution, designed for applications where thermal efficiency, noise reduction, and security are important.

Indicative Pricing (Guide Only)

Small (up to 1.5m x 1.5m)

• Supply Only – £600 – £1,200
• Supply & Install – £1,200 – £2,200

Medium (up to 2.5m x 2.5m)

• Supply Only – £1,000 – £2,200
• Supply & Installation – £1,800 – £3,800

Large (up to 4m x 4m)

• Supply Only – £2,000 – £4,500
• Supply & Install – £3,500 – £5,500

What Affects the Price?

• Insulated Slat Design – Foam-filled slats increase cost vs standard aluminium
• Operation Type – Manual is lower cost; electric adds convenience and cost
• Size of Opening – Larger shutters require more material and stronger motors
• Colour Finish – Standard colours are more cost-effective; custom RAL/BS adds cost
• Control Options – Remote controls and smart automation (Somfy IO) increase price
• Installation Complexity – Access, height, and site conditions impact installation cost

Budget Guidance

• A step up from standard aluminium shutters, offering improved comfort and efficiency
• Ideal for homes, cafés, kitchens, and commercial environments where insulation matters
• Electric operation is recommended for frequent use and ease of operation

  All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, application details, and operation preferences.
