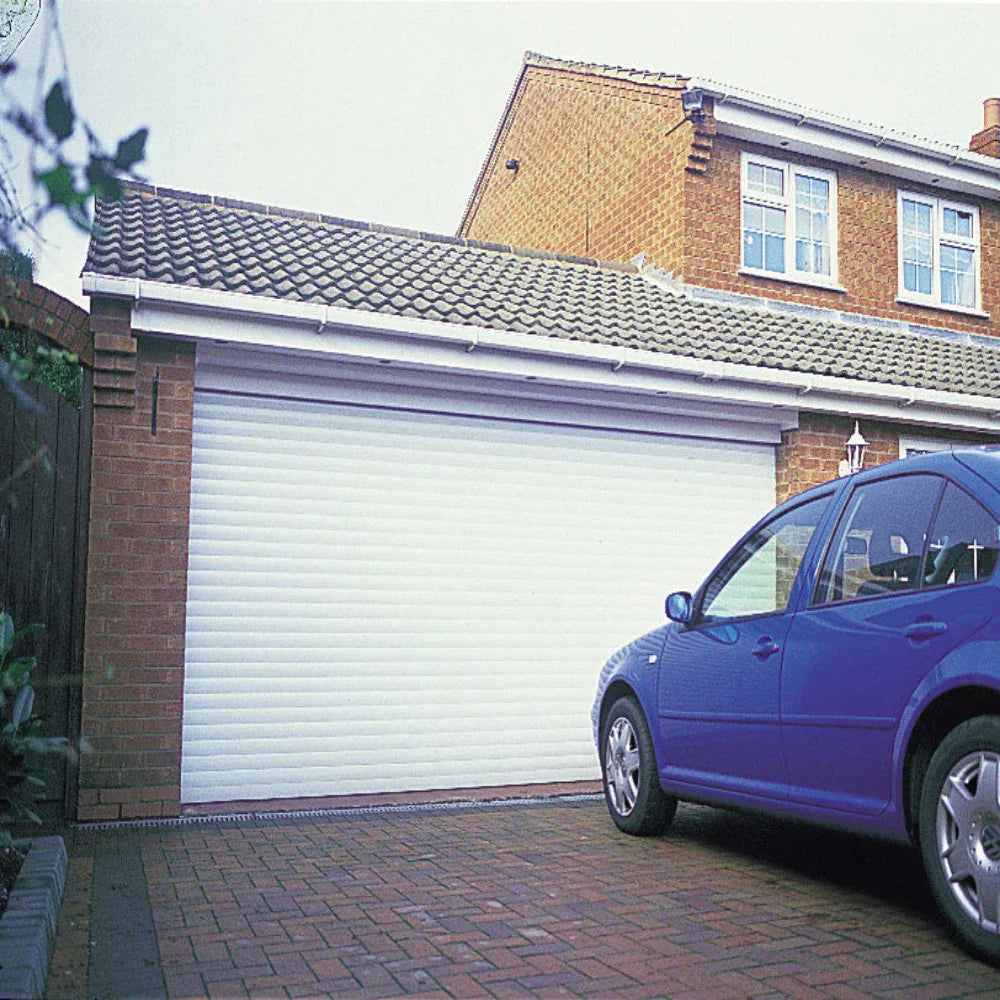

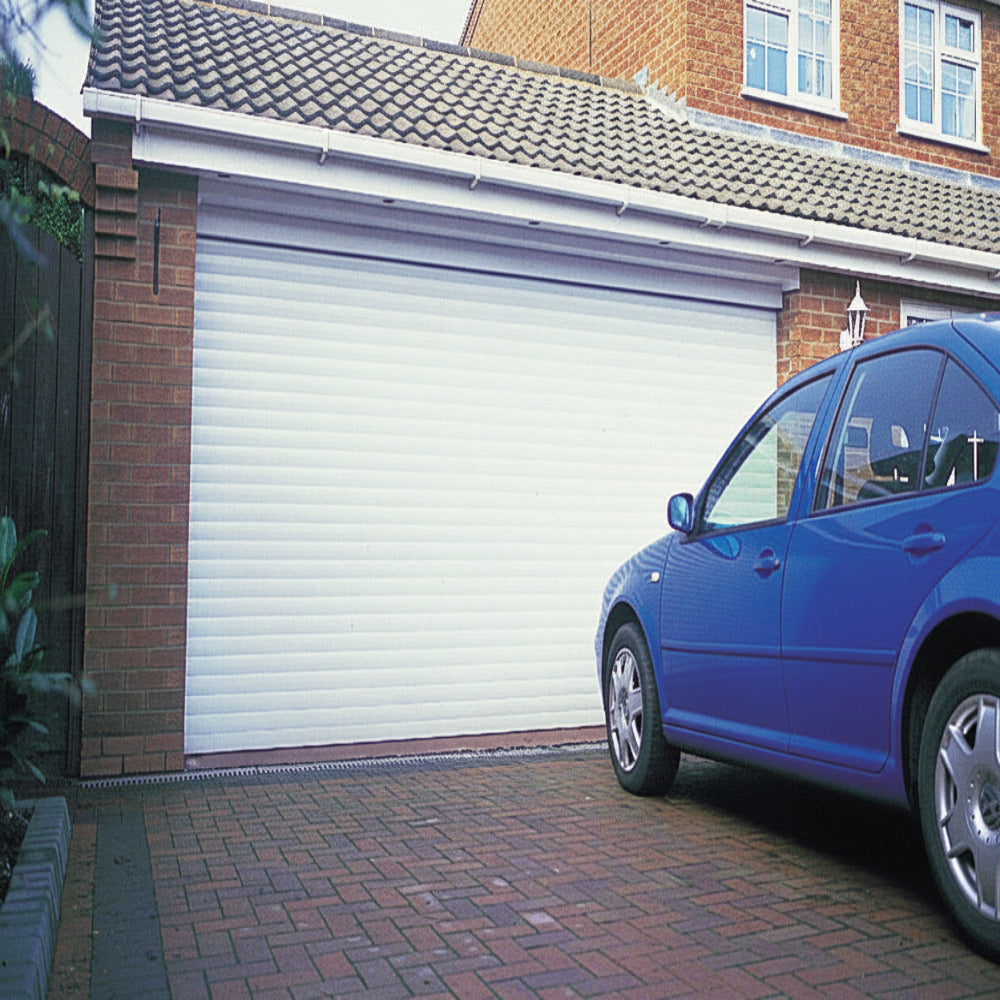

ECO77 Roller Garage Door

Insulated Aluminium Construction

Double skinned 77mm slats with an insulating core for enhanced strength and thermal efficiency

Improved Thermal & Acoustic Performance

Helps retain heat and reduce noise, ideal for larger garage spaces

Ideal for Residential Garages

Perfect for single garages and smaller openings in domestic properties

Electric Operation (Standard)

Remote control operation for convenient, effortless daily use

Stronger & More Rigid Design

Larger slat profile increases durability and reduces curtain deflection

Made to Measure Design

Custom-built to suit your exact opening for a precise and secure fit

Range of Colour Options

Available in standard colours with optional RAL upgrades to match your home

Low Maintenance Construction

Durable aluminium resists corrosion and minimises ongoing upkeep

Internal & External Installation

Suitable for both internal and external fitting depending on your garage layout

Improved Comfort & Efficiency

Creates a warmer, quieter, and more controlled garage environment

The ECO77 Roller Garage Door is designed to offer practical flexibility while maintaining a cost effective and straightforward specification. While more streamlined than premium systems, there are still key options available to tailor the door to your garage, usage requirements, and property style.

Slat Options

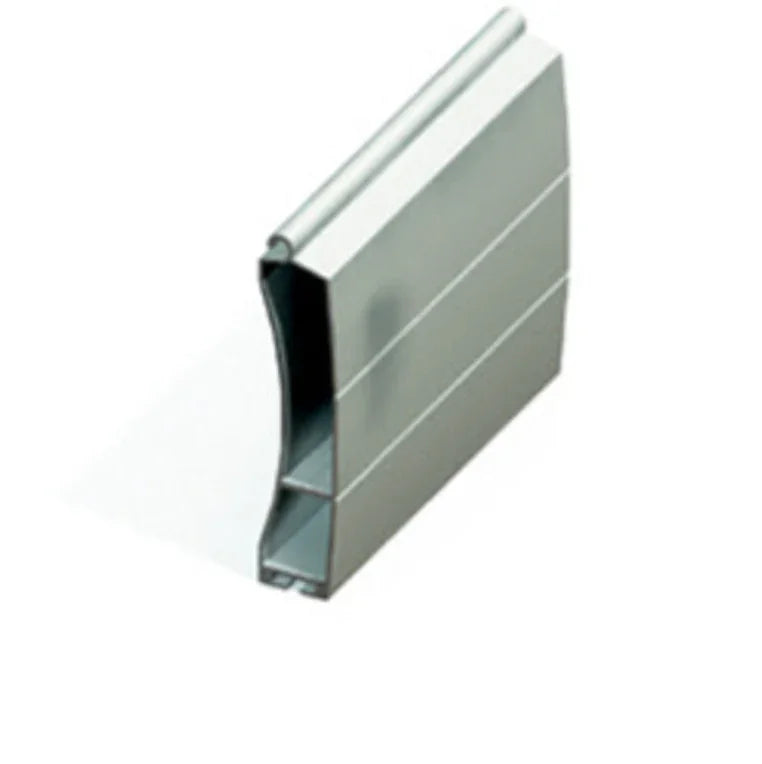

• 77mm Insulated Aluminium Slats (Standard)
  Double skinned, foam filled aluminium slats
  Provides improved thermal efficiency and noise reduction
  Ideal for residential garages requiring comfort and insulation

Operation & Control Options

• Electric Operation (Standard):
  Remote Control (Fob Operation) – Open and close at the touch of a button
• Internal Wall Switch – Simple and reliable control from the garage

Optional Upgrades:

• Wireless keypads for secure external access
• Additional remotes for multiple users

Colour & Finish Options

• Standard Colours:

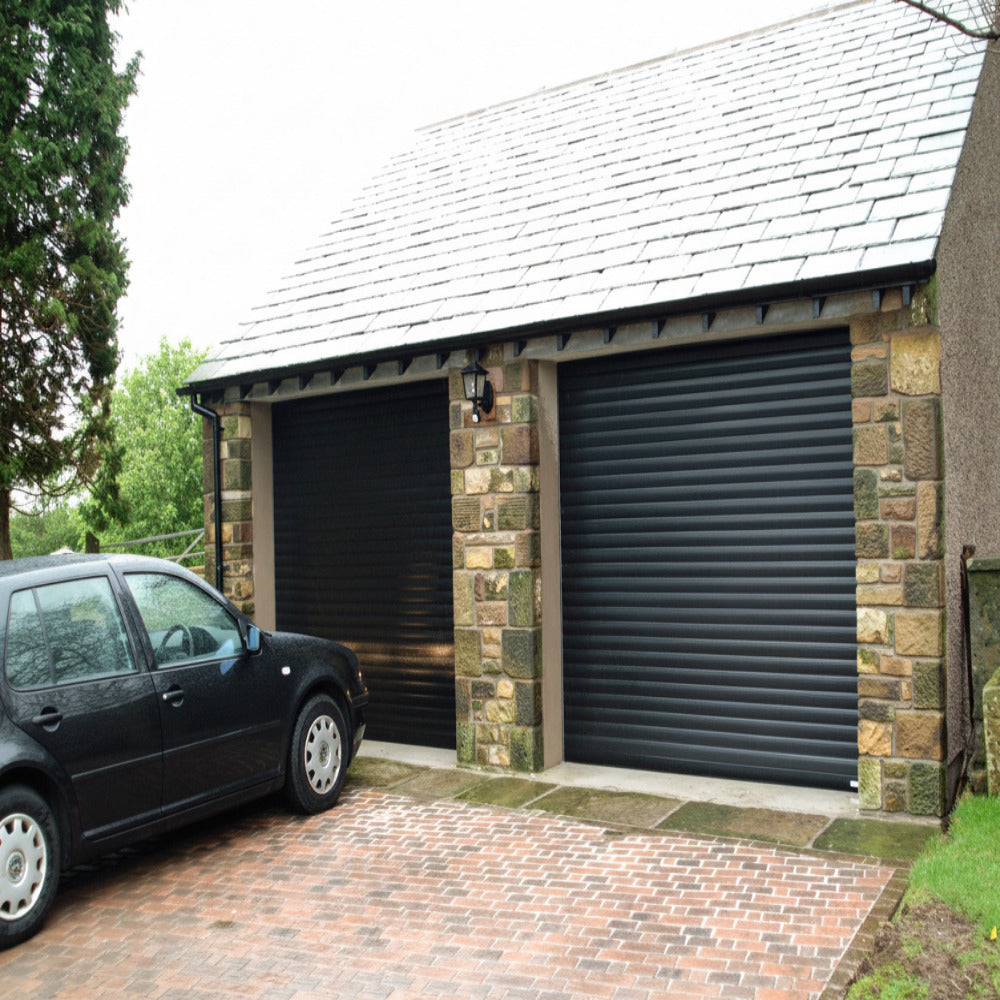

  Available in a range of popular colours including White, Black, Anthracite Grey and Brown
• Optional Finishes:
  Woodgrain finishes for a more traditional appearance
• Full RAL/BS powder coating available on request for colour matching

Size & Installation Options

Made to Measure Design:
Manufactured to suit your exact garage opening for a precise fit

Installation Options:

• Internal fitting – Maximises external appearance
• External fitting – Suitable where internal space is limited

Additional Considerations

• Designed as an economical solution, so options are focused on simplicity and reliability
• Ideal for homeowners looking for a balance between performance, insulation, and value

This configuration ensures the ECO77 delivers dependable operation, improved comfort, and a clean finish, while keeping the system affordable and easy to use

• Slat Type: Extruded twin walled aluminium slats
• Slat Height: 55mm high
• Curtain Thickness: Approx. 9mm
• Weight: Approx. 5 kg/m²
• Maximum Width: Up to approx. 3000mm (Overall Width)
• Maximum Height: Up to approx. 2400mm (Overall Height)

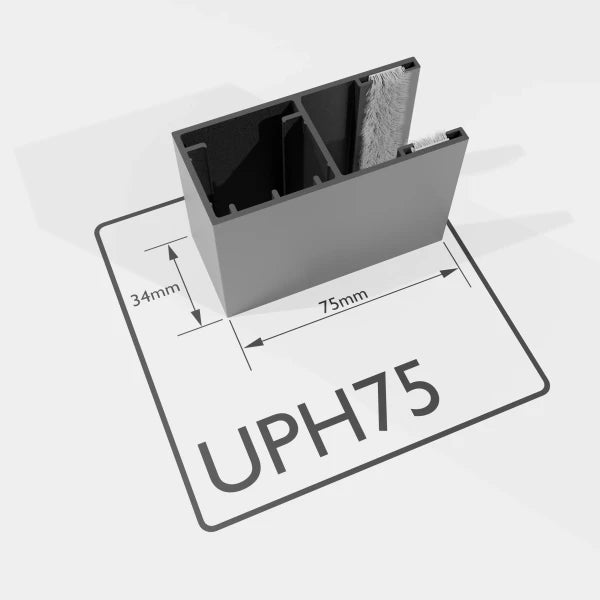

• Guide Rails: Extruded aluminium channels with brush seals
• Bottom Rail: Reinforced aluminium bottom rail with optional locks
• Operation Types: Teleco or Somfy motor operation
• Motor Options: Tubular motors (230V)
• Control Options: Key switch, rocker switch, remote control
• Finish: Powder coated aluminium (standard RAL 9016, RAL7016, and RAL9005 or wide range of RAL/BS colours)
• Compliance: CE Marked / UKCA compliant (where applicable)
• Safety Options: Manual override, safety brake, obstacle detection, safety edge (electric shutters)

We aim to keep lead times as efficient as possible for the ECO55 Roller Garage Door. Typical manufacturing time is 7–10 working days, with delivery usually arranged shortly after completion. Please note, non-standard or custom colour finishes may extend lead times to approximately 3–5 weeks, depending on powder coating requirements. This makes the ECO55 an excellent option for projects requiring a quick turnaround.

The ECO55 is particularly well suited to supply-only and DIY installation projects due to its manageable size and simplified design. Full installation instructions and guidance can be provided to ensure accurate measurements and a smooth fitting process. For customers opting for supply and installation, the overall timeframe is typically 2–3 weeks, including site survey, manufacture, and installation scheduling.

The ECO77 Roller Garage Door is designed as a cost effective solution, making it one of the most affordable insulated roller garage doors available. Pricing will vary depending on size, finish, and optional upgrades, but the guide below provides a useful indication.

Supply Only Prices (DIY Installation)

• Single Garage (up to 2.5m wide): £750 – £1,100
• Large Single / Small Double (2.5m – 3.5m): £1,000 – £1,500
• Double Garage (3.5m – 5.0m): £1,400 – £2,200

Supply & Installation Prices

• Single Garage: £1,200 – £1,800
• Large Single / Small Double: £1,600 – £2,400
• Double Garage: £2,200 – £3,200

What Affects the Price?

Several factors can influence the final cost:

• Size of the opening (width and height)
• Colour choice (standard vs custom RAL or woodgrain finishes)
• Control upgrades (additional remotes, wireless keypads)
• Installation complexity (access, structural work, electrics)

Optional Extras

• Wireless keypads: £150 – £300
• Additional remote fobs: £30 – £60 each
• Full RAL powder coating: +10–20%
• Woodgrain finishes: +15–25%

Budget Summary

• The ECO77 is ideal for homeowners looking for:A budget-friendly insulated garage door
• A DIY friendly installation option

A reliable electric roller door without premium cost
All prices are indicative and based on typical installations. For an accurate quotation, we recommend providing sizes, application details, and operation preferences.
