Galebreaker Roller Screens

Weather Protection Without Compromising Ventilation

Galebreaker Agricultural Roller Screens provide an effective barrier against wind, rain, and drafts while maintaining natural airflow, helping to improve livestock health, reduce condensation, and keep bedding dry.

Designed for Agricultural Environments

Purpose-built for farms, these roller screens are ideal for livestock buildings, grain stores, machinery sheds, and equestrian facilities, where ventilation and protection must work together.

Flexible Curtain Options

Available with high-performance mesh, standard mesh, solid PVC, or combined panels, allowing you to tailor the balance between airflow, light, and weather protection.

Fast & Efficient Operation

Choose from manual or electric operation:

• Manual systems open at approximately 2 seconds per metre
• Electric systems open at 7–9 seconds per metre for rapid access

Heavy-Duty, Wind-Resistant Design

Constructed using high-tensile PVC fabrics, reinforced wind locks, and steel wind bars, ensuring stability and performance even in exposed, high-wind locations.

Suitable for Small to Large Openings

Custom-made to suit your building:

• Standard models up to approx. 6m x 4m
• Heavy-duty systems up to 10m x 10m

Internal or External Installation

Can be fitted either inside or outside the building structure, with galvanised steel head cowlings to protect the mechanism from the elements.

Quick Access for Vehicles & Livestock

Ideal for busy farms, allowing easy access for tractors, loaders, and livestock movement without delays.

Simple Installation & Low Maintenance

Supplied as a complete kit for easy installation on steel or timber buildings. Components are designed for long service life with minimal upkeep.

Modular & Replaceable Components

Fabric sections and components can be easily replaced if damaged, reducing long-term costs and downtime.

Built for Long-Term Reliability

Tested for thousands of operating cycles and backed by a 10-year manufacturer’s warranty for peace of mind.

Versatile Solution for Modern Farming

Combines ventilation, protection, and ease of use, making it a practical alternative to traditional agricultural doors.

The Galebreaker Agricultural Roller Screens are designed as a fully configurable system, allowing you to tailor the door to suit your building type, environmental conditions, and daily operational needs. From material selection to operation type, each element can be specified to achieve the right balance of ventilation, protection, and usability.

Model Options

Standard Duty Systems:

• Suitable for medium-sized openings (typically up to ~6m W x 4m H)
• Ideal for livestock housing, feed stores, and general farm buildings
• Cost-effective solution for sheltered or moderate environments

Heavy-Duty Systems:

• Designed for larger openings and exposed locations
• Capable of covering up to 10m x 10m openings
• Reinforced with wind-lock systems and wind bars for high wind resistance
• Ideal for grain stores, machinery sheds, and high-exposure buildings

Operation Options

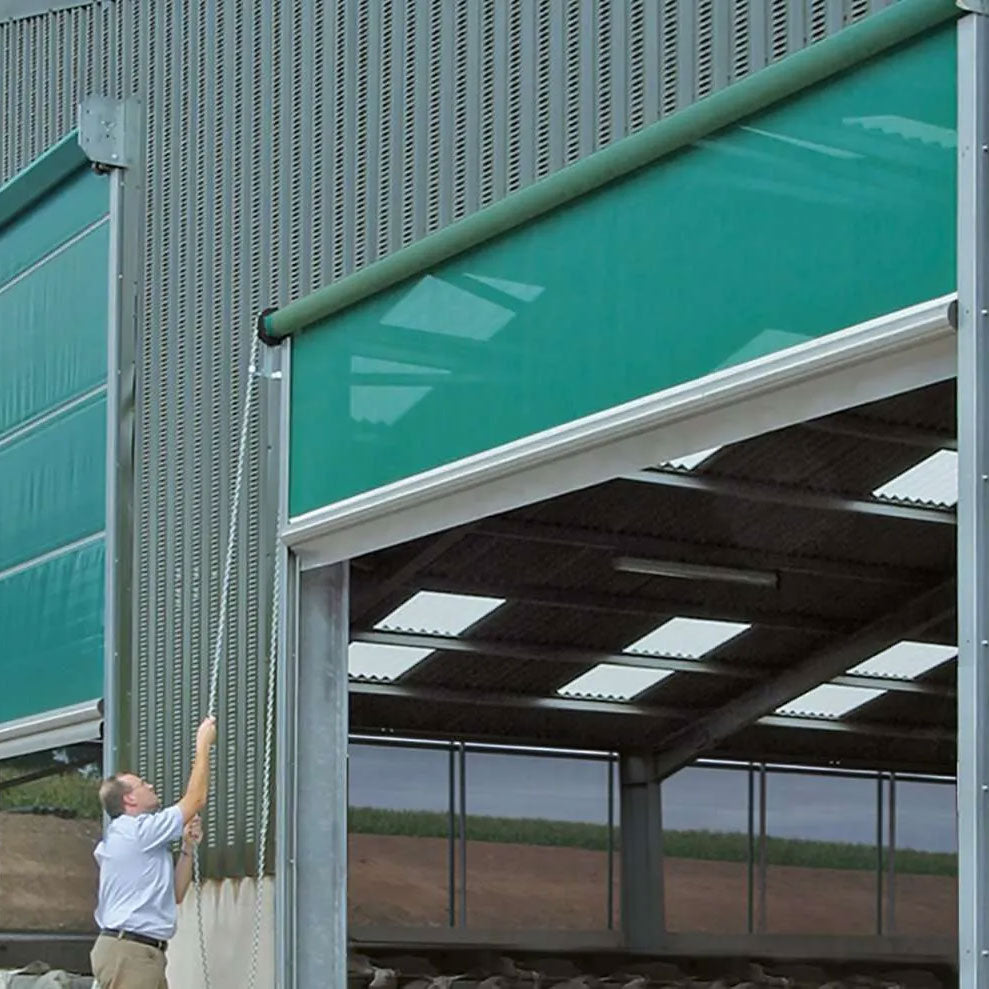

Manual Operation:

• Spring-assisted system with chain or rope operation
• Fast opening speed (~2 seconds per metre)
• Reliable and cost-effective with no electrical requirements

Electric Operation:

• Motorised system with push-button control
• Opening speed ~7–9 seconds per metre
• Suitable for frequent use and high-traffic areas
• Includes safety brake and optional advanced controls (e.g. remote operation)

Curtain Material Options

A wide range of curtain materials allows you to customise airflow and protection:

Standard Mesh (~25% airflow):

• Balanced ventilation and weather protection
• Most popular option for general livestock environments

High-Performance Mesh (~10% airflow):

• Increased protection from wind and rain
• Ideal for exposed locations or sensitive livestock

Solid PVC Curtain:

• Maximum weather protection
• Suitable for grain stores or areas requiring full enclosure

Combination Curtains:

• Mix of mesh and solid panels
• Example: mesh top for airflow + solid bottom for rain protection

Clear / Translucent Panels (Optional):

• Allows natural light into the building
• Useful for darker internal spaces

Size & Configuration

• Made to measure for each application
• Suitable for small doorways through to large agricultural openings
• Adjustable tensioning system ensures a tight, secure fitIncludes flexible bottom flap (~140mm) to accommodate uneven floors

Installation Options

• Can be installed internally or externally
• Suitable for steel or timber framed buildings
• Supplied with galvanised steel head cowling (UK) for weather protection
• Designed for quick, straightforward installation

Wind Protection Features

• Nylon wind-lock system to secure curtain within guides
• Steel wind bars for additional reinforcement
• Prevents curtain movement and damage in high winds

Colour & Finish Options

• Wide range of fabric colours available
• Customisation to match building or branding
• Durable, UV-resistant materials designed for outdoor use

Maintenance & Replaceability

• Modular design allows individual fabric sections to be replaced
• Easy access to components for maintenance
• Designed for long-term, low-maintenance operation

Application Flexibility

Suitable for:

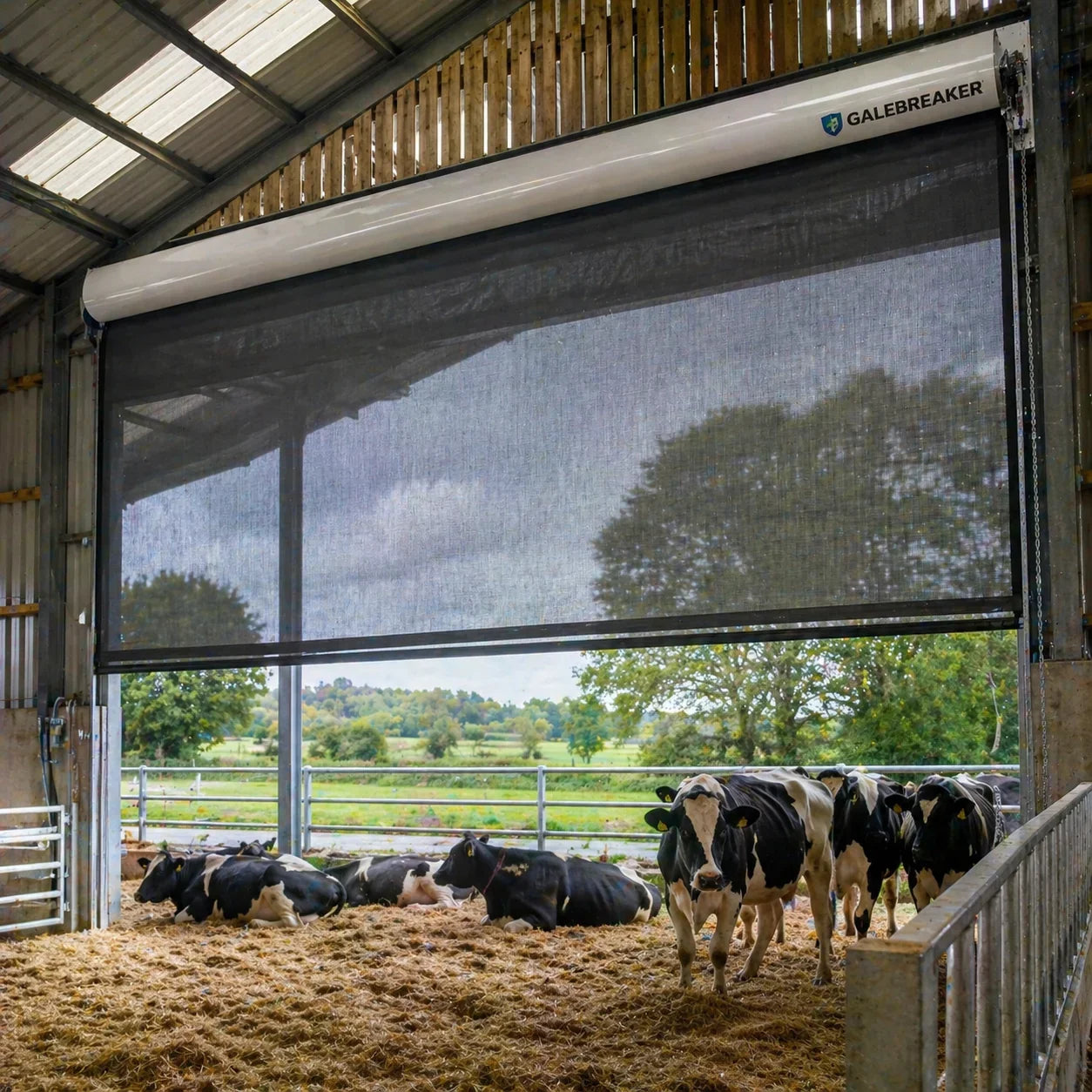

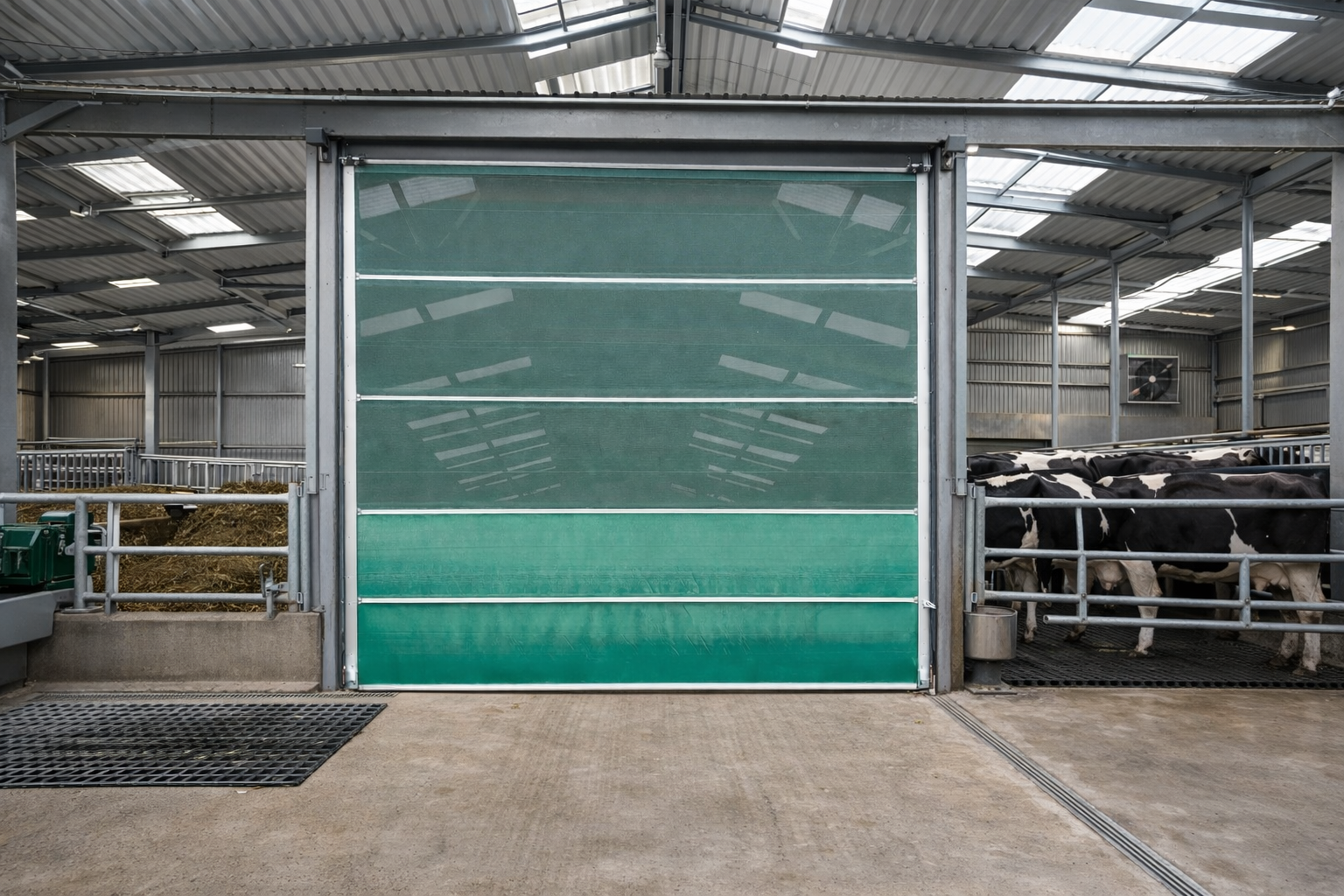

• Livestock barns and dairy units
• Grain and crop storage buildings
• Machinery and equipment sheds
• Equestrian facilities and riding arenas

These design and customisation options make the Galebreaker system a highly adaptable solution, allowing farmers to create a bespoke roller screen door that delivers the ideal combination of ventilation, protection, and operational efficiency.

Product Type:

• Agricultural fabric roller screen door system

Application:

• Designed for livestock buildings, machinery sheds, grain stores, and agricultural structures
• Suitable for internal or external installation

Sizes & Coverage

• Standard Duty:Up to approx. 6m (W) x 4m (H)

Heavy-Duty:

• Up to approx. 10m (W) x 10m (H) (max area ~55m²)

Configuration:

• Made to measure to suit specific openings
• Adjustable tensioning system for a secure fit
• Curtain Materials
• PVC-Coated Polyester Fabric

High tensile strength:

• 3–5 tonnes per metreTear-resistant, rot-proof, and UV-stable

Material Options:

• Standard mesh (~25% airflow)
• High-performance mesh (~10% airflow)
• Solid PVC curtain
• Combination panels (mesh + solid)
• Optional clear/translucent sections

Operation

Manual Operation:

• Spring-assisted system
• Chain or rope operation
• Opening speed: approx. 2 seconds per metre

Electric Operation:

• Motorised drive system
• Opening speed: approx. 7–9 seconds per metre

Includes:

• Hold-to-run control
• Automatic safety brake
• Emergency manual override

Wind Resistance & Reinforcement

• Nylon wind-lock system
• Steel wind bars integrated into curtain
• Designed to withstand high wind conditions
• Maintains curtain stability and prevents disengagement

Structural Components

Guide Rails:

• Heavy-duty side guides for curtain tracking

Headbox / Cowling:

• Galvanised steel cowling (UK)Protects rolled curtain and mechanism from weather

Bottom Edge:

• Flexible ~140mm bottom flap
• Allows sealing on uneven ground

Installation

• Suitable for steel or timber framed buildings

Can be installed:

• Internally or
• Externally
• Supplied as a complete kit system
• Bolt-on fixing system

Durability & Testing

• Tested for 10,000+ operational cycles (heavy-duty systems)
• Designed for frequent daily use in agricultural environments
• Corrosion-resistant components

Maintenance

• Low maintenance design

Periodic inspection of:

• Curtain condition
• Wind locks and guides
• Motor (if applicable)
• Replaceable fabric sections for cost-effective repairs

Environmental Performance

• Provides wind and rain protection
• Maintains controlled airflow and ventilation
• Reduces condensation and heat build-up

Warranty

• Supplied with a 10-year manufacturer’s warranty (subject to terms)

Compliance & Suitability

• Designed specifically for agricultural use

Suitable for environments requiring:

• Ventilation control
• Weather protection
• Frequent access

This technical specification highlights the Galebreaker system as a high-performance, durable, and adaptable agricultural door solution, engineered for demanding farm environments.

Lead Time

The Galebreaker Agricultural Roller Screens are manufactured to order, with a typical lead time of 3–4 weeks from order confirmation and final specification.

Lead times may vary slightly depending on:

• Size of opening (larger or heavy-duty systems)
• Selected configuration (manual or electric)
• Curtain material and customisation options

All lead times will be confirmed at quotation stage to align with your farm schedule and installation requirements.

Installation

The system is designed for straightforward on-site installation, making it suitable for both DIY fitting and professional installation.

• Supplied as a complete kit with all required components

Suitable for installation onto:

• Steel-framed buildings
• Timber-framed agricultural structures

Can be installed:

• Internally or
• Externally depending on building layout

Key Installation Benefits

• No heavy machinery required for installation
• Bolt-on track system for quick and secure fitting
• Typically installed within a few hours depending on size
• Adjustable tensioning system ensures a tight, secure fit

Installation Considerations

• Ensure structure is sound and capable of supporting the system
• Allow adequate space for headbox and curtain roll-up area
• Electrical connection required for motorised systems
• Accurate alignment of guides is essential for smooth operation

After Installation

• Curtain operates smoothly via manual or electric system
• Minimal maintenance required
• Individual components can be easily replaced if damaged

This combination of short manufacturing lead times and simple installation makes the Galebreaker system an efficient and practical solution for agricultural buildings requiring ventilation, protection, and ease of access.

The Galebreaker Agricultural Roller Screens are a made-to-measure solution, with pricing based on size, specification, and chosen options. As a guide, costs reflect the system’s durability, wind resistance, and custom configuration for agricultural environments.

Indicative Pricing

Small Openings (Up to 3m x 3m)

• Supply Only: £1,200 – £2,500 + VAT

Medium Openings (3m – 6m wide)

• Supply Only: £2,500 – £5,000 + VAT

Large Openings (6m – 10m wide)

• Supply Only: £5,000 – £10,000+ + VAT

Very Large / Heavy-Duty Installations (Up to 10m x 10m)

• Supply Only: £8,000 – £15,000+ + VAT

Operation Options

Manual Systems:

• Typically the most cost-effective option

Electric Systems:

• Add approximately £800 – £2,500+ depending on size and motor specification

Factors Affecting Price

• Opening Size (width & height)
• Standard vs Heavy-Duty system

Curtain material:

• Mesh (standard or high-performance)
• Solid PVC
• Combination panels

Wind resistance features (heavy-duty systems)

• Electric operation and controls
• Installation location (internal or external)

Installation Costs

DIY Installation:

• Designed to be installed on-site with no specialist equipment

Professional Installation (Optional):

• Typically £500 – £2,000+ depending on size and access

Additional Costs to Consider

• Electrical connection for motorised systems
• Access equipment (if required for large openings)
• Structural preparation (if required)
• Replacement or spare curtain panels (optional)

Budget Guidance

Small livestock buildings / sheds:

• £1,500 – £3,000 + VAT

Standard agricultural buildings:

• £3,000 – £6,000 + VAT

Large barns / machinery sheds:

• £6,000 – £12,000+ + VAT

Get an Accurate Quote

Due to the wide range of configurations, we recommend requesting a tailored quotation. This ensures the correct specification is selected to suit your building, balancing ventilation, protection, and budget.
