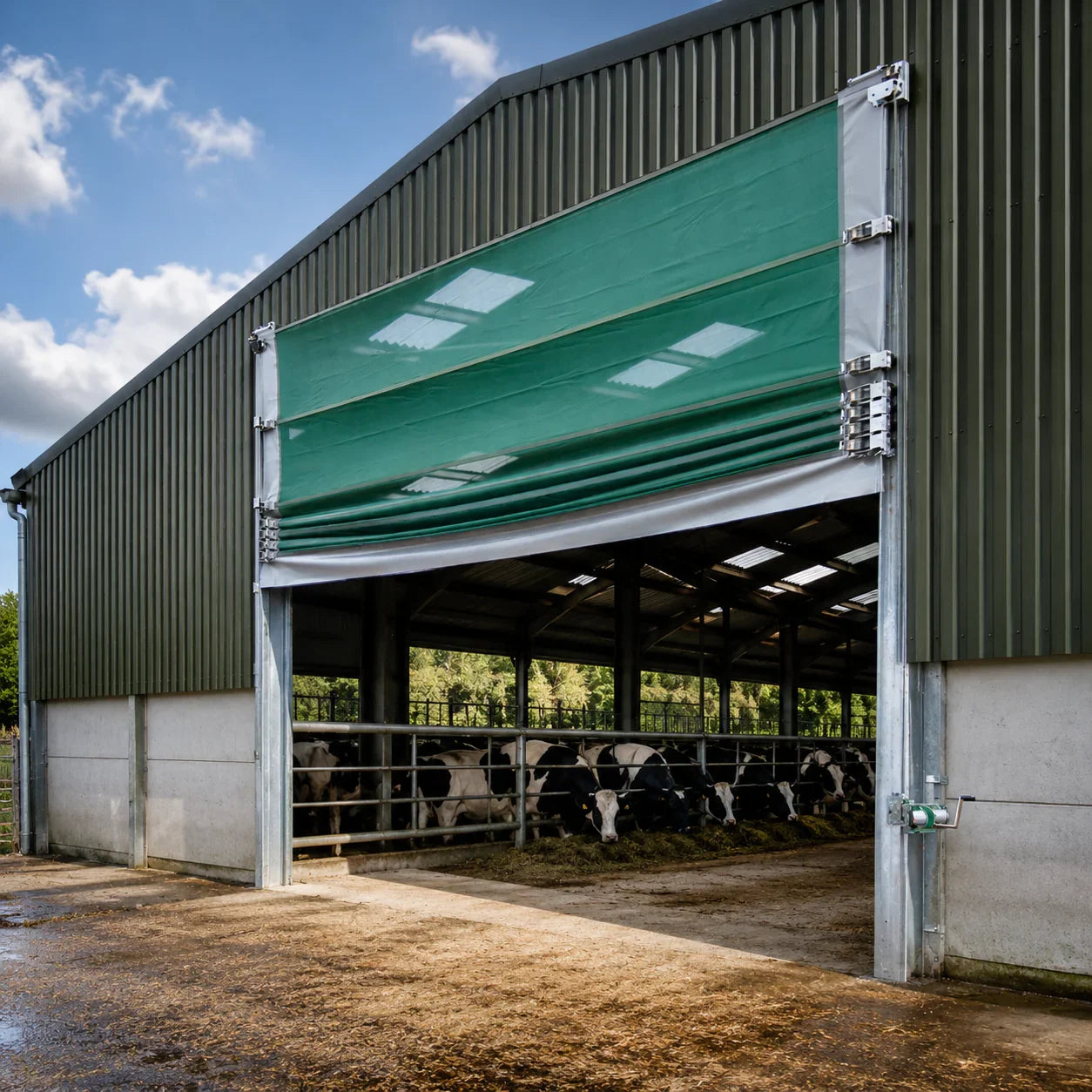

Galebreaker Folding Screens Doors

Full Width Access for Agricultural Buildings

Folding door design clears the entire opening, allowing unrestricted access for machinery, vehicles, and livestock

Ideal for Low Headroom Openings

Requires minimal space above the opening, making it perfect for barns with limited headroom or structural constraints

Weather Protection with Optional Ventilation

Provides a secure, weatherproof barrier while optional mesh panels maintain airflow for livestock health

Simple Manual Operation (Electric Upgrade Available)

Easy to operate by hand with rope or winch system, with optional motorised control for convenience

Compact Folding Design

Curtain folds neatly at the top, taking up only ~20% of the opening height when open

Durable Agricultural Grade Materials

Constructed from high-strength PVC fabric and galvanised steel components for long-term reliability

Flexible for Wide Openings

Suitable for openings up to 20m wide, with options for single or multiple door sections

Low Maintenance System

Fewer moving parts than traditional doors, resulting in reduced servicing and long-term costs

Custom-Made to Suit Your Building

Each door is manufactured to exact opening sizes, ensuring a precise fit and optimal performance

Versatile Agricultural Applications

Ideal for livestock buildings, grain stores, workshops, stables, and machinery sheds

Safe and Practical for Daily Use

Flexible curtain design reduces risk of damage and improves safety in busy farm environments

Cost Effective Alternative to Roller Shutters

Offers similar protection with simpler operation, better ventilation, and lower overall cost

The Galebreaker Agricultural Folding Screens are designed to be highly adaptable, allowing you to configure the system to suit different building types, opening sizes, and operational requirements. From curtain materials to operation type, each element can be tailored to deliver the right balance of access, protection, and ventilation.

Door Configuration Options

Single Folding Door:

• One-piece curtain folding upwards
• Ideal for standard single-bay openings

Multi-Section Doors:

• Multiple folding sections across wider openings
• Suitable for large barns or segmented bays
• Capable of covering openings up to 20m wide
• Can be adapted for irregular or non-standard openings

Operation Options

Manual Operation (Standard):

• Rope pull or winch system
• Simple, reliable, and cost-effective
• Suitable for most agricultural applications

Electric Operation (Optional):

• Motorised system (single-phase or three-phase)
• Push-button or remote control operation
• Ideal for large doors or frequent use

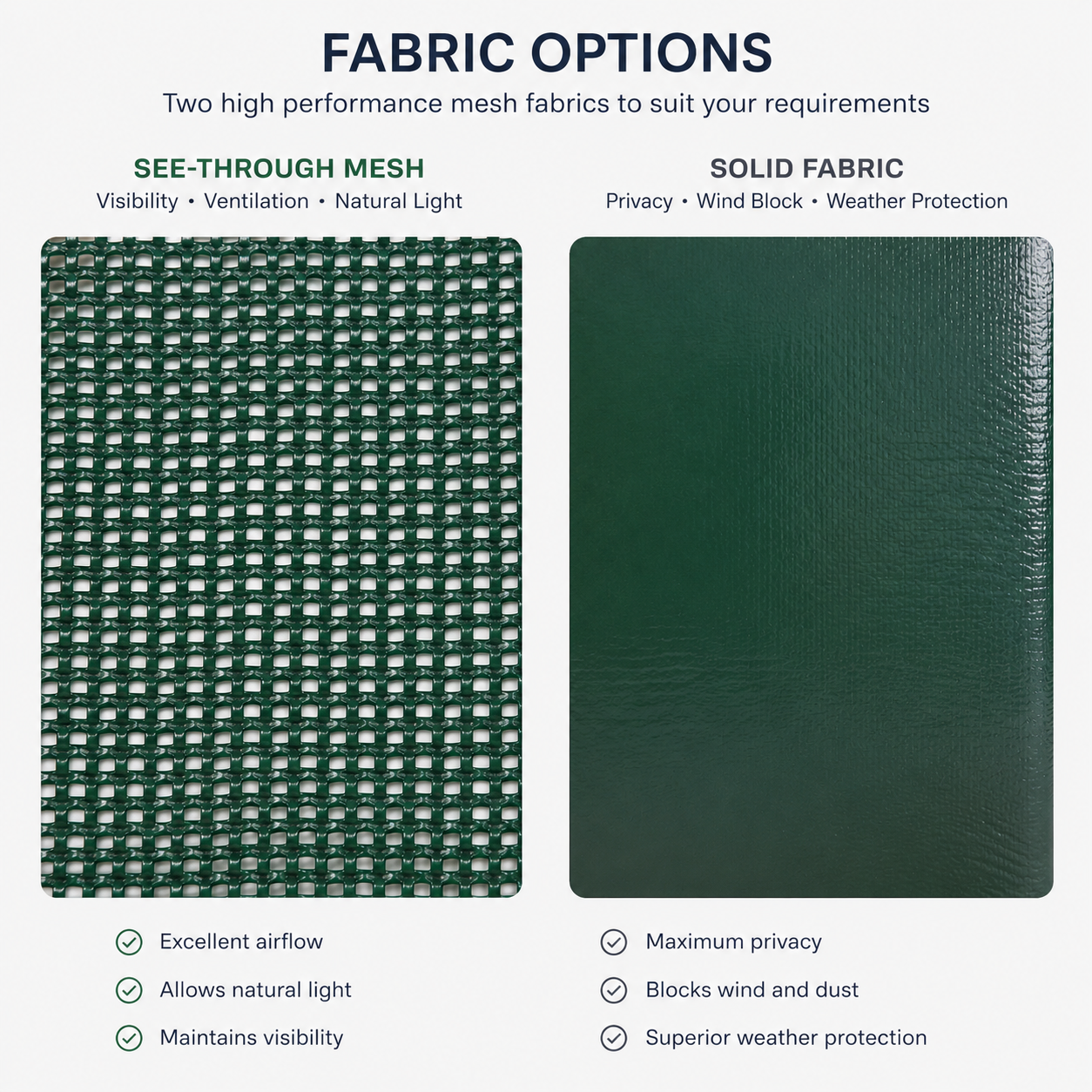

Curtain Material Options

Solid PVC Curtain (Standard):

• Fully waterproof and wind-resistant
• Ideal for grain stores, machinery sheds, and weather-exposed buildings

Mesh or Vented Panels (Optional):

• Allows airflow while maintaining protection
• Suitable for livestock housing and stables

Combination Curtains:

• Solid lower section + mesh upper section
• Balances weather protection and ventilation

Size & Fit

• Made to measure for each installation

Suitable for:

• Small barn openings
• Large agricultural buildings up to 20m wide

Designed to work with:

• Steel-framed structures
• Timber-framed buildings
• Existing columns or support posts

Track & Mounting Options

• Mounted directly onto existing building structure

Options include:

• Side guide rails
• Column-mounted systems
• Minimal headroom required
• No need for bulky overhead drums or tracks

Weather Protection Features

• Full-height curtain coverage when closed

Tight sealing at:

• Sides
• Bottom edge

Optional top pelmet / hood cover:

• Protects folded curtain
• Improves weather resistance

Colour & Finish Options

Standard colours typically include:

• Green (most common for agricultural use)

Optional colours:

• Grey
• Black
• Other finishes depending on specification

Safety & Security Options

• Manual locking systems or padlockable options

Optional motor safety features (for electric systems):

• Limit switches
• Obstacle detection
• Flexible curtain reduces risk of damage on impact

Installation Options

• Supplied as a complete self-fit kit

Suitable for:

DIY installation

• Professional installation
• Designed to bolt directly onto existing structures
• Minimal structural modification required

Maintenance & Replaceability

• Modular curtain design allows panel replacement
• Easy access to components for maintenance
• Low-maintenance system with minimal moving parts

Application Flexibility

Suitable for:

• Livestock buildings
• Grain and feed stores
• Machinery sheds and workshops
• Stables and equestrian buildings
• Narrow or low-headroom openings

Design Summary

The system is built around:

• Maximum access and usability
• Minimal structural requirements
• Flexible ventilation and protection options
• Durable, low-maintenance performance

These design and customisation options make the Galebreaker Folding Screens a versatile and practical solution, delivering full access, reliable protection, and adaptability for modern agricultural buildings.

Product Type:

• Agricultural folding fabric door system

Application:

• Designed for livestock buildings, grain stores, machinery sheds, workshops, and stables
• Suitable for internal or external installation

Sizes & Coverage

Maximum Width:

• Up to approx. 20m

Maximum Height:

• Typically up to 6m (subject to structure and specification)

Configuration:

• Single panel or multi-section folding doors
• Made to measure to suit individual openings

Curtain Materials

• Fabric Type: PVC-coated polyester

Material Properties:

• 100% waterproof
• High tensile strength
• Tear-resistant
• UV-stabilised
• Rot-proof
• Flame-retardant (where specified)

Curtain Options:

• Solid PVC curtain (standard)
• Mesh or vented panels (optional)
• Combination curtain (solid + mesh sections)

Operation

Manual Operation (Standard):

• Rope or winch-operated system
• Lightweight folding mechanism for easy use

Electric Operation (Optional):

• Motorised system (single-phase or three-phase)
• Push-button or remote control operation
• Includes limit switches and safety features

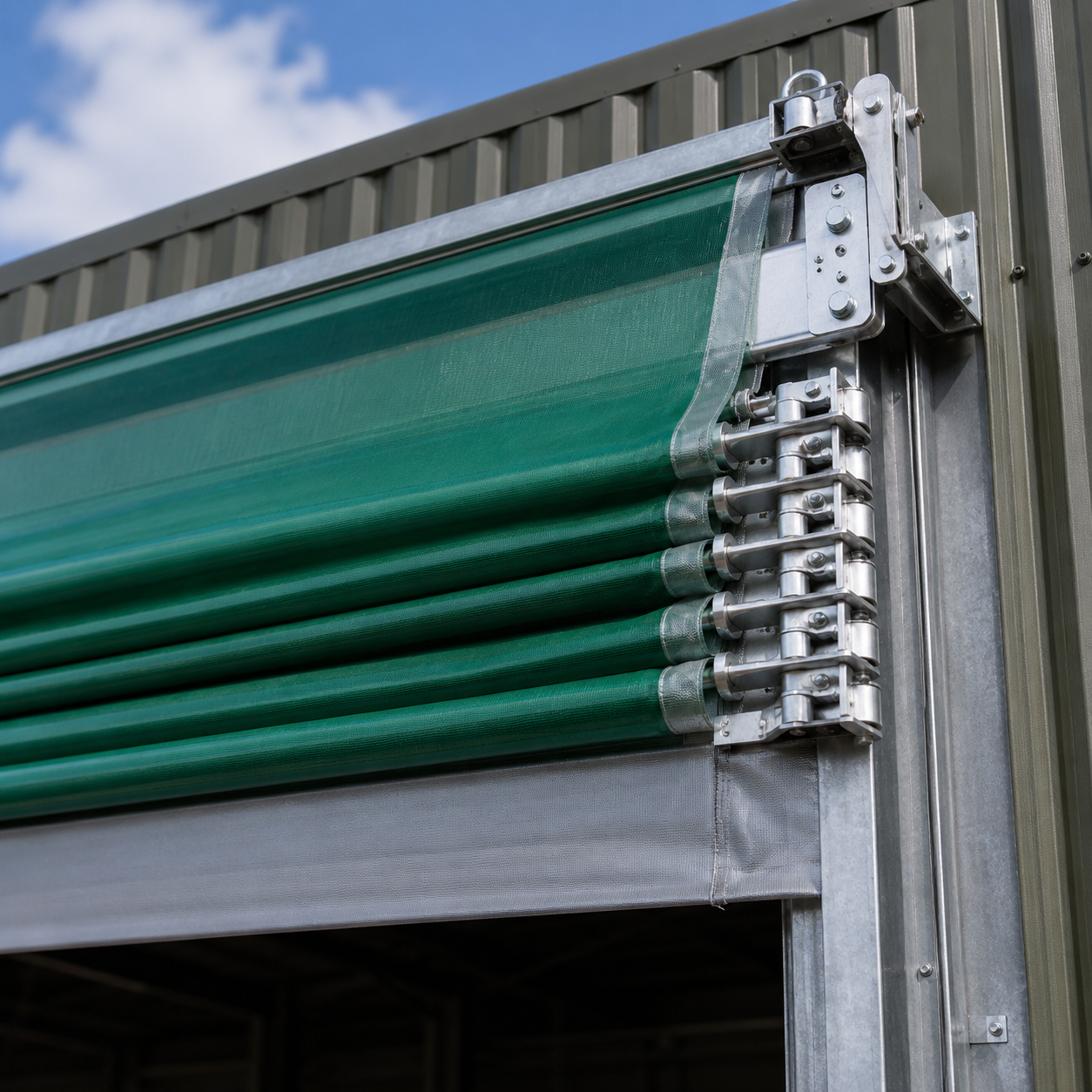

Opening Mechanism

• Vertical folding (concertina) action
• Curtain folds and stacks at top of opening
• Occupies approx. 20% of opening height when open
• No overhead barrel or bulky drum required

Guide System

• Side-mounted guide rails or column-mounted system
• Ensures smooth and controlled operation
• Keeps curtain aligned during opening and closing

Wind Resistance & Stability

• Flexible curtain design reduces wind load
• Designed to perform in exposed agricultural environments
• Tensioned system maintains stability in operation

Weather Protection

• Full-height and full-width coverage when closed

Provides protection against:

• Wind
• Rain
• Snow
• Dust and debris
• Tight sealing at sides and bottom
• Optional top pelmet/hood for additional protection

Ventilation Performance

• Optional mesh panels allow controlled airflow
• Reduces condensation, humidity, and heat build-up
• Suitable for livestock welfare applications

Structural Components

Guide Rails & Brackets:

• Galvanised or stainless steel

Fixings:

• Heavy-duty corrosion-resistant components

Pelmet / Hood (Optional):

• Protects folded curtain
• Installation
• Designed for self-fit installation

Suitable for:

• Steel-framed buildings
• Timber-framed structures

Supplied as a complete kit including:

Curtain

• Guide system
• Fixings and brackets
• Operating mechanism

Durability & Performance

• Designed for long-term agricultural use
• Resistant to weathering, UV exposure, and moisture
• Flexible design reduces risk of impact damage

Maintenance

• Low maintenance system

Periodic inspection of:

• Curtain condition

Guide rails and fixings

• Operation system (manual or motorised)
• Easy cleaning with water or pressure washer

Safety & Compliance

• Designed in line with EN 13241 (industrial door standard)
• Safe operation with minimal mechanical risk
• Optional safety features for electric systems

Warranty

• Typically supplied with a 10-year manufacturer’s warranty (subject to terms)

Application Suitability

• Livestock housing and barns
• Grain and feed storage buildings
• Machinery and equipment sheds
• Workshops and garages
• Equestrian facilities

This technical specification outlines a durable, low-maintenance, and highly adaptable folding door system, engineered to deliver full access, weather protection, and ventilation in demanding agricultural environments.

The Galebreaker Agricultural Folding Screens are manufactured to order, ensuring each system is tailored to your exact opening size and specification.

Standard Lead Time

Typical manufacture time:

• 3–5 weeks from order confirmation

Lead Time Considerations

Lead times may vary depending on:

• Overall size of the door (larger or multi-section systems)
• Curtain specification (solid, mesh, or combination panels)
• Manual or electric operation
• Project complexity and quantity

Custom finishes or motorised options may slightly extend the lead time.

Delivery & Scheduling

• Delivered as a complete kit ready for installation
• Lead times confirmed at quotation stage to align with your build schedule
• Suitable for both planned projects and retrofit installations

This lead time ensures each folding screen is precision manufactured for durability, performance, and a perfect fit, providing a reliable long-term solution for agricultural buildings.

The Galebreaker Agricultural Folding Screens are a made-to-measure solution, with pricing influenced by size, configuration, and optional features.

They offer a cost-effective alternative to roller shutters, particularly for large openings or buildings with limited headroom.

Indicative Pricing

Small Openings (Up to 3m W x 3m H)

• Supply Only: £1,200 – £2,500 + VAT

Medium Openings (3m – 6m wide)

• Supply Only: £2,500 – £5,000 + VAT

Large Openings (6m – 10m wide)

• Supply Only: £5,000 – £9,000 + VAT

Very Large Openings (10m – 20m wide)

• Supply Only: £9,000 – £18,000+ + VAT

Operation Options

Manual Operation (Standard):

Most cost-effective and suitable for general use

Electric Operation (Optional):

Add approx. £1,000 – £3,000+ depending on door size and motor specification

Curtain Options Impacting Price

• Solid PVC Curtain (Standard)

Mesh or Vented Panels:

• Add approx. +10–20%

Combination Curtains (Solid + Mesh):

• Add approx. +15–25%

Factors Affecting Price

• Opening width and height
• Number of door sections (single or multi-section)

Manual vs electric operation

• Curtain specification (solid, mesh, or combination)
• Structural fixing requirements
• Installation complexity

Installation Costs

DIY Installation:

• Designed for self-installation to reduce costs

Professional Installation (Optional):

• Typically £500 – £2,000+ depending on size and site conditions

Budget Guidance

• Small barns / stables: £1,500 – £3,000 + VAT
• Standard agricultural buildings: £3,000 – £7,000 + VAT
• Large machinery or grain stores: £7,000 – £15,000+ + VAT

Why It’s Cost Effective

• Lower cost than large roller shutters or sectional doors
• Minimal structural requirements (no large headbox needed)
• Low maintenance and long lifespan
• Combines access, protection, and ventilation in one system

Get an Accurate Quote

Due to the bespoke nature of folding screens, we recommend requesting a tailored quotation. This ensures the system is optimised for your building, balancing performance, durability, and budget.
