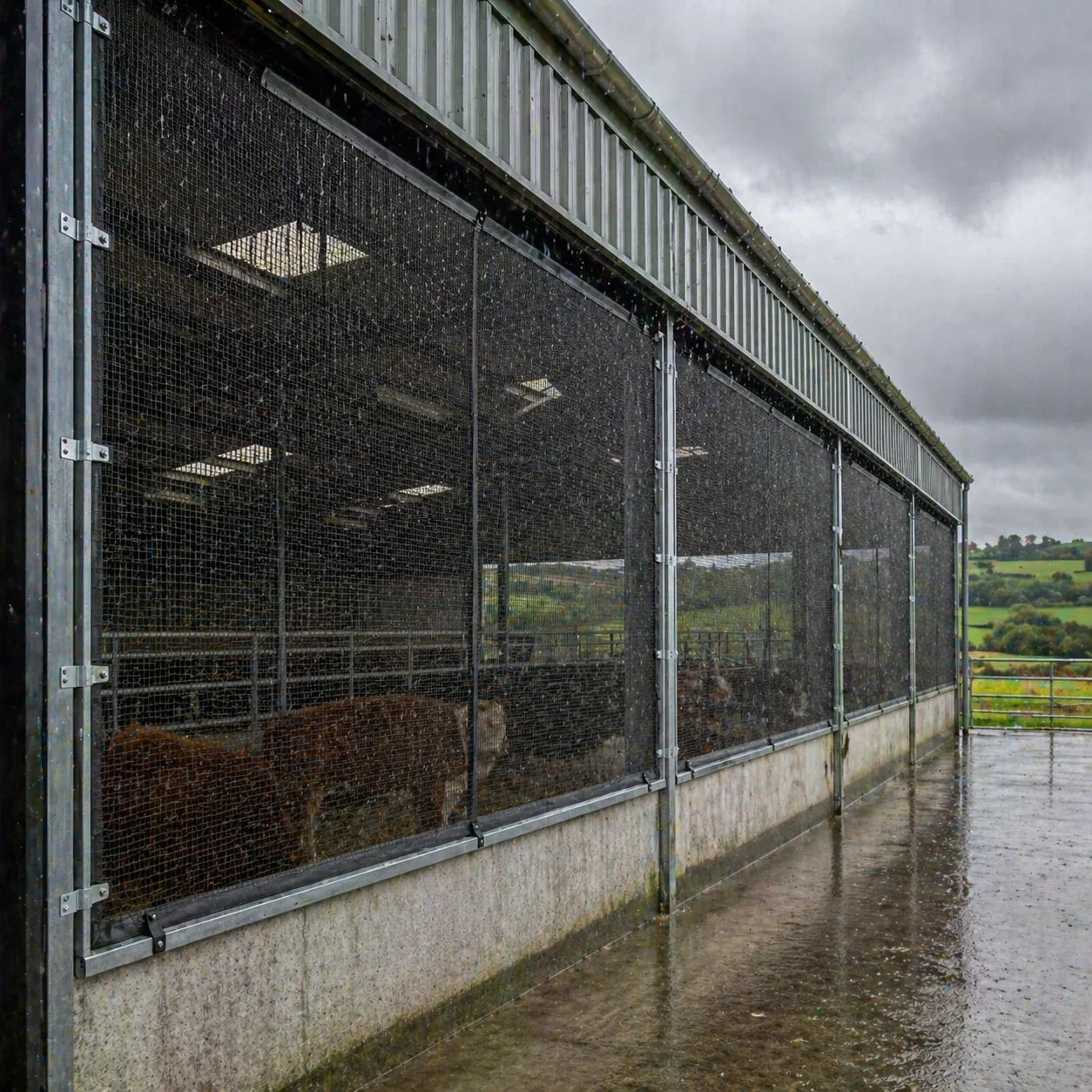

Galebreaker Fixed Mesh Screens

Passive Ventilation for Healthier Buildings

Allows continuous airflow to reduce humidity, heat build-up, and airborne contaminants, creating a healthier environment for livestock and stored materials.

Effective Weather Protection

Acts as a windbreak and rain barrier, reducing wind chill and preventing driving rain from entering while maintaining an open, breathable structure.

Clip-On or DIY Mesh Systems Available

Choose from ready-to-install clip-on panels for fast fitting or off-the-roll mesh for complete flexibility on custom or large-scale projects.

Improves Livestock Welfare

Provides fresh air without cold drafts, helping to reduce respiratory issues and improve comfort for calves, cattle, and other livestock.

Bird & Pest Control

Prevents birds from entering barns and feed stores, supporting biosecurity and farm assurance compliance while protecting feed from contamination.

Quick & Easy Installation

Clip-on panels can be installed in as little as 15 minutes per bay, with no drilling or structural modifications required.

Durable, Agricultural-Grade Materials

Manufactured from PVC-coated, UV-stabilised mesh that is tear-resistant, rot-proof, and built for long-term outdoor use.

Flexible & Removable Design

Panels can be removed or repositioned as needed, allowing access for machinery or seasonal adjustments.

Custom Fit for Any Opening

Available in a range of standard heights with adjustable widths, or supplied off-the-roll for fully bespoke applications.

Low Maintenance Solution

Requires minimal upkeep, simply clean periodically, with no painting, mechanical parts, or ongoing maintenance required.

Cost-Effective Alternative to Cladding

Provides similar benefits to timber boarding or solid cladding at a lower cost, with improved ventilation performance.

Versatile Agricultural Applications

Ideal for livestock housing, grain stores, feed bays, ventilation openings, and DIY barn upgrades.

The Galebreaker Agricultural Fixed Mesh Screens are designed to offer maximum flexibility, allowing farmers to tailor ventilation and weather protection to suit different building types, layouts, and operational needs. With both pre-finished panel systems and DIY mesh options, the product can be adapted for everything from simple retrofits to large-scale agricultural projects.

System Options

Factory-Finished Clip-On Panels:

• Supplied as ready-to-install units with integrated fixing system
• No drilling or structural modifications required
• Ideal for fast installation and retrofit projects
• Provides a clean, professional finish

Custom Off-the-Roll Mesh:

• Supplied in continuous lengths for DIY installation
• Can be cut and fitted to any size or shape
• Ideal for large spans, irregular openings, or bespoke layouts
• More cost-effective for bulk or multi-bay installations

Size & Configuration

Clip-On Panels:

• Standard heights: 1m, 1.5m, 2m, 2.5m, 3m
• Adjustable widths up to approx. 20m per panel
• Panels can be trimmed for a precise fit

Off-the-Roll Mesh:

• Standard roll heights: 1m, 1.5m, 2m3m height available to order
• Supplied in custom lengths (cut per metre)
• Suitable for continuous runs or full wall coverage

Fixing & Installation Options

Clip-On System:

• Integrated hook and ratchet tensioning system
• Clips directly onto building frame
• No need for drilling, bolting, or welding

DIY Mesh Fixing:

Can be installed using:

• Timber battens
• Steel fixings
• Ratchet tensioning kits (available)

Allows flexibility for different structures and mounting methods

Tensioning & Fit

• Designed to be installed taut for maximum performance
• Clip-on panels include built-in ratchet tensioners
• DIY systems can use optional tensioning kits for secure fixing
• Prevents flapping and ensures wind resistance

Material & Performance Options

High-strength PVC-coated polyester mesh

Engineered for:

• Ventilation performance
• Weather resistance
• Bird and pest exclusion

Optional variations in mesh specification depending on application

Suitable for high airflow or increased weather protection zones

Removability & Flexibility

Clip-on panels can be removed quickly when access is required

Ideal for:

• Machinery access
• Cleaning or maintenance
• Seasonal changes

DIY mesh systems can be installed as:

• Permanent cladding
• Semi-permanent or removable sections

Application-Specific Design

The system can be configured for a wide range of uses:

• Livestock housing: Controlled airflow with reduced drafts
• Feed & grain stores: Bird-proofing with ventilation
• Ventilation openings: Eaves, ridges, and gables
• Open-sided barns: Weather protection without closing the building
• DIY upgrades: Replace timber cladding or retrofit older buildings

Finish & Appearance

• Industrial-grade mesh with a clean, professional look
• Designed to integrate with existing farm buildings
• Maintains a light, open appearance while providing protection

Design Flexibility Summary

The Galebreaker system is built around:

• Fast installation or full DIY flexibility
• Standardised panels or fully bespoke layouts
• Permanent or removable configurations
• Scalable solutions for small or large buildings

These design and customisation options make the Galebreaker Fixed Mesh Screens a highly adaptable solution, delivering efficient ventilation, weather protection, and long-term performance across a wide range of agricultural applications.

Product Type:

• Fixed agricultural mesh ventilation and weather protection system

Application:

• Designed for livestock buildings, grain stores, feed bays, and open-sided agricultural structures
• Suitable for permanent or semi-permanent installation
  System Options

Clip-On Mesh Panels:

• Pre-finished panels with integrated fixing system
• Supplied with ratchet tensioners, hooks, and straps
• Fast installation with no drilling required

Off-the-Roll Mesh:

• Supplied in continuous lengths for DIY installation
• Cut to size on-site or pre-cut per metre

Sizes & Dimensions

Clip-On Panels:

• Heights: 1m, 1.5m, 2m, 2.5m, 3m
  Widths: Adjustable up to approx. 20m per panel

Off-the-Roll Mesh:

• Standard roll heights: 1m, 1.5m, 2m
• Optional height: 3m (made to order)

Length:

• Supplied per metre to suit project requirements
• Material Specification

Fabric Type:

• PVC-coated polyester mesh

Properties:

• High tensile strength
• Tear-resistant
• Rot-proof
• UV-stabilised
• Flame-retardant (where specified)

Designed for long-term exposure to:

• Sunlight
• Rain and moisture
• Agricultural environments (including ammonia exposure)

Ventilation Performance

• Provides high airflow ventilation
• Approx. 65% greater air inlet area compared to traditional timber cladding
• Enables continuous passive airflow without mechanical systems

Weather Protection

• Acts as a windbreak and rain barrier
• Reduces wind speed entering the building
• Water typically runs down external face of mesh
• Minimal moisture penetration (fine mist under heavy conditions)

Pest & Bird Control

• Mesh aperture designed to prevent bird ingress
• Helps meet farm assurance and biosecurity standards
• Reduces contamination of feed and stored materials

Fixing & Tensioning

Clip-On Panels:

• Integrated ratchet tensioning system
• Hook-on installation to structural frame
• No drilling or welding required

Off-the-Roll Mesh:

Fixed using:

• Battens
• Screws or fixings
• Optional tensioning kits (ratchets, brackets, straps)
• Designed to be installed under tension for stability

Durability & Performance

• Designed for long-term agricultural use

Resistant to:

• Weathering
• UV degradation
• Rot and corrosion

Hardware components:

• Galvanised or stainless steel
• Corrosion-resistant for farm environments

Installation

• Suitable for steel or timber framed buildings

Can be installed:

• As fixed panels
• As removable sections
• Clip-on panels install in approx. 15 minutes per bay

Maintenance

• Low maintenance system
• Periodic cleaning with water or pressure washer
• No painting or treatment required
• No moving parts

Flexibility & Replaceability

• Panels can be removed and reinstalled as needed
• Individual sections can be replaced if damaged
• Suitable for both permanent and adaptable installations

Warranty

• Typically supplied with a 10-year manufacturer’s warranty (subject to terms)

Compliance & Suitability

• Supports farm assurance and biosecurity requirements

Suitable for environments requiring:

• Ventilation
• Weather protection
• Pest control

This technical specification highlights the Galebreaker Fixed Mesh Screens as a robust, high-performance, and low-maintenance solution for improving airflow and protection in agricultural buildings.

The Galebreaker Agricultural Fixed Mesh Screens are available in both standard panel systems and custom mesh options, with lead times depending on the chosen specification.

Factory-Finished Clip-On Panels

• Typical lead time: 2–3 weeks from order
• Fast turnaround due to standardised panel sizes and pre-finished design

Off-the-Roll Mesh

• Standard stock sizes (1m, 1.5m, 2m heights):Available for quick dispatch within 2–5 working days
• Non-standard / 3m height rolls:Typically 2–3 weeks lead time

Lead Time Considerations

Lead times may vary depending on:

• Order quantity and project size
• Specific panel sizes or custom requirements
• Seasonal demand

All lead times will be confirmed at quotation stage to ensure alignment with your project schedule.

This combination of stock availability and fast manufacturing makes the system suitable for both quick upgrades and planned installations across agricultural buildings.

The Galebreaker Agricultural Fixed Mesh Screens offer a cost-effective ventilation and weather protection solution, with pricing varying depending on whether you choose factory-finished panels or off-the-roll mesh, as well as size and fixing method.

Indicative Pricing – Clip-On Mesh Panels

Small Bays (Approx. 3m W x 1–2m H)

• From £150 – £300 + VAT per panel

Medium Bays (3m – 6m width)

• From £300 – £600 + VAT per panel

Large Openings / Continuous Runs (6m+)

• From £600 – £1,200+ + VAT per section

Includes mesh panel, ratchets, hooks, and fixing system

Indicative Pricing – Off-the-Roll Mesh (DIY Option)

Mesh Material Only:

• From £8 – £20 + VAT per m²

Typical Bay Cost (DIY Installed):

• £100 – £400 + VAT depending on size

Optional Tensioning Kits:

• Add approx. £50 – £150 per bay

Factors Affecting Price

• Size of opening (width & height)
• Panel system vs DIY mesh
• Quantity / number of bays
• Fixing method and hardware required
• Custom sizing or non-standard heights

Installation Costs

DIY Installation:

• Most common option with minimal cost

Professional Installation (Optional):

• Typically £100 – £300 per bay

Budget Guidance

• Small livestock or calf shed bays: £150 – £350 + VAT
• Standard barn bays: £300 – £700 + VAT
• Large agricultural buildings: £1,000 – £3,000+ + VAT

Why It’s Cost Effective

• Lower cost than timber boarding or solid cladding
• No ongoing maintenance costs (no painting or repairs)
• Improves ventilation without mechanical systems

Get an Accurate Quote

For larger projects or multiple bays, we recommend requesting a tailored quotation to ensure the most cost-effective solution based on your building layout and requirements.
