Window Security Mesh

Why choose Window Security Mesh?

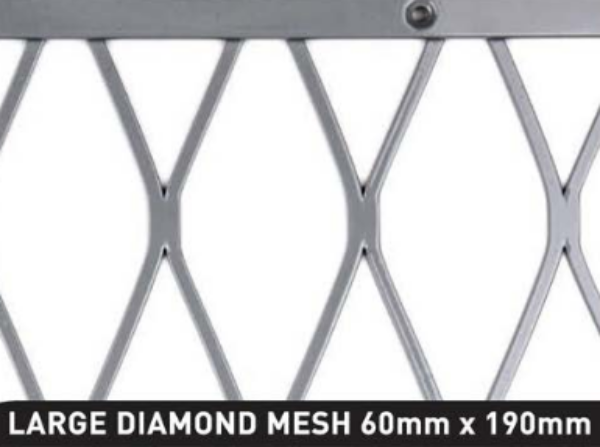

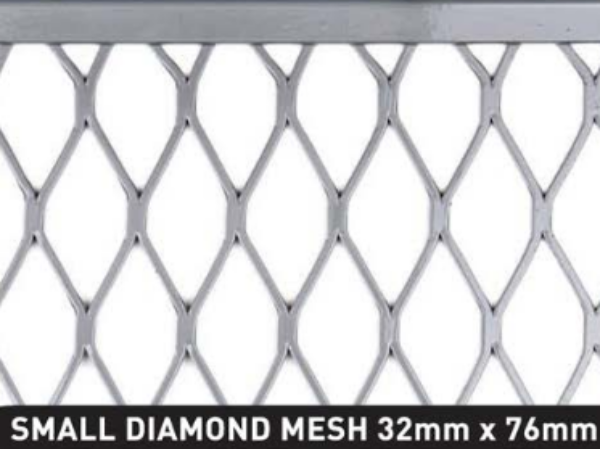

The use of window mesh is a simple secure and cost effective way to protect windows from vandalism. Usually fixed externally for vandalism, but can be fitted internally for security. As standard, we use a Welded Wire Mesh, with 25mm x 25mm square spaces or a Diamond Mesh with 33m w x 77mm h spaces . This is welded into a frame, which can be Flat Bar, Box Section or Angle Iron depending on your fixing requirements. The Window Security Mesh can be fitted flat to the wall or can be stood off the wall using legs, to allow the windows to open. We can also put cut outs into the grille for Handles, Pipes, Vents or any other obstructions.

The Window Security Mesh comes powder coated in White, Brown, Black or Cream as standard. Other BS or RAL colours are available at an extra cost. There is the option of Zinc Primer or Hot Dipped Galvanising, to protect the mesh from rusting, when installed externally.

Key Features
Application	Domestic, Commercial, Retail, Community Centres, Sports Facilities
Product Rating	Medium
Material	Steel
Max Width	2500mm
Max Height	2500mm
Standard Finish	White, Brown, Black or Cream
Lead Times	10-15 working days

INFILL SPECIFICATION

Description

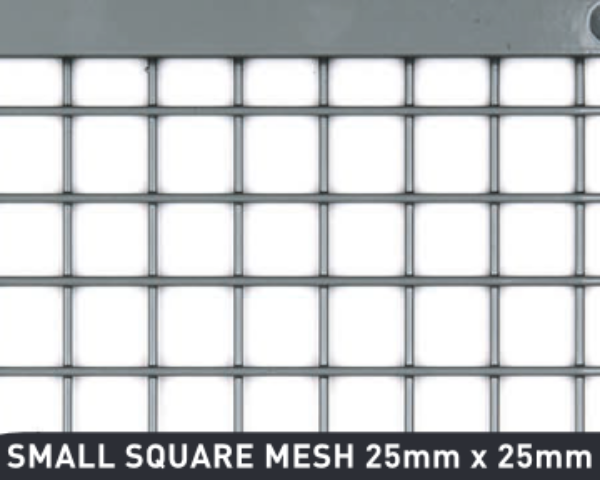

STANDARD MESH - 25mm x 25mm x 10 gauge

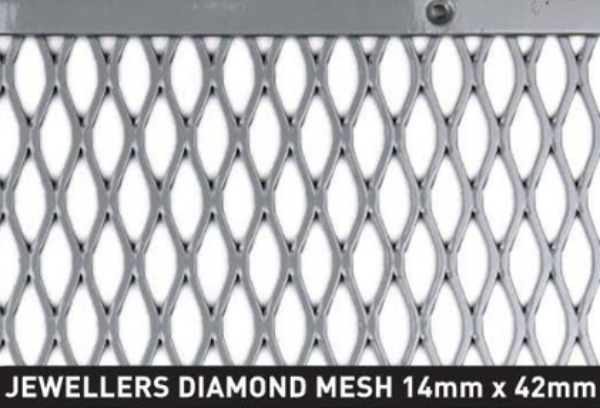

DIAMOND MESH - 10 gauge

FRAME SPECIFICATION

Description

The Grille Frame has three options that we may use as standard dependant on the type of installation;

(1) Flat bar Frame - Ideal when face fixing to a flat surface ie; Window Frame or Door

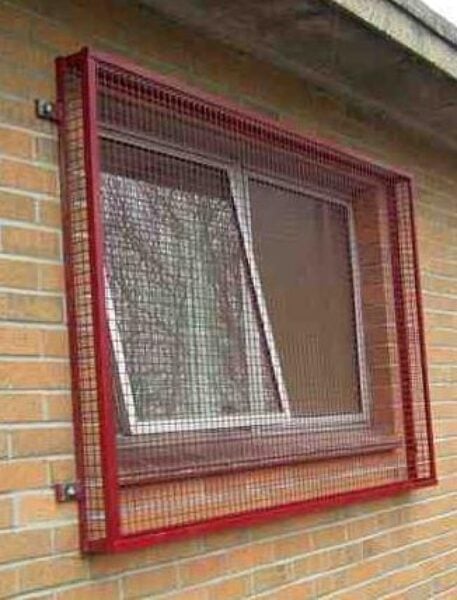

(2) Angle Iron Frame - Used when standing off legs are required, to stand the grille off the wall.

(3) Box Section - Ideal for Face or Reveal fixing with the added benefits of the fixings concealed within the box.

OPTIONS

FIXED

The Bar grille is supplied as standard as a Fixed Panel. On larger sizes the grille maybe supplied in sections and required bolting together on site.

HINGED

There is the option of having the Bar Grille as a Hinged Gate. Ideal for emergency escape, where access is required or for maintenance and cleaning.

LIFT OUT

There is the option of having the grille lift out and lockable if required. This is only available on small openings.

FIXING OPTIONS

STANDARD REVEAL FIXING

STANDARD FACE FIXING

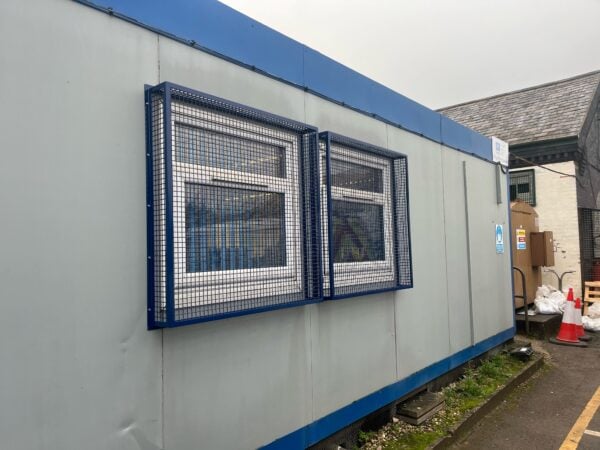

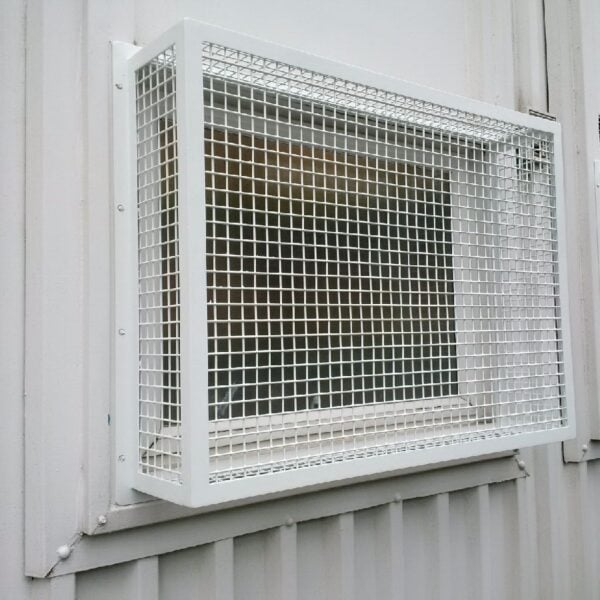

OPTIONAL STANDOFF FIXING

The Window Security Mesh is available in the following standard colours. Band A, Band and Band C are an additional cost.
