Why use the Roller Grille Shutter?

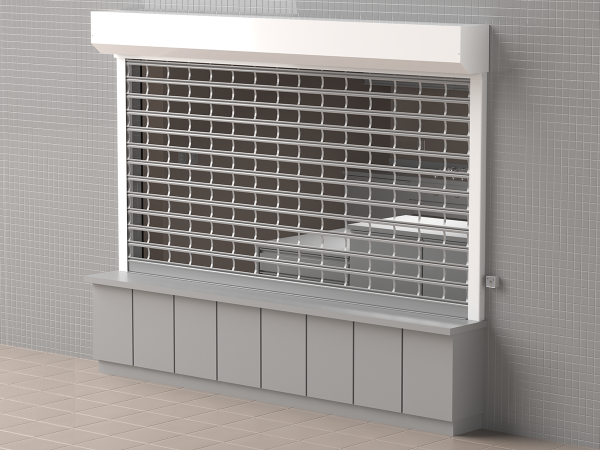

The RA9 Aluminium Roller Grille is a modern version of the old fashioned Tube & Link style shutter.  The RA9 provides the same amount of vision, provides a higher level of security and is a lot more cost effective than the Tube & Link Shutters.  The RA9 Aluminium Roller is only suitable for Internal use.   The RA9 comes with a standard spacing of 150mm x 70mm.  For added security and preventing hand getting through the curtain, there is the option of a closer spacing of 75mm x 70mm.

The Aluminium Roller Grille is available Manual Operation with Spring and Lock.  Why not automate the shutter, to make daily operation easier and you can incorporate the your shutters into a fully automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.

The RA9 Aluminium Roller Grille curtain comes in Anodised Silver as standard, but can be powder coated at an additional cost.   The Box and Guides come as standard in White, Brown, Black or Cream .  The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Application Commercial, Retail, Bars and Serveries
Product Rating Medium
Material Aluminium
Lath Types Grille - 69% Vision
Manual Operation Spring and Lock
Electric Operation Single Phase - Tube Motor
Max Width 5000mm (Depending on Height)
Max Height - Manual 2800mm (Depending on Height)
Max Height - Electric 4000mm (Depending on Height)
Box & Guides - Standard Finish White, Brown, Black, Cream
Curtain - Standard Finish Anodised Silver
Lead Times 7-10 working days

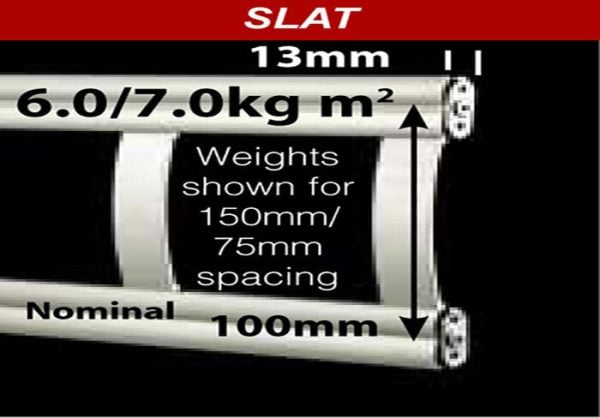

    SLATS SPECIFICATION


 Description
Constructed from a combination of extruded Aluminium links and hinge section.  Link spacing is 150mm in line as standard, however a brick bond pattern is available at no extra charge.  75mm spacing and Solid slat profile is available at an extra charge.






     BOX SPECIFICATION

Description
Roll formed Aluminium in two sections; top and bottom boxes.  Bottom Box removable for installation and maintenance and is chamfered at 45o.  The shutter box is assembled on steel end plates.
 Box Sizes
Clear opening height (to underside of box)
1600 mm  -   205 mm box
2800 mm  -   250 mm box
4000 mm  -   300 mm box



    GUIDE RAIL SPECIFICATION

 Description
Extruded Aluminium Guides with an integral box section for reinforcement and to facilitate fixing.  High density 4 or 7mm (dependant on model) pile brush seals for quiet and smooth operation.

Dimensions
UPH140    60 mm wide x 27 mm deep (205 mm box only)
UPH240    75 mm wide x 27 mm deep (250 mm or 300 mm box)
UPH250    90 mm wide x 3 4mm deep (250 mm or 300 mm box)





    OPERATION
 Description
The RA9 is available both manually and electrically operated using a tubular motor inside the barrel.  The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.



     SPRING LOADED

      Roller Shutters usually installed mainly over doorways or
      Serveries are raised up and down by lifting and lowering the
      curtain by hand.  The roller shutter has a spring in the barrel
      which helps lifting the shutter.  As standard a central bottom
      lath lock is provided which has a key in the bottom lath and
      bolts shoot into the guides rails at each side.  The Bottom
                          lath lock can be operated from both sides but has a secure
                              and non-secure side to the lock.  Optional bullet locks are
                              available which are pins that go through the guide rails each side.



      ELECTRIC  - (N.B. minimum shutter width 750mm)

      Electric shutters are usually fitted on larger openings where
      Manual Operation is not suitable or where the operator
      requires an easy, clean and user friendly type of operation.
      Single phase tubular motors are enclosed within the barrel
      giving full protection from the elements.  Electric Roller
      Shutters can be controlled individually or grouped to one
                              controller.  The controllers available include internal rocker
                              switch, security key switch or Remote Control.  Manual
                              overrides are available on Electric Roller Shutters which
                              allow the shutter to be operated when the power to the
                              shutter has failed.







The RA9 Roller Grille Shutter Curtain comes as standard in an Anodised Silver finish.   The shutter curtain can be Powder Coated at an extra cost.




The RA9 Box and Guides is available in the following standard colours.   Band A, Band and Band C are an additional cost.






From only £342.00
