Roller Grille Bar and Servery Shutter - 69% Vision
Why use the Roller Grille Bar Servery Shutter?
The RA9 Aluminium Roller Grille is a modern version of the old fashioned Tube & Link style shutter. The RA9 provides the same amount of vision, provides a higher level of security and is a lot more cost effective than the Tube & Link Shutters. The RA9 Aluminium Roller is only suitable for Internal use. The RA9 comes with a standard spacing of 150mm x 70mm. For added security and preventing hand getting through the curtain, there is the option of a closer spacing of 75mm x 70mm.
The RA9 Aluminium Roller Grille is a modern version of the old fashioned Tube & Link style shutter. The RA9 provides the same amount of vision, provides a higher level of security and is a lot more cost effective than the Tube & Link Shutters. The RA9 Aluminium Roller is only suitable for Internal use. The RA9 comes with a standard spacing of 150mm x 70mm. For added security and preventing hand getting through the curtain, there is the option of a closer spacing of 75mm x 70mm.
The Aluminium Roller Grille is available Manual Operation with Spring and Lock. Why not automate the shutter, to make daily operation easier and you can incorporate the your shutters into a fully automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.

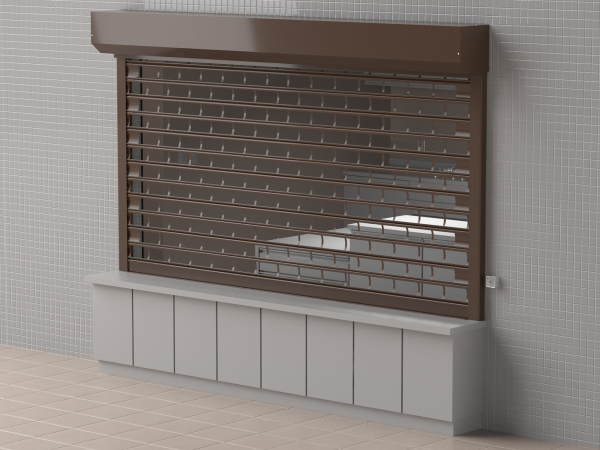

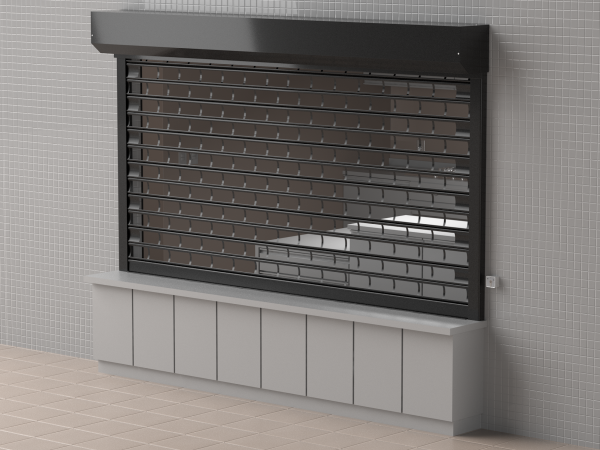

The RA9 Aluminium Roller Grille curtain comes in Anodised Silver as standard, but can be powder coated at an additional cost. The Box and Guides come as standard in White, Brown, Black or Cream . The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.
SLATS SPECIFICATION
Description

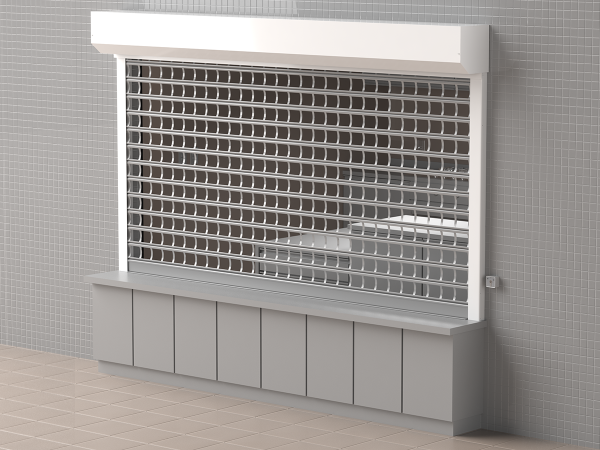

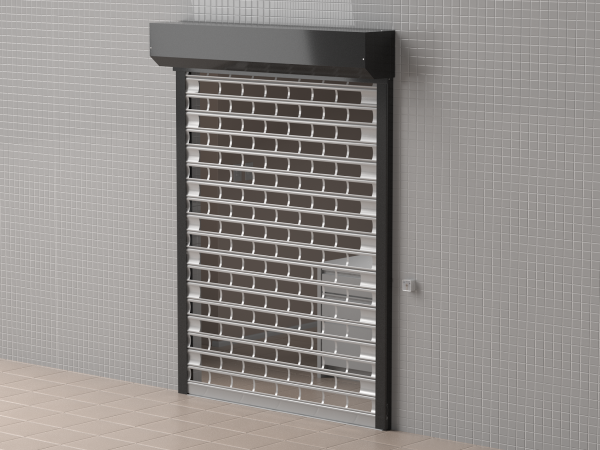

Constructed from a combination of extruded Aluminium links and hinge section. Link spacing is 150mm in line as standard, however a brick bond pattern is available at no extra charge. 75mm spacing and Solid slat profile is available at an extra charge.
BOX SPECIFICATION
Description
Roll formed Aluminium in two sections; top and bottom boxes. Bottom Box removable for installation and maintenance and is chamfered at 45o. The shutter box is assembled on steel end plates.
Box Sizes
Clear opening height (to underside of box)
1600 mm - 205 mm box
2800 mm - 250 mm box
4000 mm - 300 mm box
GUIDE RAIL SPECIFICATION
Description
Extruded Aluminium Guides with an integral box section for reinforcement and to facilitate fixing. High density 4 or 7mm (dependant on model) pile brush seals for quiet and smooth operation.
Dimensions
UPH140 60 mm wide x 27 mm deep (205 mm box only)
UPH240 75 mm wide x 27 mm deep (250 mm or 300 mm box)
UPH250 90 mm wide x 3 4mm deep (250 mm or 300 mm box)
OPERATION
Description
The RA9 is available both manually and electrically operated using a tubular motor inside the barrel. The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.
SPRING LOADED
Roller Shutters usually installed mainly over doorways or
Serveries are raised up and down by lifting and lowering the
curtain by hand. The roller shutter has a spring in the barrel
which helps lifting the shutter. As standard a central bottom
lath lock is provided which has a key in the bottom lath and
bolts shoot into the guides rails at each side. The Bottom
lath lock can be operated from both sides but has a secure
and non-secure side to the lock. Optional bullet locks are
available which are pins that go through the guide rails each side.
ELECTRIC - (N.B. minimum shutter width 750mm)
Electric shutters are usually fitted on larger openings where
Manual Operation is not suitable or where the operator
requires an easy, clean and user friendly type of operation.
Single phase tubular motors are enclosed within the barrel
giving full protection from the elements. Electric Roller
Shutters can be controlled individually or grouped to one
controller. The controllers available include internal rocker
switch, security key switch or Remote Control. Manual
overrides are available on Electric Roller Shutters which
allow the shutter to be operated when the power to the
shutter has failed.
The RA9 Roller Grille Shutter Curtain comes as standard in an Anodised Silver finish. The shutter curtain can be Powder Coated at an extra cost.
The RA9 Box and Guides is available in the following standard colours. Band A, Band and Band C are an additional cost.
- Stock: Made to Order
From only £328.00
Based on 1000mm x 1000mm
ESTIMATED LEAD TIMES -7 - 15 WORKING DAYS
(EXCLUDING DELIVERY)
Would you like an Instant Quote?
Please follow the steps below to build a product to suit your requirements.
Product size Guide
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 5000mm
- Min Height - 500mm
- Max Height - 4000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for you Click here
Would you like an Instant Quote?
Please enter your opening sizes and then follow the steps to build a product to suit your requirements.
Product size Guide
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 5000mm
- Min Height - 500mm
- Max Height - 4000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum
Sizes.
These sizes will depend on the overall size of the poroduct.
