Galebreaker Sliding Screens

Simple Sliding Door Solution for Farm Buildings

A practical curtain-style system that slides horizontally to secure openings without heavy doors or complex mechanisms

Maintains Ventilation & Natural Light

Mesh curtain design allows continuous airflow and daylight, improving conditions for livestock and stored materials

Full Access with No Obstructions

No floor tracks or bulky headboxes, ensuring clear access for machinery, vehicles, and livestock

Manual, Low-Maintenance Operation

Easy to operate by hand with no motors or electrics, reducing maintenance and running costs

Ideal for Low-Use or Narrow Openings

Perfect for bays that don’t justify expensive doors, offering a cost-effective and flexible solution

Custom-Made for Large Openings

Suitable for openings up to 20m wide, with options for single or centre-opening configurations

Weather Protection Without Sealing the Building

Acts as a windbreak and rain barrier while preventing heat build-up and stale air

Flexible Curtain Options

Available in standard mesh, high-performance mesh, or solid PVC, depending on ventilation and protection requirements

Smooth Sliding Operation

Runs on an overhead track with no ground rails, ensuring easy movement and minimal disruption

Durable Agricultural-Grade Construction

Manufactured from high-strength PVC-coated fabric and galvanised components for long-term use

Versatile Applications Across the Farm

Ideal for feed passages, calf sheds, covered yards, and general storage bays

Cost-Effective Alternative to Traditional Doors

Delivers protection and functionality at a lower cost than roller shutters or folding doors

The Galebreaker Agricultural Sliding Mesh Screens are designed to be highly adaptable, allowing you to tailor the system to suit different building layouts, opening sizes, and operational requirements. With flexible configurations and material choices, the system can be optimised for both ventilation and protection.

Configuration Options

Single Sliding Screen:

• Slides from one side to the other
• Stacks neatly to one side when open
• Ideal for standard doorways and single-bay openings

Centre Opening (Bi-Parting):

• Two screens meet in the middle
• Can be opened from both sides for wider access
• Optional removable or fixed centre postIdeal for large openings or multi-bay access

Size & Coverage

• Made to measure for each opening
• Suitable for widths up to ~20m
• Heights typically up to ~5m (depending on structure)
• Track can be cut to size on-site for precise installation

Curtain Material Options

Choose from a range of materials to suit your application:

Standard Mesh (~25% airflow):

• Balanced ventilation and weather protection
• Ideal for general livestock buildings

High-Performance Mesh (~10% airflow):

• Greater protection from wind and rain
• Suitable for exposed locations or youngstock
• Solid PVC Curtain:Maximum weather protection
• Ideal for grain stores or enclosed areas

Translucent Curtain (Optional):

• Allows natural light while blocking weather
• Suitable for darker buildings
• Custom Shapes / Tapered Curtains:
• Can be manufactured to suit uneven rooflines or gables

Track & Operation Options

Overhead track system (no floor rail required)

Track mounted:

• Above opening (lintel mount)
• Along internal wall face

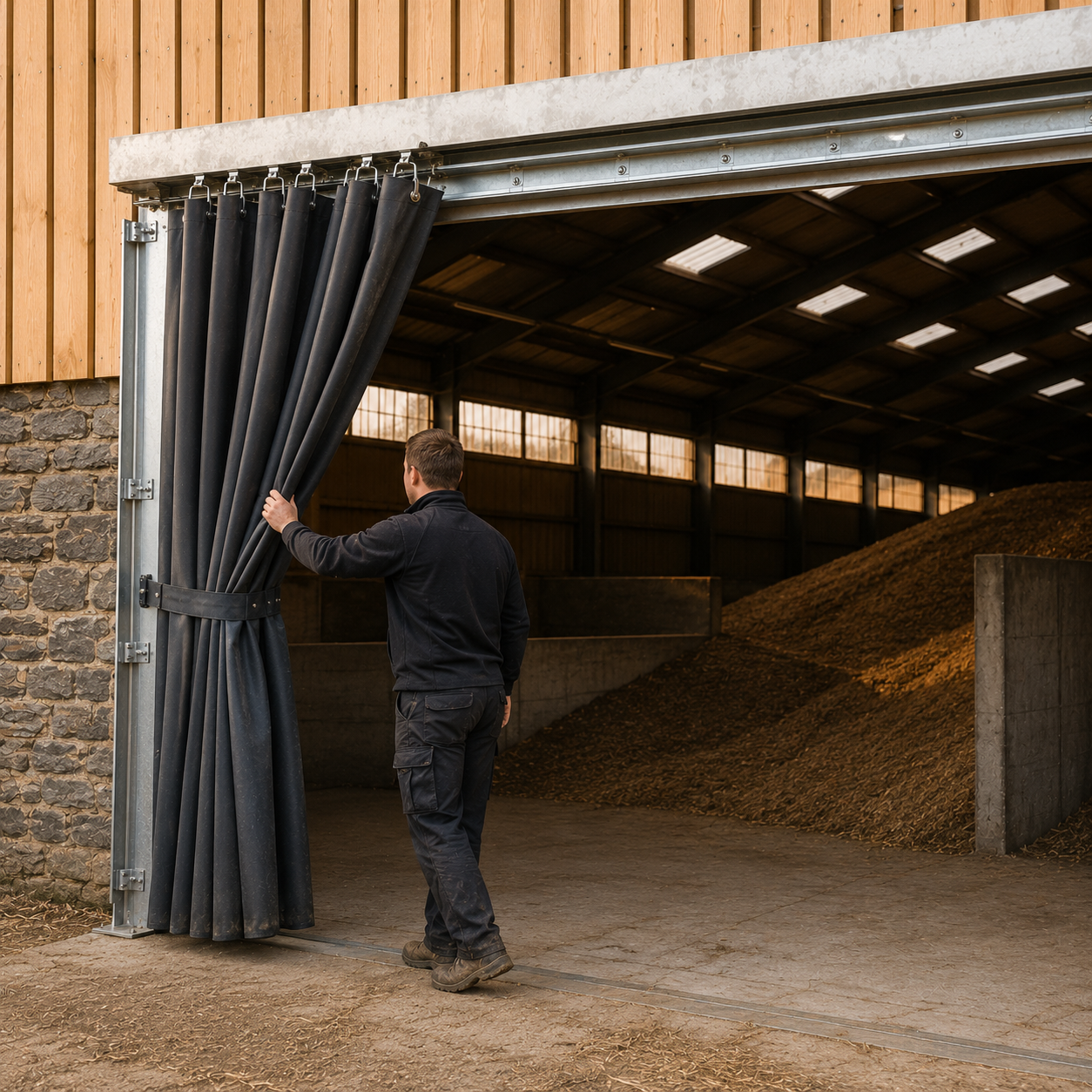

• Manual sliding operation
• Smooth-running roller trolleys for easy movement

Locking & Securing Options

• Side fixing points or latches to secure when closed

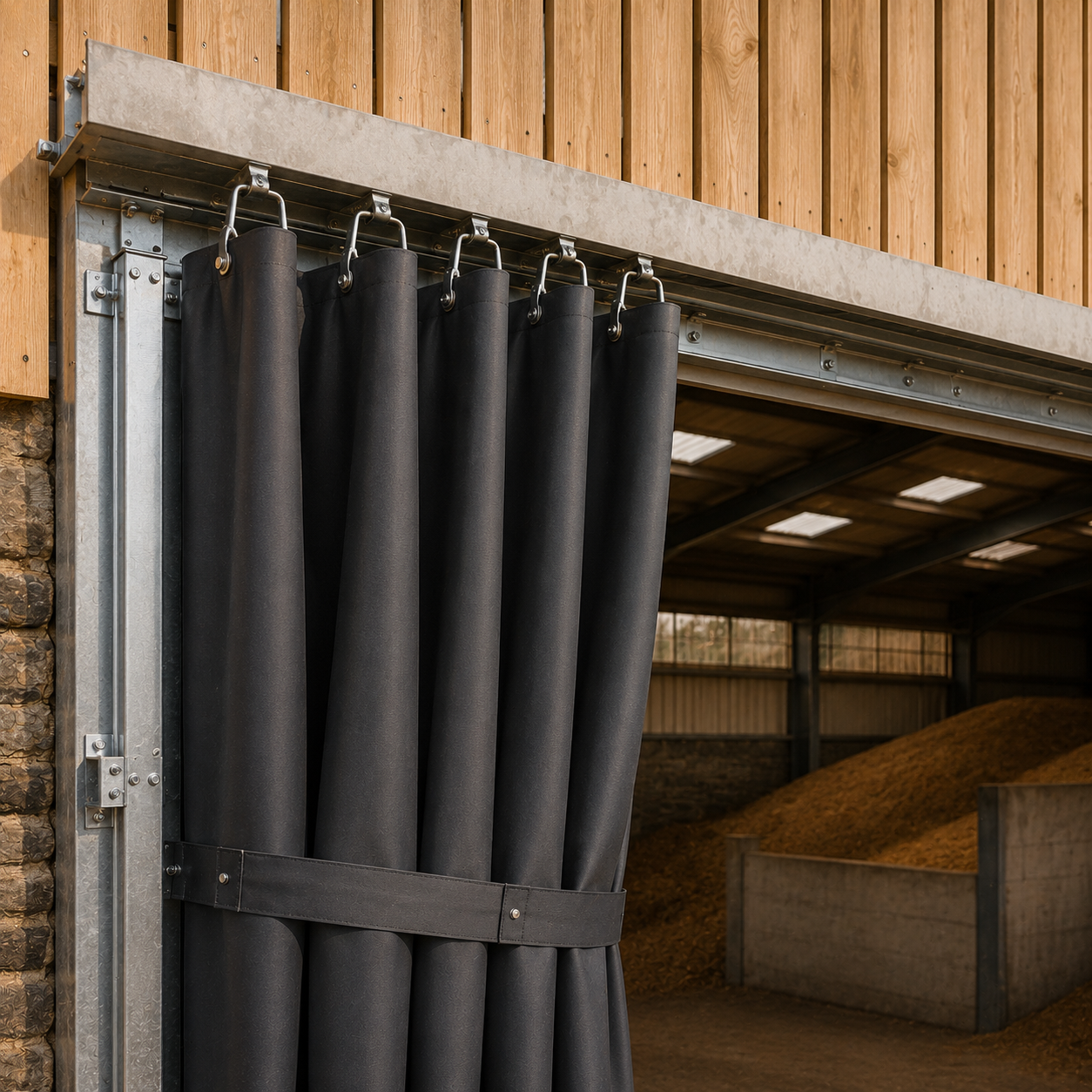

• Tie-back straps to secure curtain when open
• Optional drop bolts or locking posts for additional security

Wind Protection & Stability

• Curtain designed to flex under wind load, reducing pressure
• Tensioning systems or ratchet straps to hold curtain taut
• Prevents excessive movement or flapping in exposed areas

Installation Options

Suitable for internal or external installation

Can be mounted to:

• Steel frames
• Timber structures
• Supplied as a complete kit including track, fixings, and curtain

Colour & Finish Options

Standard colours typically include:

• Green
• Blue
• Other colours available depending on specification

Designed to blend with agricultural buildings

Modular & Expandable Design

• Multiple screens can be installed along a single elevation
• Suitable for multi-bay buildings or long continuous runs
• Can be combined with fixed mesh panels or roller screens for a full building solution

Application Flexibility

Ideal for:

• Feed passages and storage bays

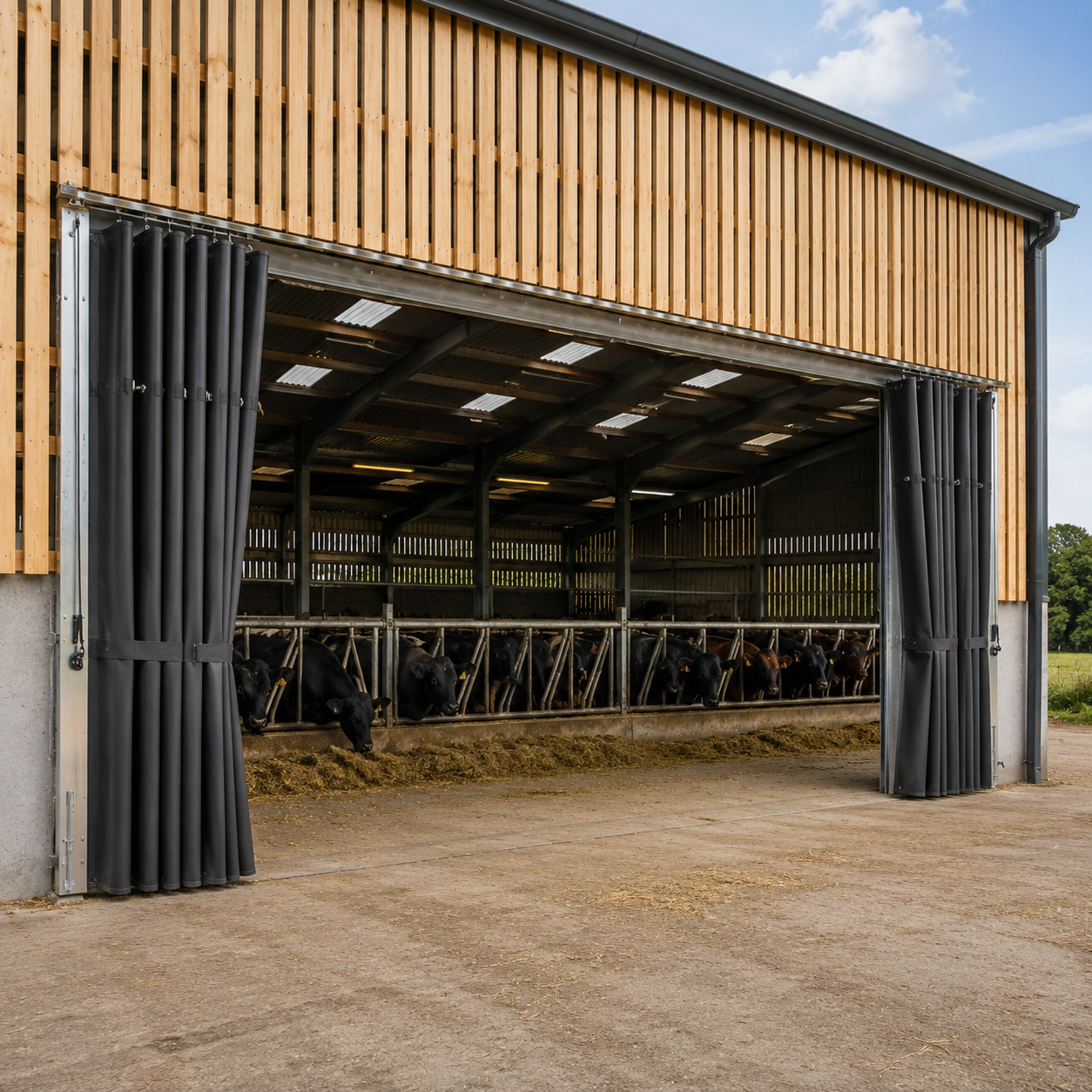

• Calf and livestock sheds
• Covered yards and loafing areas
• Machinery and grain storage buildings

Design Focus

The system is built around:

• Simplicity and ease of use
• Maximum ventilation with weather protection
• Low-cost, low-maintenance operation
• Adaptability to different farm buildings

These design and customisation options make the Galebreaker Sliding Screen a versatile, practical solution, delivering the right balance of access, protection, and airflow for modern agricultural environments.

Product Type:

• Sliding agricultural mesh curtain door system

Application:

• Designed for livestock buildings, feed stores, grain bays, and open agricultural structures
• Suitable for internal or external installation

Sizes & Coverage

Maximum Width:

• Up to approx. 20m per opening

Maximum Height:

• Up to approx. 5m (subject to specification)

Configuration:

• Single sliding panel
• Bi-parting (centre opening) system
• Made to measure to suit individual building openings
• Curtain Materials

Fabric Type:

• PVC-coated polyester

Material Options:

• Standard mesh (~25% airflow)
• High-performance mesh (~10% airflow)
• Solid PVC curtain
• Optional translucent curtain

Material Properties:

High tensile strength:

• approx. 3–5 tonnes per metre
• Tear-resistant
• Rot-proof
• UV-stabilised
• Weather-resistant
• Flame-retardant (where specified)

Operation

• Manual sliding operation
• Curtain moves horizontally along overhead track
• Smooth operation via roller trolley system
• No motors, springs, or counterweights required

Track System

• Overhead track mounted above opening or along wall
• Manufactured from galvanised steel or aluminium
• Heavy-duty roller trolleys for smooth movement
• Track can be cut to size on-site

Wind Resistance & Stability

• Flexible curtain design reduces wind pressure
• Tensioning system or ratchet straps to secure curtain
• Optional locking points or drop bolts for stability
• Designed to perform in exposed agricultural environments

Weather Protection

• Acts as a windbreak and rain barrier
• Mesh reduces wind speed while allowing airflow
• Solid options provide full weather protection
• Prevents ingress of rain, snow, and debris

Ventilation Performance

• Maintains continuous airflow
• Reduces heat build-up, humidity, and condensation
• Improves air quality in livestock buildings

Installation

• Suitable for steel or timber framed buildings

Can be installed:

• Internally
• Externally

Supplied as a complete kit including:

• Track system
• Curtain
• Fixings and brackets
• Tensioning components

Durability & Construction

• Designed for agricultural environments
• Corrosion-resistant components
• Long service life with minimal wear
• Suitable for frequent or occasional use

Maintenance

• Low maintenance system
• No mechanical components requiring servicing

Periodic inspection of:

• Curtain condition
• Track and rollers
• Fixings and tensioning system

Safety & Compliance

• Designed in line with EN 13241 (industrial door standard)
• Safe manual operation
• No trip hazards due to trackless floor design

Warranty

• Typically supplied with a 10-year manufacturer’s warranty (subject to terms)

Application Suitability

• Livestock housing and calf sheds
• Feed passages and storage areas
• Covered yards and loafing areas
• Grain and machinery storage buildings

This technical specification outlines a robust, low-maintenance, and highly adaptable sliding door system, engineered to provide ventilation, weather protection, and ease of access in agricultural environments.

The Galebreaker Agricultural Sliding Mesh Screens are manufactured to order, with typical lead times depending on size, configuration, and material selection.

Standard Lead Time

Typically 3–4 weeks from order confirmation and final specification

Lead Time Considerations

Lead times may vary depending on:

• Opening size and complexity (larger or multi-bay systems)
• Curtain type (mesh, high-performance mesh, or solid PVC)
• Configuration (single or centre-opening systems)
• Order quantity

All lead times will be confirmed at quotation stage to ensure alignment with your project schedule.

This manufacturing timeframe ensures each sliding screen is precision-made to suit your building, delivering the correct balance of fit, performance, and durability for agricultural use.

The Galebreaker Agricultural Sliding Mesh Screens are a made-to-measure system, with pricing dependent on opening size, curtain type, and configuration. As a guide, they offer a cost-effective alternative to roller shutters and folding doors, particularly for low-use or ventilated applications.

Indicative Pricing

Small Openings (Up to 3m W x 3m H)

• Supply Only: £900 – £1,800 + VAT

Medium Openings (3m – 6m wide)

• Supply Only: £1,800 – £3,500 + VAT

Large Openings (6m – 10m wide)

• Supply Only: £3,500 – £7,000 + VAT

Very Large Openings (10m – 20m wide)

• Supply Only: £7,000 – £12,000+ + VAT

Configuration Options Impacting Price

Single Sliding Screen:

• Most cost-effective option

Centre Opening (Bi-Parting):

• Add approx. 10–25% due to additional track and components

Multiple Screens / Continuous Runs:

• Cost increases depending on total width and layout

Curtain Material Options

• Standard Mesh (most cost-effective)

High-Performance Mesh:

• Add approx. +10–20%

Solid or Translucent Curtain:

• Add approx. +15–30% depending on specification

Factors Affecting Price

• Opening width and height
• Curtain type (mesh vs solid)
• Track length and configuration
• Fixing method and structure type
• Number of screens required

Installation Costs

DIY Installation:

• Designed for self-installation with minimal tools

Professional Installation (Optional):

• Typically £300 – £1,500+ depending on size and complexity

Budget Guidance

• Small farm buildings / calf sheds: £1,000 – £2,500 + VAT
• Standard agricultural bays: £2,000 – £5,000 + VAT
• Large barns / machinery sheds: £5,000 – £10,000+ + VAT

Why It’s Cost Effective

• Lower cost than roller shutters or folding doors
• No motors or electrics required
• Minimal maintenance and long service life
• Provides both ventilation and weather protection in one system

Get an Accurate Quote

Due to the bespoke nature of this product, we recommend requesting a tailored quotation. This ensures the correct configuration is selected to suit your building, balancing cost, ventilation, and performance.
