Why choose the Perforated Steel Roller Shutter?

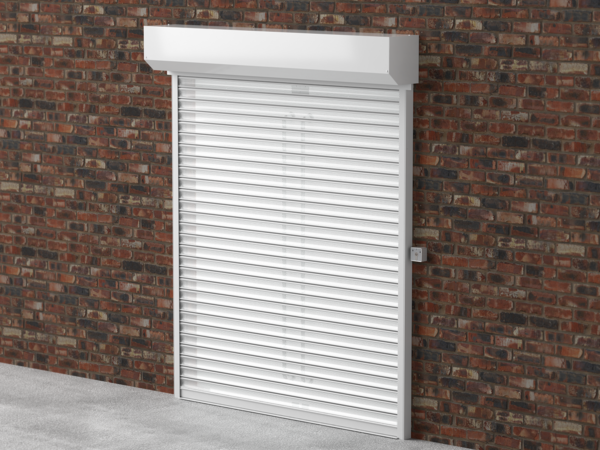

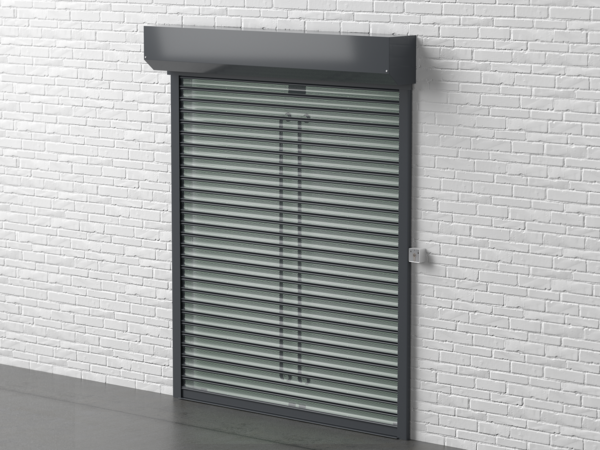

The RSA75 Perforated Steel Security Shutters is the most popular shutter for Offices and Shops.   Its uses the galvanised steel Perforated curtain (18% Vision) with the aluminium Box and Guides.  The Aluminium guides are neater and more aesthetically pleasing, compared to the traditional steel box and angled guides.     The 75mm curved steel laths, are available in 22G (0.7mm) or 20G (0.9mm) depending on the size of the roller shutter and the security level required.   The laths are also available Solid and Punched (25% Vision).

The Perforated Steel Security Shutters is available Manual Operation, but due to the heavy laths, it is normally Electrically operated.  The tube motor is fitted inside the barrel, which helps to keep the Box sizes smaller.  The Tube Motos come with a 5 year manufactures parts warranty.    Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a full automation system, including Timers, Remote Control Systems, and Smart Hubs eg; Alexa.

The Perforated Steel Security Shutters come Powder Coated in White, Brown, Black or Cream as standard.  The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Application Commercial, Retail
Product Rating Medium to High
Material Steel and Aluminium
Lath Types Perforated - 18% Vision
Manual Operation Spring & Lock
Electric Operation Single Phase - Tube Motor
Max Width 5800mm (Depending on Height)
Max Height - Manual 2800mm (Depending on Width)
Max Height - Electric 3400mm (Depending on Width)
Box & Guides - Standard Finish White, Brown, Black, Cream
Curtain - Standard Finish White, Brown, Black, Cream
Lead Times 10 working days


    SLATS SPECIFICATION
 Description

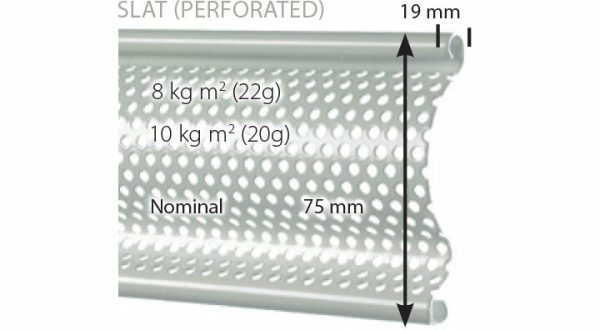

The standard Perforated Galvanised Steel Laths are 75mm high, curved single skin laths.  The perforations provide 18% Vision.




Solid laths are available at no extra cost.  The perforated and Solid laths can be mixed to provide additional security.





Punched Laths are available at an additional cost - Provides 32% Vision.



At the Bottom of the Curtain you get the Option of a "T" Rail or "L" Rail.   "T" Rail comes as standard.   You can fit a Rubber Bottom Seal or Safety Edge to the bottom of the "L" and "T" Rail, at an extra cost.




    BOX SPECIFICATION
 Description
Roll formed Aluminium in two sections; top and bottom boxes.  Bottom Box removable for installation and maintenance and is chamfered at 45o.  The shutter box is assembled on steel endplates.

 Box Sizes Internal
Clear opening height (to underside of box)
1999 mm  -   250 mm box
2799 mm  -   300 mm box
3400 mm  -   350 mm box

Box Sizes External
Clear opening height (to underside of box)
1199 mm  -   250 mm box
2399 mm  -   300 mm box
3400 mm  -   350 mm box



    GUIDE RAIL SPECIFICATION

Description
Extruded Aluminium Guides with an integral box section for reinforcement and to facilitate fixing.  High density 4mm pile brush seals for quiet and smooth operation.

Construction: Extruded Aluminium with an integral box section for reinforcement and to facilitate fixing.

Dimensions:   UPH 140 60mm wide x 27mm deep (205mm box only)

                         UPH 240 75mm wide x 27mm deep (250mm or 300mm box)

                         UPH 250 90mm wide x 34mm deep (250mm or 300mm box)




    OPERATION
 Description
The Traditional Shutter is available both manually and electrically operated using a tubular motor inside the barrel.  The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.




     SPRING LOADED

      Roller Shutters usually installed mainly over doorways or
      Serveries are raised up and down by lifting and lowering the
      curtain by hand.  The roller shutter has a spring in the barrel
      which helps lifting the shutter.  As standard a central bottom
      lath lock is provided which has a key in the bottom lath and
      bolts shoot into the guides rails at each side.  The Bottom
                          lath lock can be operated from both sides but has a secure
                              and non-secure side to the lock.  Optional bullet locks are
                              available which are pins that go through the guide rails each side.



      ELECTRIC  - (N.B. minimum shutter width 750mm)

      Electric shutters are usually fitted on larger openings where
      Manual Operation is not suitable or where the operator
      requires an easy, clean and user friendly type of operation.
      Single phase tubular motors are enclosed within the barrel
      giving full protection from the elements.  Electric Roller
      Shutters can be controlled individually or grouped to one
                              controller.  The controllers available include internal rocker
                              switch, security key switch or Remote Control.  Manual
                              overrides are available on Electric Roller Shutters which
                              allow the shutter to be operated when the power to the
                              shutter has failed.


The RSA75 Roller Shutter is available in the following standard colours.   Band A, Band and Band C are an additional cost.






From only £431.00
