Security Rated Steel Doors : LPS 1175 SR1 Steel Doors

LPS 1175 SR1 Steel Doors

Why use the LPS 1175 Issue 7 SR1 Steel Security Doors?

The LPS 1175 Issue 7 SR1 security door is a steel door that is independently attack tested by BRE. This is the entry level of rated steel doors available.

The dorset is attacked with a variety of hand tools fora maximum of 10 minutes, with a maximum working time of 1 minute. If entry through the door is not gained then the dorset receives the LPS 1175 Issue 7 SR1 level rating.

To meet the required certification the door has to be provided within the scope that has been tested. If the specification you require falls out of the scope, we can still provide a door to the same spec but it will not be certified.

Large range of options and colours available.

Key Features
Application	Domestic, Commercial, Retail, Warehouses

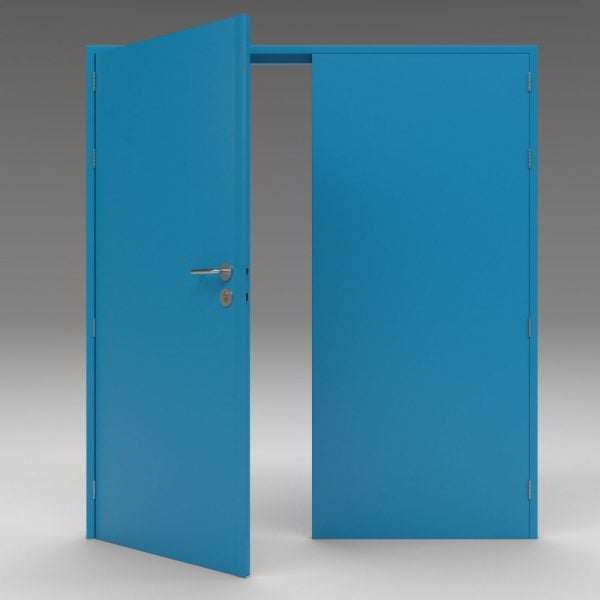

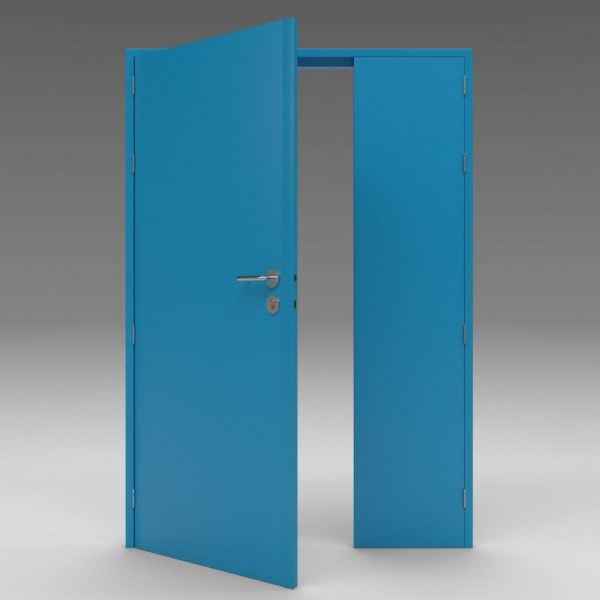

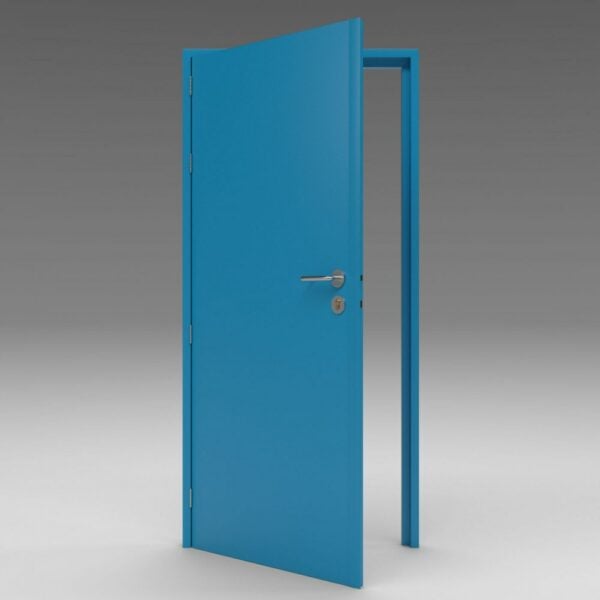

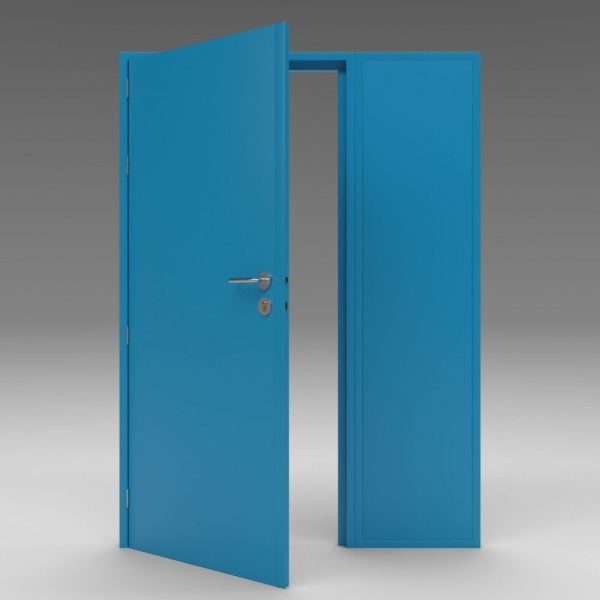

Door Type	Available as Single, Leaf & Half or Double Dorsets
Security Rated	LPS 1175 Issue 7 SR1
Fire Rated	1-4 hours subject to hardware and options selected
Material	Galvanised or Zintec Steel dependent on door size and type
Locks or Furniture	Personnel or Fire Exit Furniture Available
Glazing Options	No
Louvred Options	No
Lead Times	12 - 15 working days subject to current capacity

Certified Door Sizes

Structural Opening sizes without over panel -

Structural Opening sizes with over panel -

Frame Construction

Material:- 1.5mm Galvanised steel

Profile:- Single rebated frame - Fully Welded

Reinforcing:- Reinforcing around the lock, hinges and fixing points

Leaf Construction

Material:- 1.5mm Galvanised steel external face and internal door face.

Size:- 45mm thick door leaf with an Anti jemmy strip on the external lock side to protect the lock from attack.

Core:- Reinforcing bars welded horizontally and vertically within the door leaf. Core infills vary.

Locking Options

Manual Key Driven Hardware

Emergency Fire Escape Hardware

Electromechanical Hardware is not available on LPS 11 75 SR1 Steel Doors. For electromechanical hardware, please refer to LPS 1175 SR2, SR3 or SR4 Steel Door product pages.

Hinges

Stainless steel dog bolt security hinges. The amount of hinges varies on the size of the doors.

Threshold Detail

Personnel or Fire Exit Doors - Steel Cill
