Industrial High Speed Curtains

Industrial High Speed Curtain

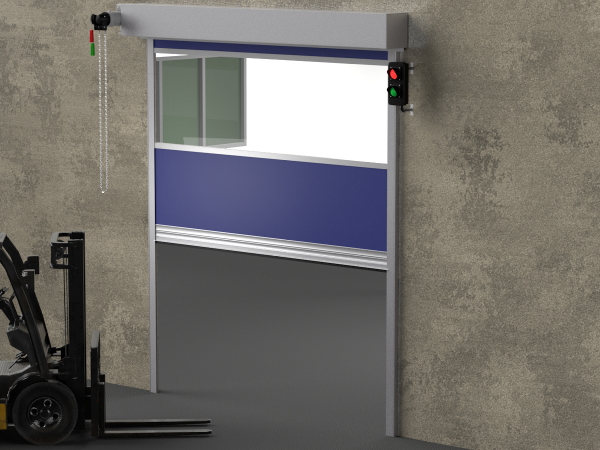

Why choose the Industrial High Speed Curtain?

The Industrial High Speed Curtain is ideal when you are trying to reduce heat loss with a high volume of traffic going through the door. The High Speed Curtain does operate quicker than a High Speed Roller Shutter and it uses a smaller box. The curtain is a strong flexible fabric, with the option of vision windows, ideal for Pedestrian and Vehicle traffic. The high speed curtains also have the option of self repair. If hit by an object and knocked of the guide rails, it self repairs by opening and closing curtain.

The Industrial High Speed Curtain is only available with 3 Phase Direct Drive motors. The motors have been specially designed for High Usage and to run at high RPM. We also have a large of controls and sensors, for example, Radar Sensors for Fork Lift Traffic, Traffic Lights and Safety devices.

The Industrial High Speed Curtain comes in a range of standard colours. The Box and Guides, come Galvanised as standard.

Key Features
Application	Industrial, Warehouses
Product Rating	High Speed
Material	Fabric
Lath Types	Solid or Vision
Electric Operation	3 Phase
Max Width	12000mm
Max Height - Electric	6000mm
Box & Guides - Standard Finish	Galvanised
Curtain - Standard Finish	5 Standard Colours
Lead Times	15-20 working days

Limited Side Room

Description

For logistic areas and supermarkets
Internal Use Only
Tube Motor - ideal for limited side space
Max Width - 2750mm
Max Height - 3000mm
Max Opening Speed - 1.5m/sec
Max Closing Speed - 0.8m/sec

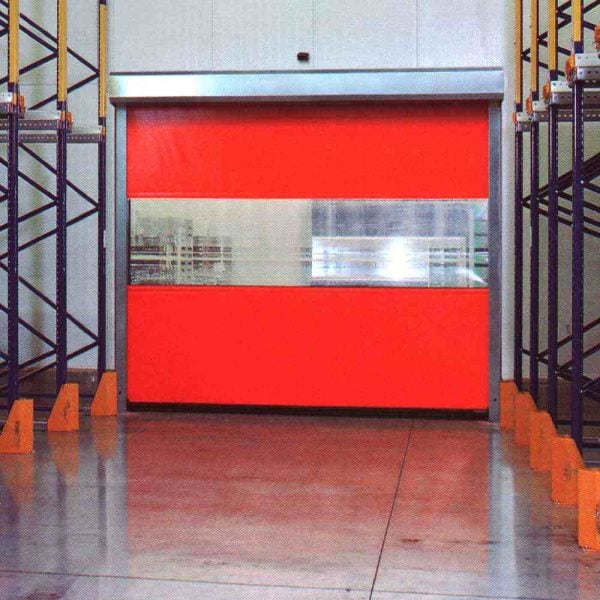

General Purpose

Description

For logistic areas and supermarkets
Internal Use Only
3 Phase Direct Drive Motor
Anti Crash Soft Edge Technology
Max Width - 5000mm
Max Height - 5000mm
Max Opening Speed - 1.5m/sec
Max Closing Speed - 0.8m/sec

External Fitting

Description

For logistic areas and supermarkets
Internal or External Use
3 Phase Direct Drive Motor
Max Width - 10000mm
Max Height - 6250mm
Max Opening Speed - 0.8m/sec
Max Closing Speed - 0.4m/sec
Wind Loading - Class 3 - 115km/h

Cold Stores

Description

For Cold Stores and Deep Freeze Stores
Internal Use Only
Insulated Curtains - 0.3 and 1.2W/(m2k)
3 Phase Direct Drive Motor
Max Width - 4000mm
Max Height - 4500mm
Max Opening Speed - 1.5m/sec
Max Closing Speed - 0.5m/sec

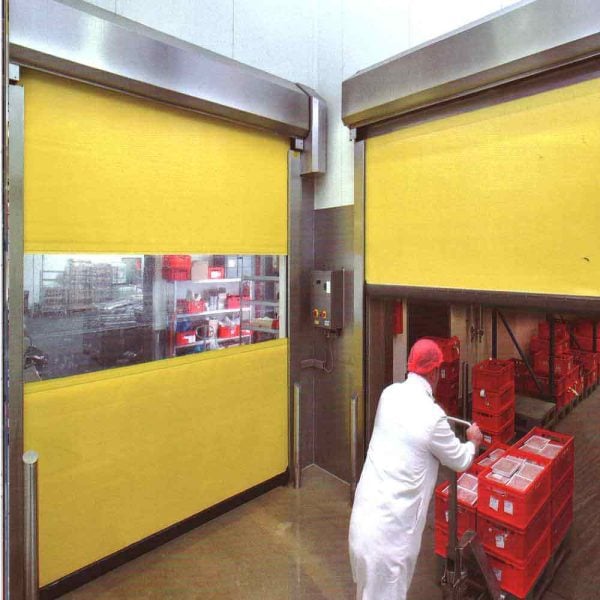

Food Industry and Wet Areas

Description

For Food Preparation and Wet Areas
Internal Use Only
Easy Clean Stainless Steel
3 Phase Direct Drive Motor
Max Width - 2500mm
Max Height - 3000mm
Max Opening Speed - 2m/sec
Max Closing Speed - 0.8m/sec

OPERATION

Description

Operated with a High Speed, High Usage 3 Phase 415V Direct Drive Motor with Emergency Hand Chain Override.

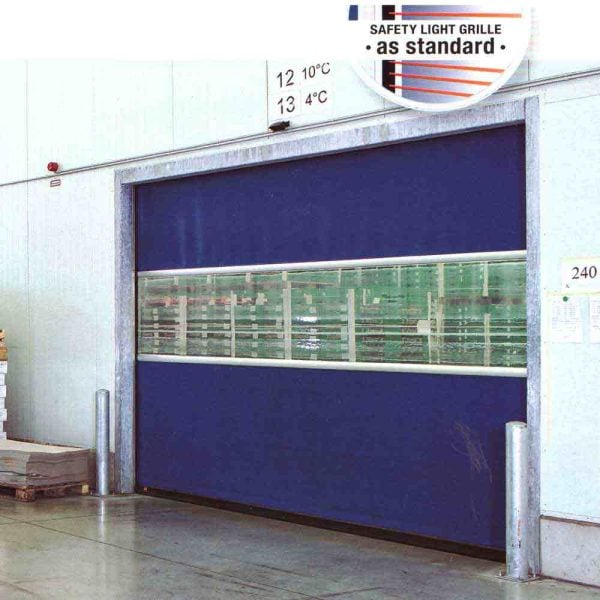

The safety light grille monitors the closing zone of the door up to a height of 2500mm. A closing edge safety device is not required. Fitting in the frame also reduces the risk of collision damage.

The High Speed Doors come with a frequency converter control as standard - for fast, safe and low wear door travel. High Opening and Closing speeds help you to optimise your operations and reduce heat losses and draughts at the workplace. In addition, it relieved the entire door mechanism through smooth starting and braking action which considerably extends the life of the door.

No Down times resulting from a crush thanks to the Soft Edge Bottom Profile. The innovative Soft edge door technology prevents damages and resulting downtime on the door system. Extensive repairs, such as those with rigid bottom profiles, do not become necessary. Soft Edge ensures trouble-free operation and production process.

Radio Crash Switch is concealed in the Soft Edge bottom profile. If the bottom profile is pushed out of the side guides by a crash, the radio crash switch transmits a signal to the control and the door is stopped immediately. Thanks to this technology, the door can be operated for up to 3 years without the need for maintenance.
