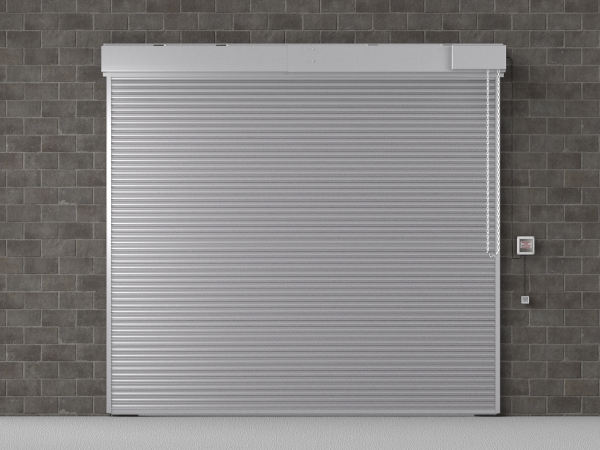

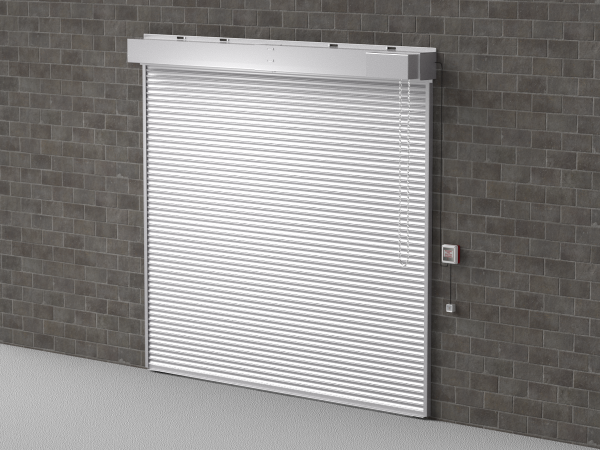

Industrial Fire Shutters

Security Features

•  Galvanised Steel Construction: Built with robust materials to resist forced entry and corrosion.
• Heavy-Duty Curtain Slats: Single-skin 76mm curved steel slats in 0.7mm, 0.9mm, or 1.2mm thickness options, providing high impact resistance
• Reinforced Bottom Rail: Standard 'T' section bottom rail made of galvanised steel for enhanced closure strength
• Wide Span Capability: Designed to secure openings up to 12 metres wide—ideal for large industrial zones

Safety Features

• Manual Chain Override: Enables manual operation in the event of power failure or system fault.
• CE Marked: Fully compliant with all applicable European directives for safety and performance.
• External Motor Positioning: Easy access for maintenance, though better suited for larger spaces due to size and projection.


Fire Safety

• Certified Fire Protection: Independently tested to BS EN 476-22 and BS EN 1634, offering 60, 120, or 240 minutes of fire containment

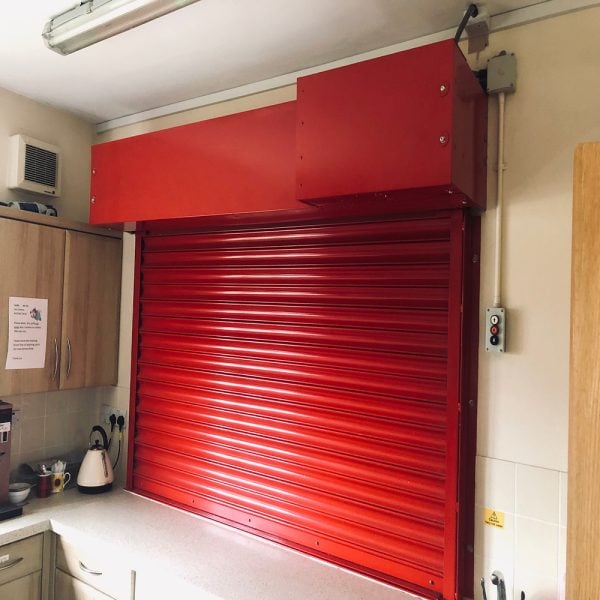

• Fusible Link Mechanism: Melts at 67°C, automatically closing the shutter in the event of a fire, even if there is no power supply
• Solenoid Release Integration: Allows connection to fire alarm systems for automatic descent upon alarm activation
• Guide Channels for Fire Sealing: 50mm and 65mm galvanised U-channel guides create a tight seal to help control the spread of smoke and flame
• Structural Compatibility: Can be mounted to masonry, concrete, or protected structural steelwork, supporting diverse fire safety designs.

Design & Customisation

• Standard Finish: Supplied in a galvanised steel finish for industrial durability.
• Optional Powder Coating: Available in a wide selection of RAL and BS colours (Bands A, B, C) for bespoke architectural aesthetics
• Built for Scale, Not Discretion: External motor mount makes it ideal for large-scale applications rather than compact environments

   .

Operation & Controls

•    Industrial-Grade Motors: Available in both Single Phase (240V) and Three Phase (415V) configurations.
• Integrated Control System: Includes push button controls, fusible link, solenoid release, and manual chain override.
• Fire Alarm Connectivity: Compatible with interface panels for automatic descent during fire alarm activation
• Fail-Safe Operation: Will still operate via fusible link even in the absence of power supply.


Installation & Warranty

•    Made-to-Measure Production: Each shutter is custom-built to fit the intended opening and site dimensions.
• Flexible Fixing Options: Can be installed using Face Fix or Reveal Fix with standard guide channels from 50mm to 65mm (see page 5 diagrams)
• Compatible with Multiple Structural Supports: Suitable for fitting to masonry, concrete, and protected structural steelwork, ensuring wide applicability in industrial construction settings.
• Support Frame Option: Required for oversized shutters to maintain structural integrity.


Lead Time & Common Applications

•   Lead Time: Typically 15-20 working days, subject to powder coating or high-volume orders

•   Typical Applications:

  •        Warehouses & Distribution Hubs
  •     Retail Centres & Shopping Malls
  •     Industrial Plant Rooms
  •     Fire Compartments in Manufacturing

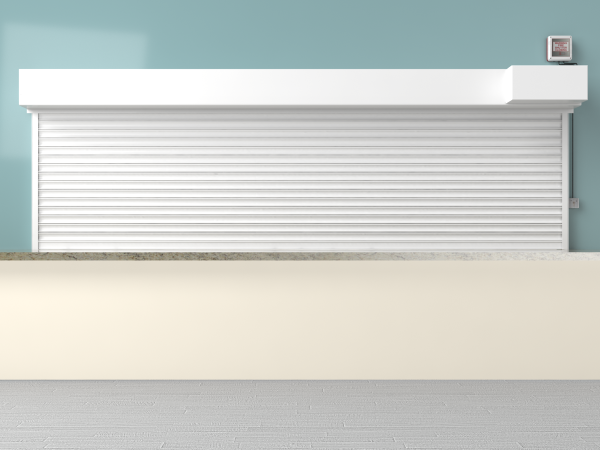

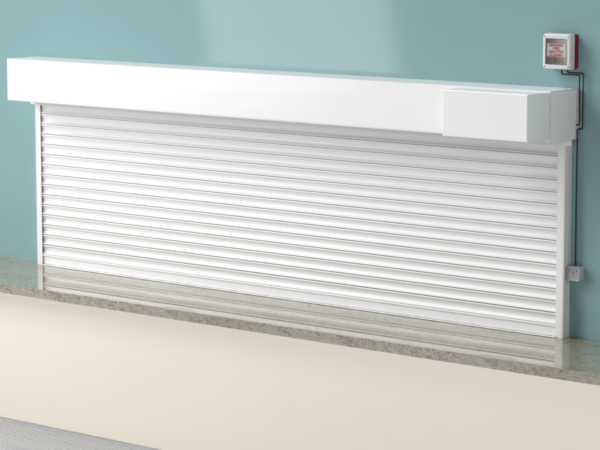

  •     Kitchen Serveries in Commercial Premises
