High Security - LPS1175 Security Level 1
Why choose the High Security Metal Roller Shutter?

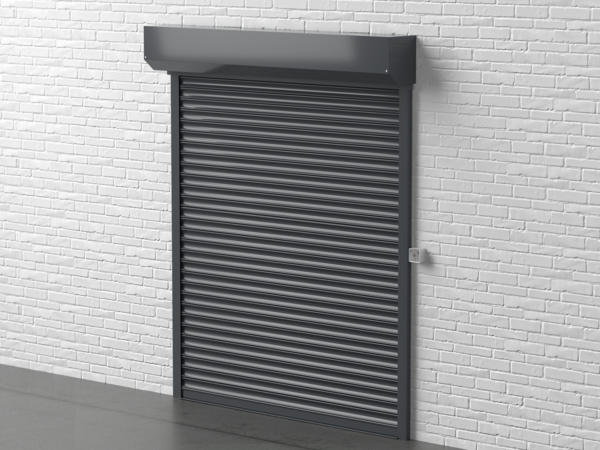

The RS7501 High Security Metal Roller Shutter is based on the Commercial Metal Shutter with some added security features and is ideal where a higher level of security is required. It uses the galvanised steel curtain, Box and Guides. The 75mm curved steel laths, are available in Solid or Perforated (18% Vision). Independently Tested by the LPCB to LPS1175 Security Rating Level 1 - Certified for Installation Internally. This is a Secured By Design product, which is a Police and Insurance preferred specification.
The High Security Metal Roller Shutter is available Manual Operation, but due to the heavy laths, it is normally Electrically operated. To achieve the SR1 rating, the electric operation comes with a Manual Bottom Lath Lock for additional security. Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a fully automation system, including Timers, Remote Control Systems and Smart Hubs eg; Alexa.
The High Security metal roller shutters are Galvanised or Powder Coated in White, Brown, Black or Cream as standard. The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.
SLATS SPECIFICATION
Description
The standard Galvanised Steel Laths are 75mm high, curved single skin laths. The laths are available in different thicknesses depending on the size of the shutter and the security required - 22G (0.7mm), 20G (0.9mm) and 18G (1.2mm).

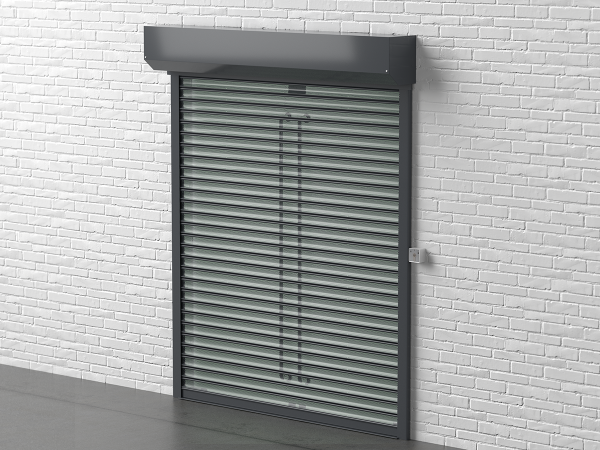

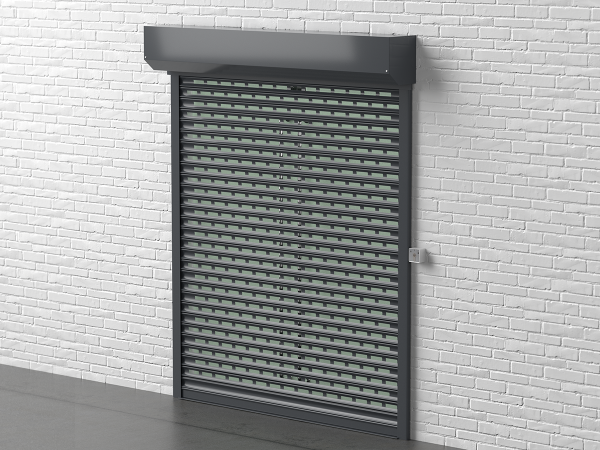

Perforated Laths are available at an additional cost - Provides 18% Vision.
At the Bottom of the Curtain, you get the Option of a "T" Rail or "L" Rail. "T" Rail comes as standard. You can fit a Rubber Bottom Seal or Safety Edge to the bottom of the "L" and "T" Rail, at an extra cost.
BOX SPECIFICATION
Description
3 mm Galvanised Steel end plates are provided as standard.
Shutter Hoods and Fascias are not provided as standard, but are available at an extra cost. Hoods will be supplied in sleeved sections which will need to be joined on site during the installation. Alternatively, hoods can be supplied in one section up to 6 metres long but this will extend production time and delivery costs.
Shutter Hoods and Fascias are not provided as standard, but are available at an extra cost. Hoods will be supplied in sleeved sections which will need to be joined on site during the installation. Alternatively, hoods can be supplied in one section up to 6 metres long but this will extend production time and delivery costs.
Box Sizes Internal
Clear opening height (to underside of box).
250 mm - 450 mm
As this varies depending on the width, please contact us for the exact clear opening height for the particular width of shutter you require.
Box Sizes External
Clear opening height (to underside of box)
250 mm - 450 mm
As this varies depending on the width, please contact us for the exact clear opening height for the particular width of shutter you require.
GUIDE RAIL SPECIFICATION
Description
Traditional Guides are supplied with galvanised Steel guide angle. The angle can be inset or outset if preferred, this must be clearly stated on your order. The thickness of angle varies as below;
There are two types of Guide Rails - Standard "U" Channel, is provided as standard and comes is different sizes, depending on the size of the shutter.
Wind Lock Lock Guides are available at an extra cost. Ideal when the shutter is fitted is windy locations or for extra security.
OPERATION
Description
The Traditional Shutter is available both manually and electrically operated using a tubular motor inside the barrel. The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.
SPRING LOADED
Roller Shutters usually installed mainly over doorways or
Serveries are raised up and down by lifting and lowering the
curtain by hand. The roller shutter has a spring in the barrel
which helps lifting the shutter. As standard a central bottom
lath lock is provided which has a key in the bottom lath and
bolts shoot into the guides rails at each side. The Bottom
lath lock can be operated from both sides but has a secure
and non-secure side to the lock. Optional bullet locks are
available which are pins that go through the guide rails each side.
ELECTRIC - (N.B. minimum shutter width 750mm)
Electric shutters are usually fitted on larger openings where
Manual Operation is not suitable or where the operator
requires an easy, clean and user friendly type of operation.
Single phase tubular motors are enclosed within the barrel
giving full protection from the elements. Electric Roller
Shutters can be controlled individually or grouped to one
controller. The controllers available include internal rocker
switch, security key switch or Remote Control. Manual
overrides are available on Electric Roller Shutters which
allow the shutter to be operated when the power to the
shutter has failed.

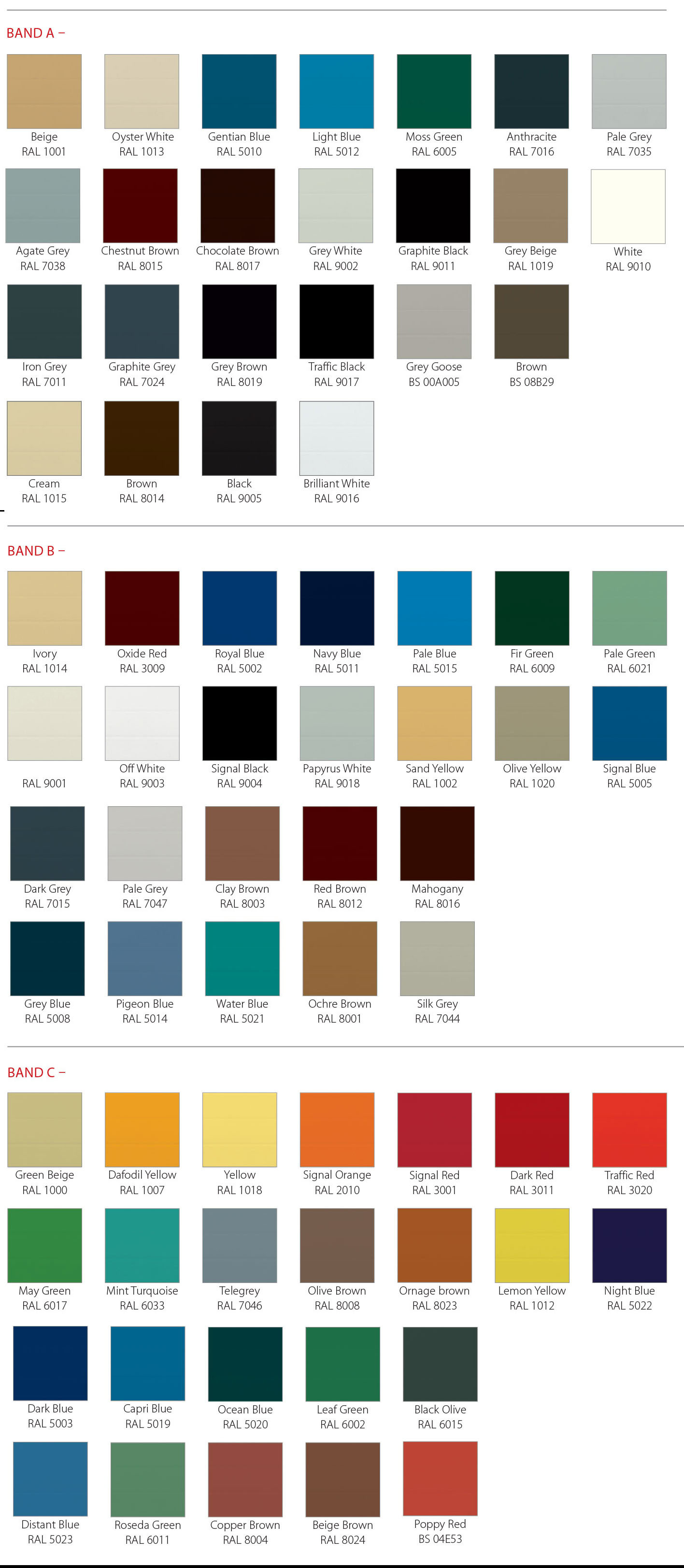

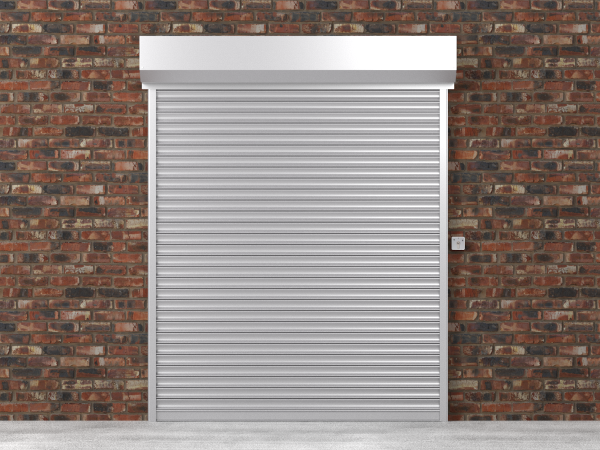

The Traditional Commercial Steel Roller Shutters is available Galvanised finish or Powder Coated one of our 4 standard colours.
Band A, Band and Band C are an additional cost.
- Stock: Made to Order
From only £816.00
Based on 1000mm x 1000mm
ESTIMATED LEAD TIMES -10 - 15 WORKING DAYS
(EXCLUDING DELIVERY)
Would you like an Instant Quote?
Please follow the steps below to build a product to suit your requirements.
Product size Guide
Electric - Tube Motor
- Min Width - 1000mm
- Max Width - 6000mm
- Min Height - 1000mm
- Max Height - 4800mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
