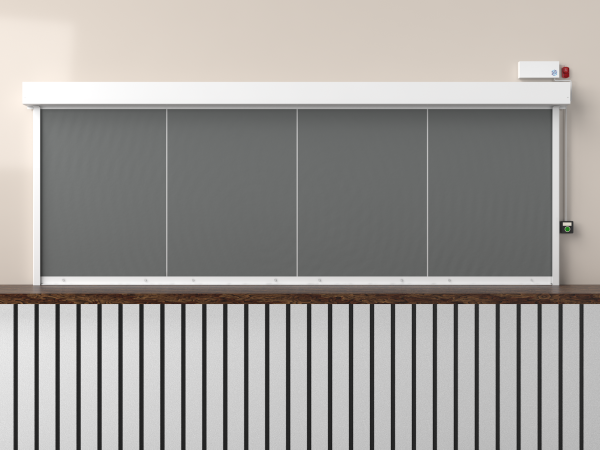

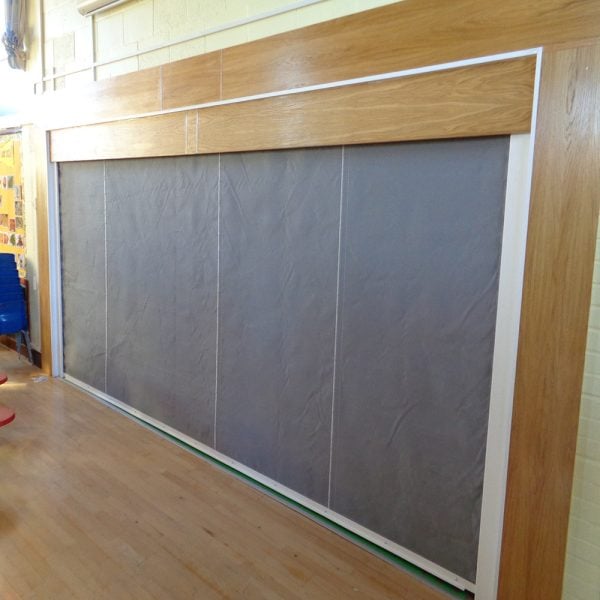

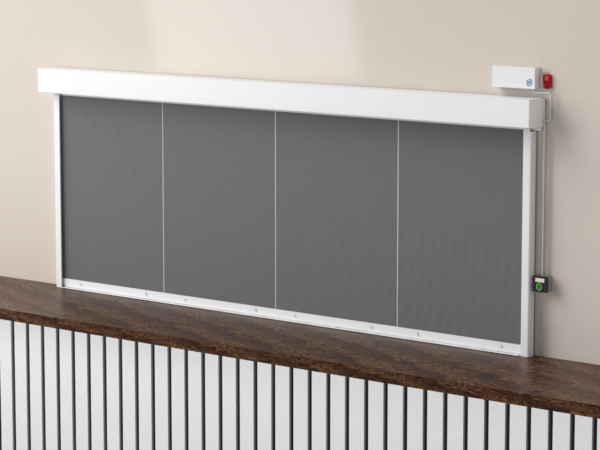

Fire Curtains
Why choose the Fire Curtain?
Fire Curtains are designed to stop the spread of fire for up to 2 hours. They are common on Reception Counters, Kitchen Serveries, Stores, Lifts and open plan residential applications. The advantage of a Fire Curtain is that it has a Fabric Kevlar curtain, which means it coils into a smaller box, compared with a Fire Shutter. This is ideal when you are limited on headroom. A fire curtain is designed to be in the up position at all times and it will only close in a fire situation. The shutters have been independently tested and certified by Exova to Fire Standards BS476 and BS EN 1634.
The Fire Curtains are only available with a Single Phase Tube Motor. The fire curtain is supplied as standard with a control panel which includes the Fire Alarm Relay, Staged Decent and Battery Backup. A switch can be fitted to the fire curtain to reset it after a fire activation. There is also the option of an emergency release button, in case someone gets trapped behind a closed fire curtain.
The Fire Curtain comes as standard in a Grey Kevlar finish. The Box and Guides are Powder Coated White as standard. The Box and Guides can be Powder Coated any BS or RAL colour to match your colour scheme.
SLATS SPECIFICATION
Description
The Curtain is constructed of a stainless steel wire reinforced glass fabric intended for applications exposed to high temperatures. Grey Finish as standard.
BOX SPECIFICATION
Description
3mm Galvanised steel end plates with galvanised steel 3 side hood as standard. Hoods will be supplied in sleeved sections which will need to be joined on site during the installation. Alternatively hoods can be supplied in one section up to 6m long but this will extend production time and delivery costs. Fascias and 2 sided hoods are available at no extra charge.
Box Sizes
200 mm - 220 mm - As this varies depending on the height.
GUIDE RAIL SPECIFICATION
Description
100 mm x 55 mm deep two pieces galvanised steel guide assembly which can be face or reveal fixed. The guide rails are designed to allow for expansion when acting as a fire barrier. The guide rail consists of an inner section which is face or reveal fixed into position. The outer section conceals the fixings and is fixed to the inner section with rivet nuts.
OPERATION
Description
The Fire Curtain is powered using a 24V DC tubular motor which is supplied as standard with a 4m 7 core cable. This product is not designed for frequent use. This product is designed to remain open during normal use and only to be closed during a test or an emergency situation. The motor and control panel features controlled descent or gravity fail safe in the event of a signal or fire alarm or power failure.
DELUXE PANEL -
The advanced control Panel includes;
- Alarm input
- Emergency Override input for Emergency Escape or Firemans Switch
- Audio/Visual Output
- 24v Battery Backup
- Split Drop of the curtain to allow emergency access
- Low Battery automatic close feature
- Group Control facility
- Safety Device inputs
- Integrated Radio Receiver
The Fire Curtain comes in a standard finish of Grey Kevlar.
The Box and Guides can be Powder Coated one of our Stock Colours below. Depending on the Band A, B or C will depend on the additional cost.
From only £2,357.00
Would you like an Instant Quote?
Please follow the steps below to build a product to suit your requirements.
Product size Guide
Electric - Tube Motor
- Min Width - 1000mm
- Max Width - 6000mm
- Min Height - 1000mm
- Max Height - 5000mm
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for you Click here
