Why choose the Compact Fire Roller Shutter?

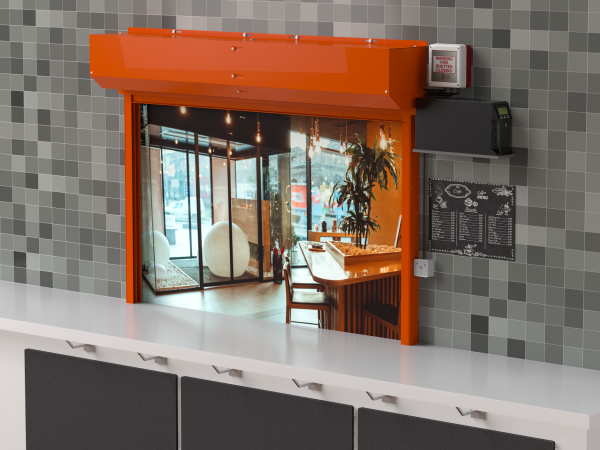

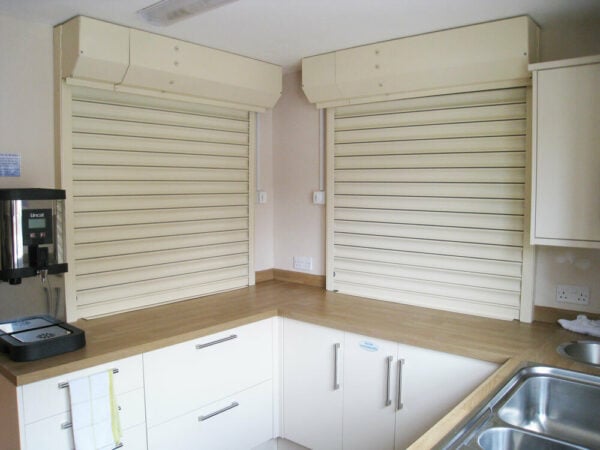

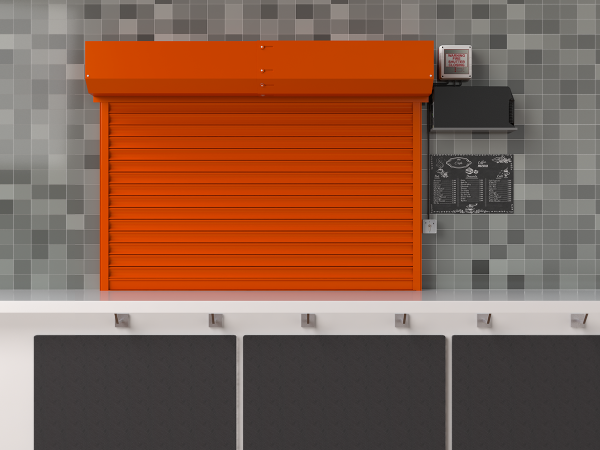

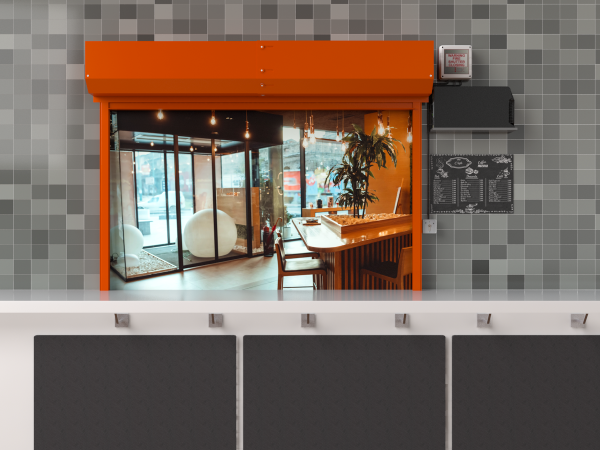

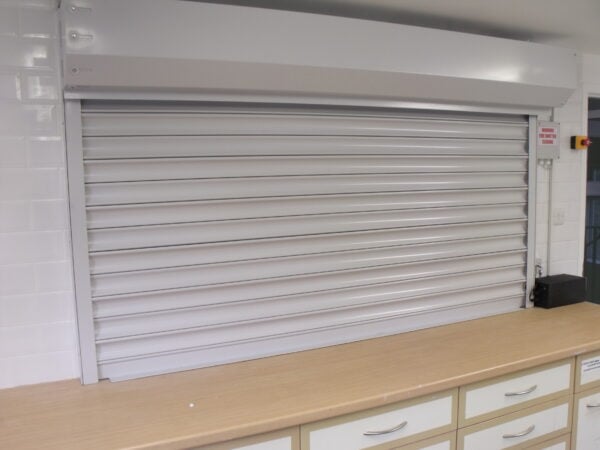

Our compact Fire Shutters are designed for smaller openings and to stop the spread of fire from 30mins up to 4 hours.   They are common on Reception Counters, Kitchen Serveries, Stores and any other opening on an escape route.    The advantage of a Fire Shutter over a Fire Curtain, is that it can also be used on a daily basis for security.  The compact fire shutter is available with the standard 75mm curved steel lath or a compact 50mm Flat lath at an extra cost. The shutters have been independently tested and certified by Exova to Fire Standards BS EN 16034-1:2014+A1:2018, Warrington Fire report 413395 Issue 2.  The compact fire shutter is one of the 1st fire shutters on the market to be CE marked to BE EN 13241-1:2014 and fully compliant with the new regulations that came into place on 1st November 2019.

Please note that under the new regulations, the fire shutters can only be certified if they are fitted into 6mm thick steel work or blockwork.  The structure must be able to carry the weight of the shutter (approx 25KGS m/2) and must be fire rated to the same as the fire shutter.


The Compact Fire Shutters are only available with a Single Phase Tube Motor and is available with 3 control options.  For total peace of mind, the fire shutters have to be fully automated, so they will automatically close in the event of fire activation.


The Compact Fire Shutters come as standard in Galvanised finish.  They can be Powder Coated any BS or RAL colour to match your colour scheme.



Key Features
Application Commercial, Retail, Serveries
Product Rating Fire Rated 1- 4 hrs
Material Galvanised Steel
Lath Types Solid
Electric Operation Single Phase - Tube Motor
Max Width 7000mm (Depending on Height)
Max Height - Electric 4600mm (Depending on Width)
Box & Guides - Standard Finish Galvanised
Curtain - Standard Finish Galvanised
Lead Times 10 working days


    SLATS SPECIFICATION
 Description
The standard Galvanised Steel Laths are 75mm high, curved single skin laths.  The laths are available in different thicknesses depending on the size of the shutter and the security required - 22G (0.7mm), 20G (0.9mm) and 18G (1.2mm).








At the Bottom of the Curtain, you get the  "T" Rail comes as standard.




    BOX SPECIFICATION
Description
3 mm Galvanised Steel end plates are provided as standard.

Shutter Hoods and Fascias are not provided as standard, but are available at an extra cost.   Hoods will be supplied in sleeved sections which will need to be joined on site during the installation.  Alternatively hoods can be supplied in one section up to 6 metres long but this will extend production time and delivery costs.

Box Sizes Internal
Clear opening height (to underside of box).
250 mm - 450 mm
As this varies depending on the width, please contact us for the exact clear opening height for the particular width of shutter you require.

Box Sizes External
Clear opening height (to underside of box)
250 mm - 450 mm
As this varies depending on the width, please contact us for the exact clear opening height for the particular width of shutter you require.




    GUIDE RAIL SPECIFICATION
 Description
The guides can be fitted on the face of the opening or within the recess.  Please see below the different types of fixing;














    OPERATION
 Description
The Compact Fire Shutters are only available with a Single Phase Tube Motor. The fire shutters are availble with 3 Control Options.

Fire Shutter Package 1 - This is used when you have a Fire Alarm system that provides Audio and Visual Warning.

PACKAGE INCLUDES:
  • Key Switch
  • Manual Override
  • Battery Backup and Bracket
  • Fire Alarm Relay - NO Audio Visual Warning


Fire Shutter Package 2 - This is used when you have a Fire Alarm system that DOESN'T provide Audio and Visual Warning.

PACKAGE INCLUDES:
  • Key Switch
  • Manual Override
  • Battery Backup and Bracket
  • Deluxe Fire Panel  - WITH Audio Visual Warning


Fire Shutter Package 3 - This is used when you DON'T have a Fire Alarm system.

PACKAGE INCLUDES:
  • Key Switch
  • Manual Override
  • Battery Backup and Bracket
  • Deluxe Fire Panel  - WITH Audio Visual Warning
  • 1 x Smoke or Heat Detector

The Fire Shutter are available Galvanised finish or Powder Coated one of our 4 standard colours.




Band A, Band and Band C are an additional cost.






From only £742.00
