The RA4 Roller Shutter is one of our most popular roller shutters, as it uses a compact shutter box and guides, providing a neat solution. It also provides a high level of security, using a Twin Walled aluminium laths. Ideal for Bars, Reception Counters and Serveries where headroom is limited. The compact bar servery shutter is also available with Perforated 22% Vision and Punched Laths 44% Vision, at an additional cost.
The Compact Bar Servery Shutter is available Manual Operation - Belt Winder, Rod Crank and Spring and Lock. Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a fully automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.
The Compact Aluminium Roller Shutter comes powder coated as standard in White, Brown, Black or Cream as standard. The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.
Bars, Reception Counters and Kitchen Serveries
Rod Crank, Belt Winder, Spring and Lock
Single Phase - Tube Motor
4000mm (Depending on Height)
Max Height - Manual
2800mm (Depending on Width)
Max Height - Electric
5000mm (Depending on Width)
Box & Guides - Standard Finish
White, Brown, Black, Cream
Curtain - Standard Finish
White, Brown, Black, Cream
7-10 working days
The standard RA4 Lath is a double skin extruded Aluminium non vented slat fitted with anti vandal wind locks.
Punched and Perforated Laths are available at an additional cost.
Roll formed Aluminium in two sections; top and bottom boxes. Bottom Box removable for installation and maintenance and is chamfered at 45o. The shutter box is assembled on steel end plates.
Clear opening height (to underside of box)
1535 mm - 165 mm box
1820 mm - 180 mm box
2595 mm - 205 mm box
GUIDE RAIL SPECIFICATION
The standard Guide rail is the H30 Extruded Aluminium Guide with an integral box section for reinforcement and to facilitate fixing. High density 5mm pile brush seals for quiet and smooth operation. The H40/S Guide rail is the Heavy Duty Guide which has Wind Locks and is an extra cost.
The RA4 is available both manually and electrically operated using a tubular motor inside the barrel. The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.
SWIVEL BELT WINDER - for shutters up to 15kg
This type of operation is used when the roller shutter is fitted on the outside of the property and is lowered/raised using the Swivel Belt Winder from the inside. The grey belt is pulled up and down to lower and raise the shutter. The swivel winder coils the belt when it is pulled to open the shutter. The belt is 14mm wide and grey in colour and a guide tube to protect the belt through the building wall. The shutter locks by using the locking spring which connects the curtain to the barrel and lock out in the back of the shutter box.
GEARED BELT WINDER- for shutters between 15kg and 25kg
This is the same as the Swivel Belt Winder but uses a crank handle to raise and lower the shutter. The Geared Winder works at 1:3 ratio with removable handle. The shutter locks by using the locking spring which connect the curtain to the barrel and lock out in the back of the shutter box.
ROD CRANK OPERATION - for shutters up to 25kg
This type of operation is usually on windows where the shutter is external and is operated internally using a geared rod crank handle which hangs vertically and secures into a clip when not in use. The shutter is lowered and raised by turning the handle in a clockwise or anti clockwise direction. The shutter locks by using the locking spring which connect the curtain to the barrel and lock out in the back of the shutter box.
Roller Shutters usually installed mainly over doorways or Serveries are raised up and down by lifting and lowering the curtain by hand. The roller shutter has a spring in the barrel which helps lifting the shutter. As standard a central bottom lath lock is provided which has a key in the bottom lath and bolts shoot into the guides rails at each side. The Bottom lath lock can be operated from both sides but has a secure and non-secure side to the lock. Optional bullet locks are available which are pins that go through the guide rails each side.
ELECTRIC - (N.B. minimum shutter width 750mm)
Electric shutters are usually fitted on larger openings where Manual Operation is not suitable or where the operator requires an easy, clean and user friendly type of operation. Single phase tubular motors are enclosed within the barrel giving full protection from the elements. Electric Roller Shutters can be controlled individually or grouped to one controller. The controllers available include internal rocker switch, security key switch or Remote Control. Manual overrides are available on Electric Roller Shutters which allow the shutter to be operated when the power to the shutter has failed.

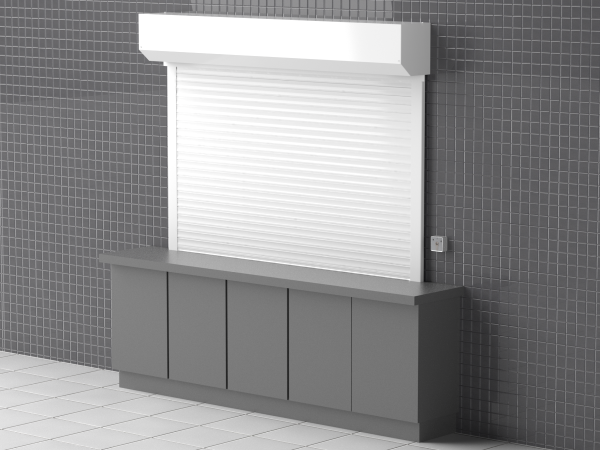

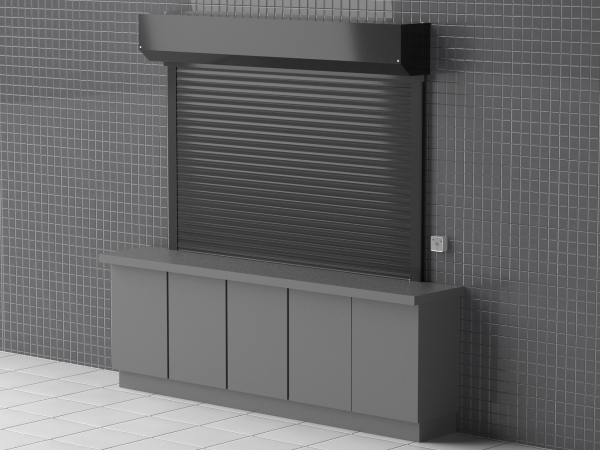

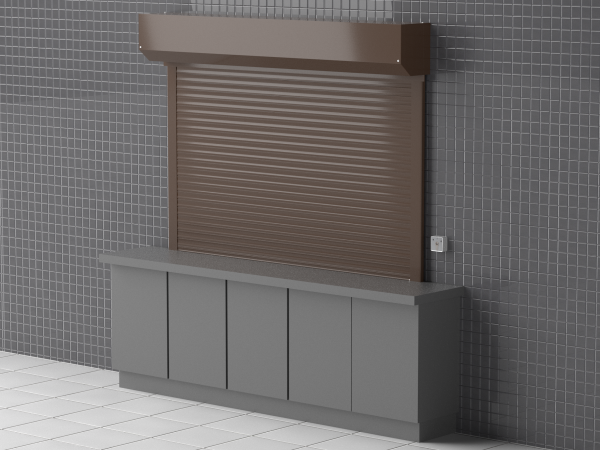

The RA4 Roller Shutter is available in the following standard colours. Band A, Band and Band C are an additional cost.
