Security Doors

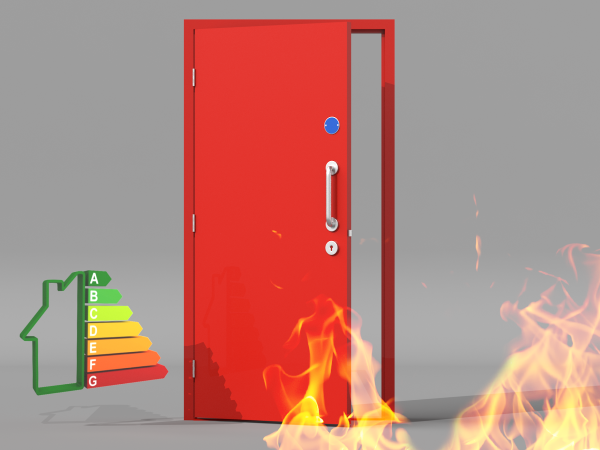

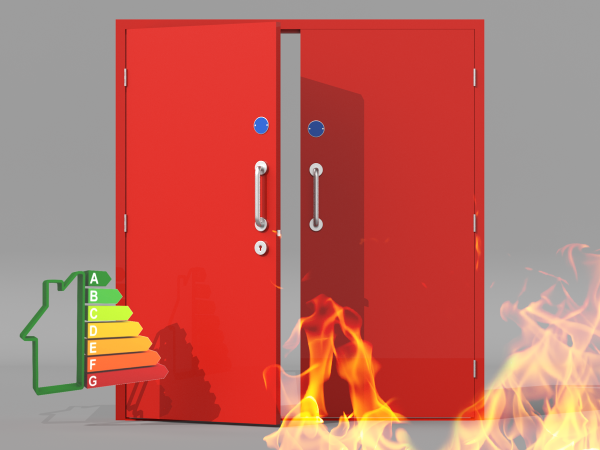

Thermal and Fire Rated Steel Doors

From only £1,715.00 Ex VAT (£2,058.00 inc VAT)
(Based on 1000mm x 2100mm)

Get in Touch Today

Enquire Online or give us a Call

Why use the Thermally Fire Rated Steel Doors?

Thermally Rated Steel Doors combine the essential benefits of fire resistance and thermal insulation into a single, high-performance doorset. Ideal for energy-conscious buildings that require robust passive fire protection, these doors help maintain internal climate control while protecting escape routes and compartmented areas from fire spread.

Designed for utility spaces, plant rooms, data centres, commercial buildings, and energy-efficient developments, these doors deliver long-term security, regulatory compliance, and cost-saving insulation in one engineered solution.

Benefits

  •    Dual Protection: Up to 4 hours fire integrity (E240) combined with U-values as low as 1.6 W/m²K — ensuring both fire containment and energy performance.
  •   Energy Efficient: Insulated cores and thermal breaks reduce energy usage, keeping heating and cooling bills in check.
  •   Fire Safety Compliance: Certified to BS EN 1634-1 for fire resistance; suitable for compartmentation and protected escape routes.
  •   Robust Steel Security: Made from reinforced galvanised steel, these doors offer long-lasting protection against intrusion and external wear.
  •    Weather & Draught Sealing: All models include brush or EPDM seals to prevent air leakage, water ingress, and temperature loss.


Operation

  •    Manual Operation: Ideal for plant rooms, escape routes, or infrequent access areas.
  •   Door Closers: Fire-rated overhead closers fitted as standard to ensure automatic closure in the event of a fire.
  •   Locking Options:
    •       Sashlocks and multi-point locking systems for general access
    •       Panic exit hardware for emergency escape
  •   Drop Seals: Automatically engage when closed to enhance thermal and acoustic seal.


Applications

  •    Boiler and Plant Rooms
  •   Energy Centres and Utility Buildings
  •   Commercial and Public Sector Buildings
  •   Data Centres and Communication Hubs
  •   Schools, Hospitals, and Local Authority Sites
  •   Fire Escape Doors for Thermal Zones


Certifications

  •    BS EN 1634-1: Fire resistance testing (up to 240 minutes)
  •    BS EN 14351-1: Weather resistance and thermal insulation
  •   CE and UKCA Marked: Hardware and doorsets
  •   Optional PAS 24 security rating on selected models

   Fire testing is conducted with full hardware installed to ensure certified performance under real-world conditions.



Information

Security Features

  •    Manufactured using high-strength galvanised steel, enhancing resistance to forced entry.
  •   Reinforced steel door leaf construction, often 44mm or 54mm thick, with internal reinforcements to deter tampering and impact attacks.
  •   Multi-point locking systems available, including 3-point and 5-point locking as standard or upgrade.
  •   Optional high-security locking hardware including:
    •       Sashlocks and deadlocks (CE-rated)
    •       Panic exit bars for emergency egress
  •   Certified to PAS 24 or EN 1627 security standards where required (project-dependent).
  •   Optional security accessories like anti-jemmy astragals, dog bolts, and security capping.


Safety Features

  •    Fire-rated up to E160, EI30, EI60, or EI120, depending on configuration.
  •   Independently tested and certified to EN 1634-1 for fire resistance.
  •   CE marked for compliance with European safety legislation.
  •   Optional vision panels with fire-rated glass (integrity and insulation rated).
  •   Emergency override and panic exit ironmongery options available for escape routes.
  •   Can be integrated with smoke seals and intumescent strips to contain fire and smoke spread.


Insulation & Energy Efficiency

  •    U-values as low as 1.4 W/m²K thanks to insulated cores and thermal break frames.
  •   Doors include mineral wool or insulated composite cores for superior thermal and acoustic performance.
  •   Double and triple sealing systems (rubber and brush seals) reduce heat loss and air infiltration.
  •   Ideal for use in temperature-controlled environments like plant rooms or corridors between cold and warm zones.


Design & Customisation

  •    Supplied with powder-coated finish in standard RAL colours, typically RAL 9005 (black), RAL 7016 (anthracite), and RAL 9016 (white).
  •   Available in bespoke colours from the full RAL or BS colour range upon request.
  •   Optional stainless steel or PVC laminate finishes for hygiene or architectural environments.
  •   Can include louvres, vision panels, and external trims.
  •   Frame profiles and thresholds can be customised for different floor levels or types.


Operation & Controls

  •    Primarily manually operated but can integrate with access control systems:
    •       Keypads
    •       Magnetic locks
    •       Proximity readers
  •   Closers and door selectors for double doors can be added.
  •   Electromagnetic hold-open devices available for fire doors where automated closure is required on alarm trigger.
  •   Fire alarm interfacing options are supported for automatic door release.



Installation & Warranty

  •    Made-to-measure manufacturing ensures a perfect fit for both new builds and retrofits.
  •   Flexible installation options:
    •       Reveal fix
    •       Face fix with architraves
    •       Corner or angle frames
  • Supplied with pre-fitted hardware for easier installation.
  • Standard manufacturer’s warranty ranges from 12 to 24 months, depending on specification.
  • Documentation and certificates provided for compliance (e.g., fire rating, CE declaration).


Lead Time & Common Applications

  •    Standard lead time: 3 to 4 weeks, expedited service available for urgent jobs.
  •   Ideal for:
    •       Plant rooms and boiler rooms
    •       Corridor fire doors in commercial premises
    •       Warehouse fire exits and insulated access points
    •       Schools, hospitals, and retail units
  •   Suitable for internal and external use with durable finishes and weather-resistant seals.
