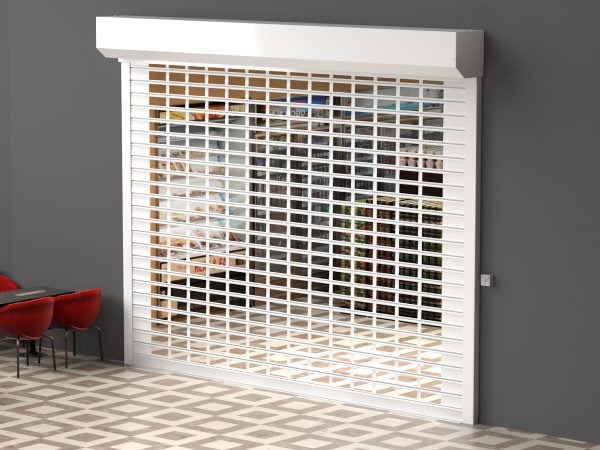

Why use the High Security Punched and Glazed Roller Shutter?

The RA802 High Security Punched and Glazed Roller Shutter provides a high level of security, whilst providing 58% vision.  The RA802 lath includes the Poly-carbonate Inserts and can go up to 5000mm wide. Independently Tested by the LPCB to LPS1175 Security Rating Level 2 - Certified for Installation Internally.   This is a Secured By Design product, which is a Police and Insurance preferred specification.

The RA802 High Security Punched and Glazed Roller Shutter are only available Electric Operation.  Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a full automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.

The RA802 High Security Punched and Glazed Roller Shutter comes powder coated as standard in White and Brown as standard.  The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Application Commercial, Retail
Secured By Design Yes
Product Rating LPS1175 Security Level 2
Material Aluminium
Lath Types Punched and Glazed - 58%
Electric Operation Single Phase - Tube Motor
Max Width 5000mm
Max Height - Electric 5000mm
Box & Guides - Standard Finish White or Brown
Curtain - Standard Finish White or Brown



    SLATS SPECIFICATION
 Description
The standard RA8 Laths is a Single skin punched Aluminium Lath with anti vandal wind locks.  The punched sections are 150mm w x 55mm H with 30mm Spacing.  Available "In Line" as standard or "Brickbond" at an additional cost.   The curtain can be fully punched or partially punched using Solid Laths.



    BOX SPECIFICATION
 Description
Roll formed Aluminium in two sections; top and bottom boxes.  Bottom Box removable for installation and maintenance and is chamfered at 45o.  The shutter box is assembled on steel end plates.    For the security rating, the Shutter Box has to be face fitted internally above the lintel and not visible from the outside.
 Box Sizes
Clear opening height (to underside of box)
1799 mm  -   250 mm box
3199 mm  -   180 mm box
3200 mm and above  -   350 mm box

Roller Shutters

    GUIDE RAIL SPECIFICATION
 Description
Extruded Aluminium Guides with an integral box section for reinforcement and to facilitate fixing.  High density 4 mm pile brush seals for quiet and smooth operation.   For the security rating, the Shutter Box has to be face fitted internally above the lintel and not visible from the outside.





    OPERATION
 Description
The RA8 is available electrically operated using a tubular motor inside the barrel.



      ELECTRIC  - (N.B. minimum shutter width 750mm)

      Electric shutters are usually fitted on larger openings where
      Manual Operation is not suitable or where the operator
      requires an easy, clean and user friendly type of operation.
      Single phase tubular motors are enclosed within the barrel
      giving full protection from the elements.  Electric Roller
      Shutters can be controlled individually or grouped to one
                              controller.  The controllers available include internal rocker
                              switch, security key switch or Remote Control.  Manual
                              overrides are available on Electric Roller Shutters which
                              allow the shutter to be operated when the power to the
                              shutter has failed.



The RA8 Roller Shutter is available in the following standard colours.   Band A, Band and Band C are an additional cost.






From only £666.00

Available Options
