Single Leaf
496-1270mm W x 1860-2320mm H
12 Point Locking System
Galvanised Steel
White
Up to 35dB
Insulated Mineral Wool Core - 2.2 U Value
10-12 working days
Our ECO Fast Track Personnel Single Door is designed for commercial and industrial applications requiring high security, durability, and functionality. Built from galvanized steel, this door provides robust protection against forced entry while offering flexibility for a range of environments, including warehouses, offices, and storage units.
Our Steel Door Builder allows you to customise your door based on the structural opening you provide. First, you'll input the width (496mm - 1270mm) and height (1860mm - 2320mm) dimension of your opening. The system will then guide you through various customisation options, including finishes and security features. Based on your dimensions, we will select a standard-sized door that fits your needs. Where applicable, we will include expanding side panels or overhead panels to ensure the door fits perfectly within the provided opening.
Door Leaf
50mm
door leaf thickness, fitted with an integrated astragal for added
security. Comprising of 2 x 1mm galvanised fully welded steel sheets. Mineral wool core providing an 2.20 U Value and a 35dB Acoustic Rating.
Door Frame
90mm deep frame manufactured from 1.8mm galvanised steel.

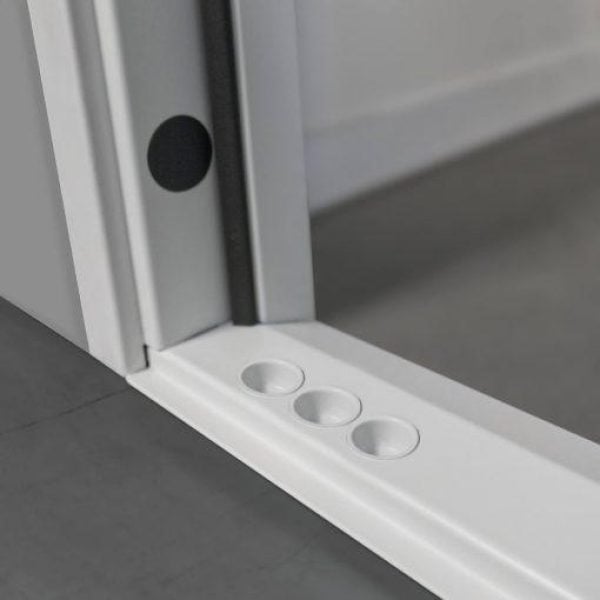

Door Threshold
DDA compliant threshold.
Hardware

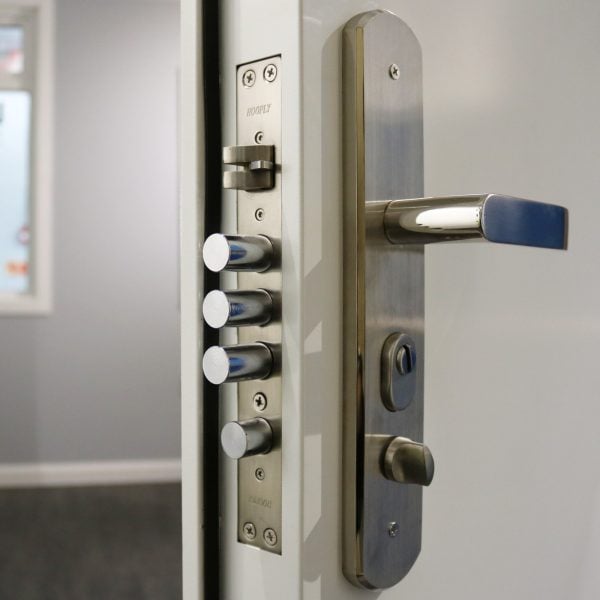

12 Point Locking System with Euro Profile Cylinder
Stainless Steel Handles
4 x stainless steel, ball bearing hinges

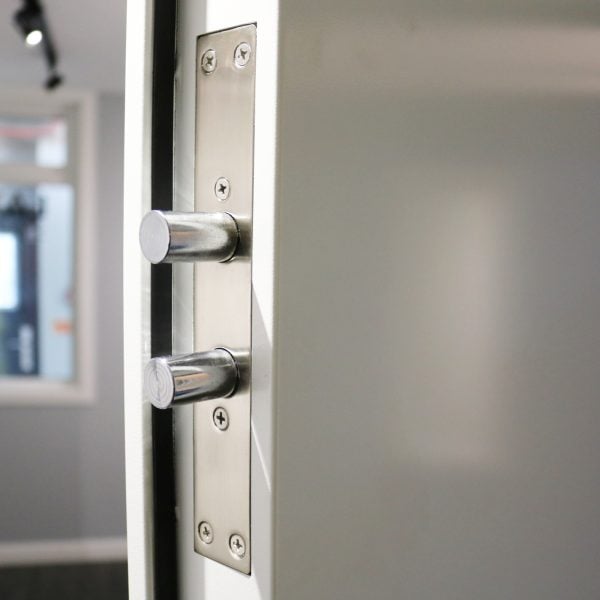

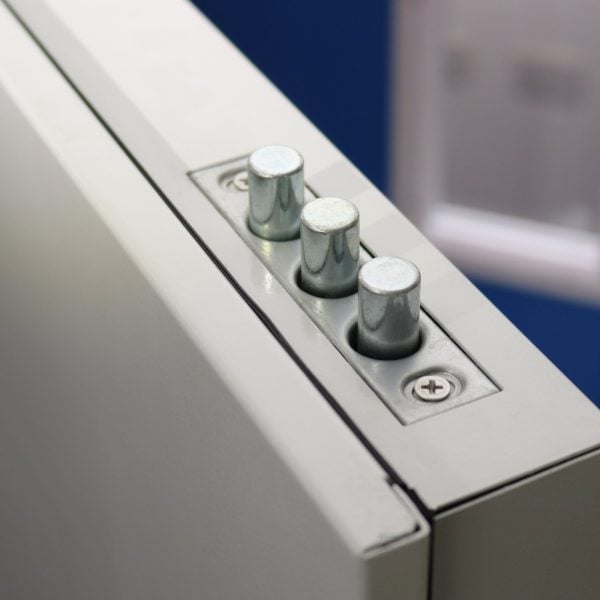

4 x Dog Bolts
Hinging Options (Viewed from Outside Looking In)
Hinged LHS - Open Outwards
Hinged LHS - Open Inwards

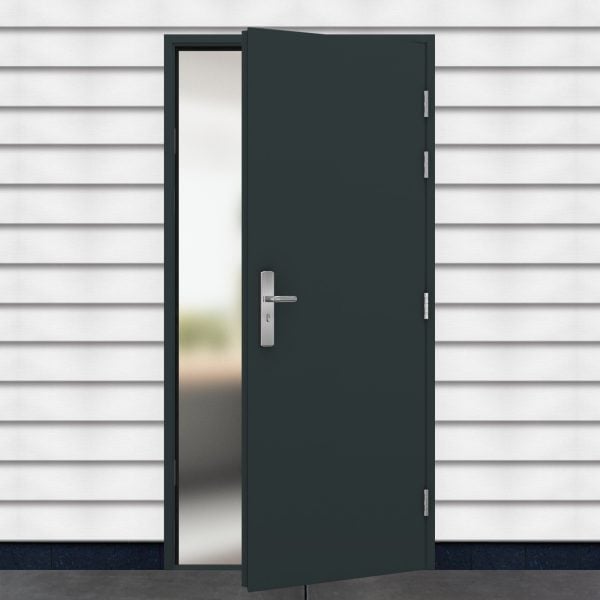

Hinged RHS - Open Outwards
Hinged RHS - Open Inwards

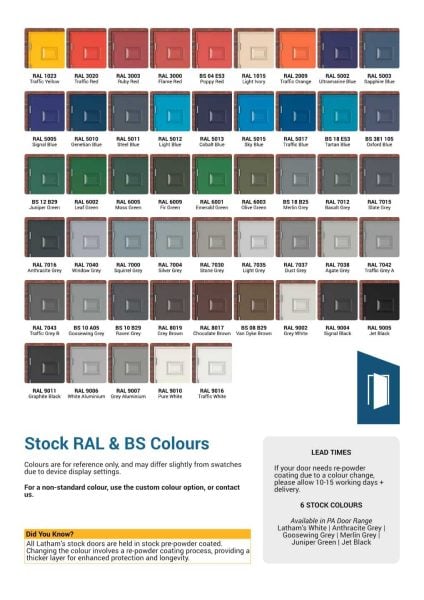

Finish
Powder Coated White RAL9010 Matt as standard.
This is the Data sheet on on our Overhead Panels for the ECO Doors.
This is the Data Sheet on the Expanding Side Panels.
Our data sheet on the Letterbox for the ECO steel doors.
Our data sheet on the Louvered Panels for the ECO Steel Doors.
Our data sheet on the Vision Panels for the ECO Steel Doors.
Our data sheet on the Security Trim Kit.
Installation Guides for the ECO Steel Door and Accessories
