Key Features | |
Application | Solution for noise reduction within a domestic, commercial, retail or warehouse environment. |

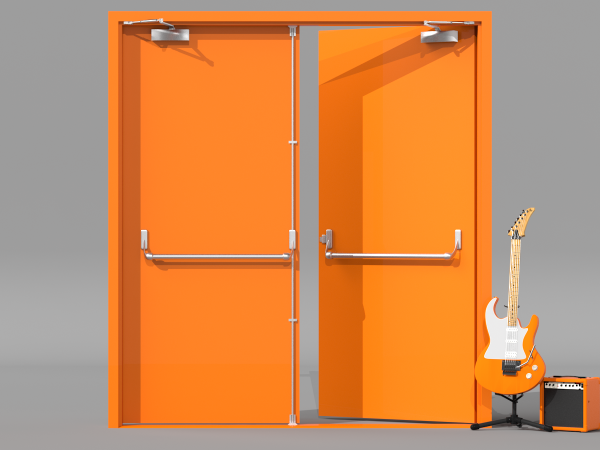

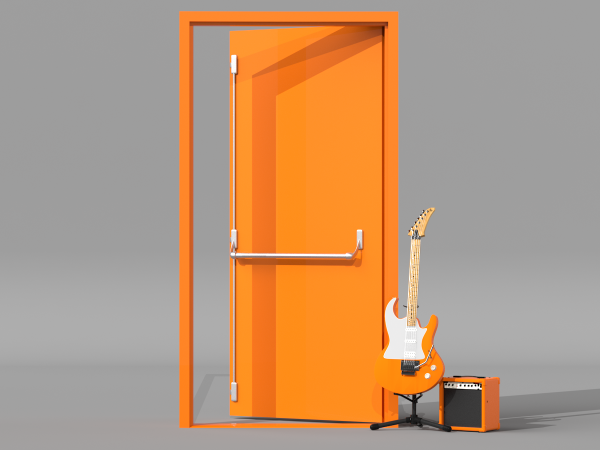

Door Type | Available as Single, Leaf & Half or Double Dorsets |
Security Rated | Can be provided to LPS 1175 Issue 7 SR2 subject to hardware and options selected |
Fire Rated | 1-4 hours subject to hardware and options selected |
Material | Zintec, Stainless Steel or Megnelis |
Locking Hardware | Personnel, Fire Exit and Electromechanical Furniture Available |
Glazing Options | Not available |
Louvred Options | Not available |
Lead Times | 12 - 18 working days |
Door Type Acoustic Rating
Frame Construction
Material:- 1.5mm Zintec, Stainless Steel or Magnelis
Profile:- 90mm / 110mm / 150mm Single rebated frame subject to hardware and options selected - Knock Down Frame
Reinforcing:- Reinforcing around the lock, hinges and fixing points
Infill:- Rockwool
Leaf Construction
Material:- 1.5mm Zintec, Stainless Steel or Megnelis
Size:- 45mm / 66mm thick door leaf subject to hardware and options selected with a 10mm Anti jemmy strip on the external lock side to protect the lock from attack.
Core:- Reinforcing bars welded horizontally and vertically within the door leaf. Core infills vary.
Locking Options
Manual Key Driven Hardware
Emergency Fire Escape Hardware
Electromechanical Hardware
Hinges
100mm lift-off grade 13 hinges. Four - Six hinges and Seven - Nine hooked dog bolts per leaf subject to hardware and options selected
Threshold Detail
13mm Aluminium DDA threshold.
Fire Rating
Doors can be certified up to 4 hours subject to hardware and options selected
Additional Options
Range of stays and door closer's
Powder Coated Finishes
Standard Finish is Satin. Matt, Gloss, Textured and Marine Finishes are available subject to availability.
Other colours available upon request.
RAL & BS Colours
