Why choose the Fire Exit Door Security Grille?

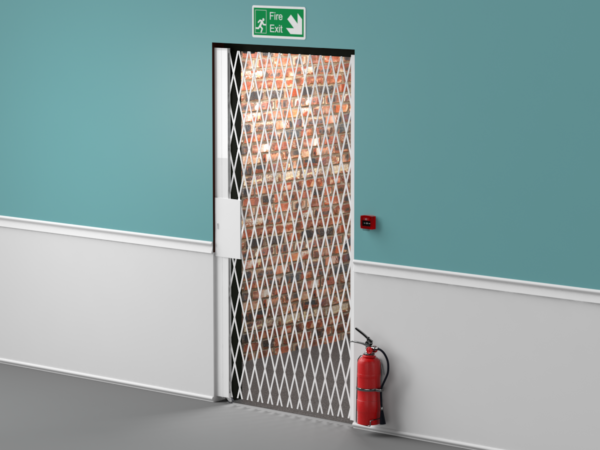

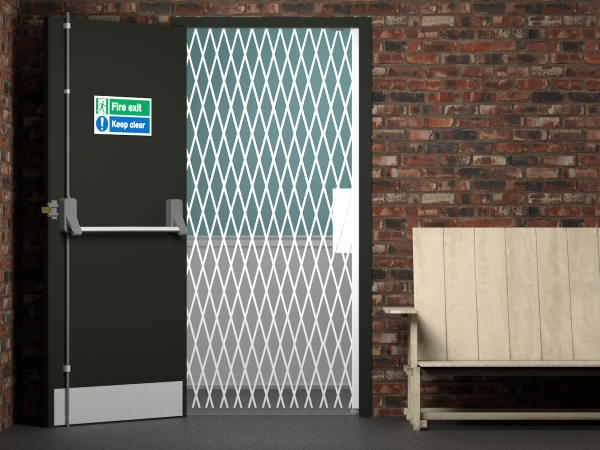

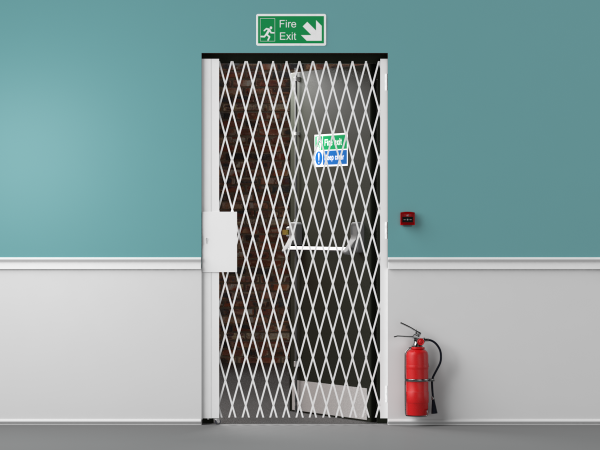

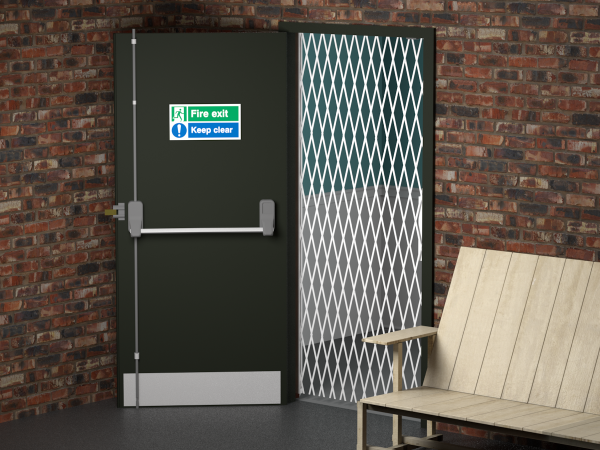

The CS80 Fire Exit Door grille has been specially designed for vulnerable Fire Exit Doors. Fire Exit Doors are usually very vulnerable as they usually have a push bar on the inside, that override the locking. This is easily overcome from the outside by thieves and is often overlooked as a vulnerable entry point. The CS80 Fire Exit Grille can also be used to prevent unauthorised access when the door is open for ventilation.
The CS80 Fire Exit Door grille is a Trackless Folding grille, so doesn't have a bottom track to trip over when escaping through the door. The door comes as standard with a Keyless Thumbturn Lock, for easy access at all times. Simply turn the thumburn, fold the grille back to the side. As standard the CS80 grille will turn 90 degrees flat back to the wall, ensuring the escape door is not reduced in width. The grille has been made with a smaller diamond lattice, this is to prevent unauthorised access from the outside, as you cant get your hands through the grille to operate the Thumb turn Locking.
The CS80 Folding Security Grille for Fire Doors comes in a standard height of 2000mm and comes in 3 standard widths of 1010mm, 1330mm and 1650mm. The grille comes Powder Coated White as standard.
Key Features | |
Application | Fire Exit Doors |
Product Rating | Medium to High |
Lattice | Double Diamond |
Locking | Keyless Thumbturn |
Material | Steel |
Max Width | 1650mm |
Max Height | 2000mm |
Standard Finish | White RAL9016 |
Lead Times | 2-3 working days |

Stacking Details
Approximately 15% of the overall width.
Will then hinge around to fold flat against the wall.

- Stock: In Stock
Available Options
CS80 Size Options
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
1010mm W x 2000mm H - Fire Exit Grille - Emergency Locking and HD Castor | £516.00 | ||
1330mm W x 2000mm H - Fire Exit Grille - Emergency Locking and HD Castor | £578.00 | ||
1650mm W x 2000mm H - Fire Exit Grille - Emergency Locking and HD Castor | £634.00 |
CS80 Extras
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Lock Protection Plate | £37.00 | ||
Cut Down in Height - from 2000mm to 1840mm | £124.00 | ||
Cut Down in Height - from 1840mm to 1600mm | £224.00 |
Product Sizes
- Standard Height - 2000mm
Single Stack
- Min Width - 500mm
- Max Width - 1650mm
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
