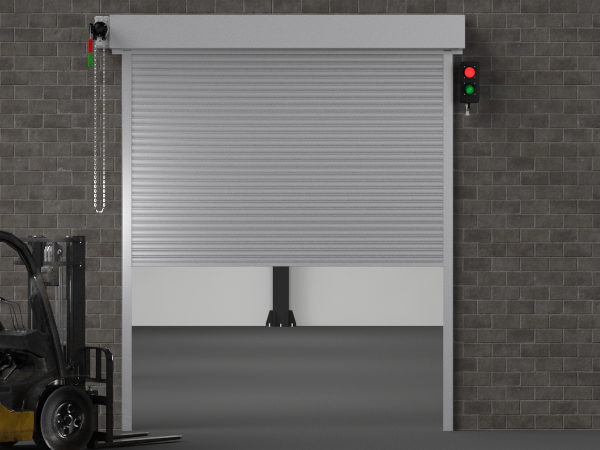

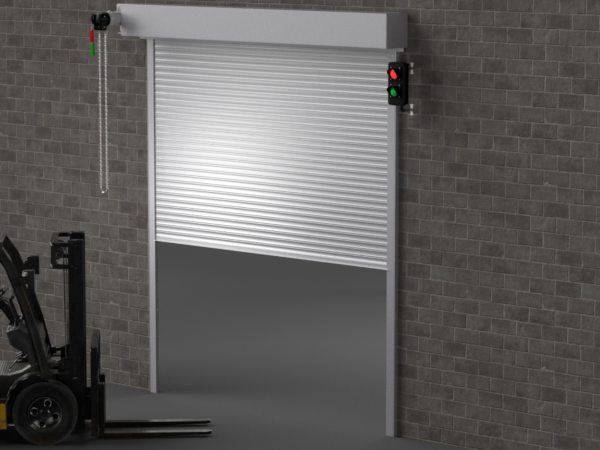

High Speed Industrial Roller Shutter Door

High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door
High Speed Industrial Roller Shutter Door

Why choose the High Speed Industrial Roller Shutter Doors?

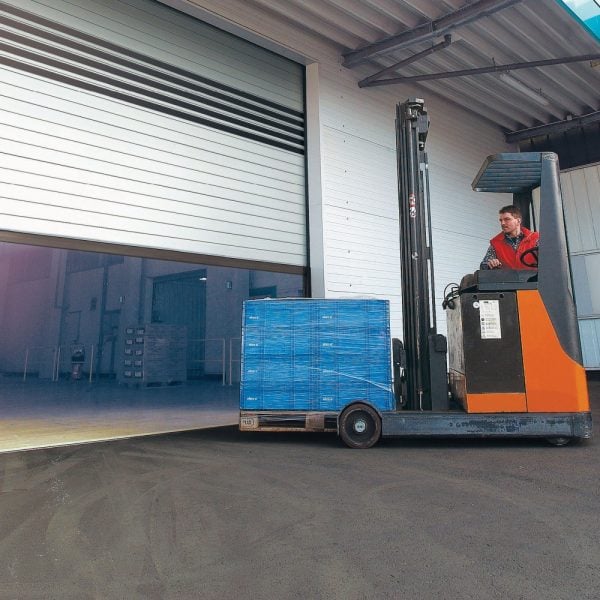

The High Speed Industrial Roller Shutters Doors are ideal when you are trying to reduce heat loss with a high volume of traffic going through the door.  The advantage of a High Speed Shutter over a High Speed Curtain, is the shutter can provide a fast acting solution, but can also provide Security 24hrs a day.   The laths are manufactured using a Twin Walled steel lath, with insulation between the skins.    The laths come in a 77mm, 95mm and 100mm lath profile, depending on the size of the opening.   The laths are also available with vision windows, ideal for Pedestrian and Vehicle traffic.

The High Speed Industrial Roller Shutters Doors are available with Single and 3 Phase Direct Drive motors.   The motors have been specially designed for High Usage and to run at high RPM.  We also have a large of controls and sensors for example Radar Sensors for Fork Lift Traffic, Traffic Lights and Safety devices.

The High Speed Industrial Roller Shutters Doors comes Galvanised Finish as standard.   The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Application Industrial, Warehouses
Product Rating High
Material Steel
Lath Types Insulated
Electric Operation Single and 3 Phase High Speed Motors
Max Width 7000mm
Max Height - Electric 7000mm
Box & Guides - Standard Finish Galvanised
Curtain - Standard Finish Galvanised
Lead Times 15 working days


    SLATS SPECIFICATION

Description
The Galvanised Steel Laths are Double skin, Insulated for Heat and Sound Insulation.  Punched Window Laths are an additional cost.   Galvanised finish as standard.


75mm High Lath
  •  Heat Transmission - 4.01 W/M2K)
  •  Max Width - 6000mm
  • Max Area - 20m2
  • Available Manual Chain Operated, Tube Motor and Industrial Motors



95mm High Lath
  •  Heat Transmission - 3.9 W/M2K)
  • Acoustic Reduction rating of 27dB
  • Wind Class 3
  •  Max Width - 7000mm
  • Max Area - 49m2
  • Available Single and 3 Phase Operation
  • Vision Laths available






100mm High Lath
  •  Heat Transmission - 1.5 W/M2K)
  • Wind Class 5
  •  Max Width - 12000mm
  • Max Area - 72m2
  • Available 3 Phase Operation
  • Vision Laths available






    BOX SPECIFICATION


Industrial Doors come with a universal steel side end plates.  The end plates are pre-drilled for different motors and motor configurations.   As standard the industrial roller shutters, don't come with a Shutter hood, this is available at an extra cost if required.





Box Sizes
This varies between 350mm - 550mm, dependent on the width of the opening, please contact us for the exact clear opening height for the particular width of shutter you require.



    GUIDE RAIL SPECIFICATION

Description
Insulated Industrial Roller Shutter Guides are supplied with galvanised steel guide angle as standard.  The angle can be inset or outset if preferred, this must be clearly stated on your order.  The thickness of angle varies as below;

77mm Insulated Laths -   95mm Guide with 75mm x 50mm Galvanised Steel Angle



95mm Insulated Laths  -  80mm Guide with Brush Seals with 100mm x 50mm Galvanised Steel Angle

100mm Insulated Laths  -  80mm Guide with Brush Seals with 100mm x 50mm Galvanised Steel Angle



100mm Insulated Lath - Guide Detail







    OPERATION

Description
The High Speed Insulated Industrial Doors are available with Single (240V) or 3 Phase (415V) motors available.  This depends on the Size of the opening and the usage the door will be operated.   High Speed Motors have to be Direct Drive and bolted onto the side of the endplate.   They are not available on Reveal Fixing Endplates.


INDUSTRIAL MOTOR OPTIONS

We only use GFA High Speed motors as they are German made, very reliable and easy to maintain.    As standard, the motors come with a Low Level Control Panel with DIgital display, Chain Override and Push button station.    We have a large of Controls and Safety Devices available, depending on the requirements.


The Industrial roller shutters come as standard with a Push Button Station for internal, non secure operation.  There is the option of External Key Switch, Keypads, Remote Control, Presence and Motion Detection for Vehicles/Pedestrians.

We also have a large range of Safety Devices for the industrial doors, depending on the
application. Options include Safety Edge, Photo Cells, Light Grilles, Trap Sensors and Lazer Sensors.




The standard finish on the High Speed Industrial Steel Roller Shutters is Galvanised.




The Shutter can be Powder Coated one of our Stock Colours below.  Depending on the Band A, B or C will depend on the additional cost.



From only £2,983.00

Available Options
