Why use the Window Safety Bars?

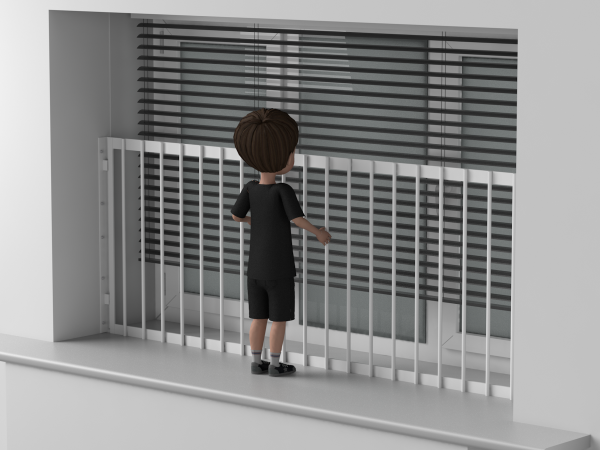

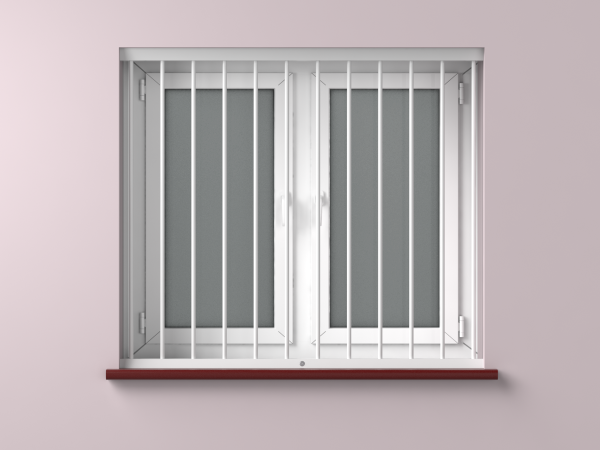

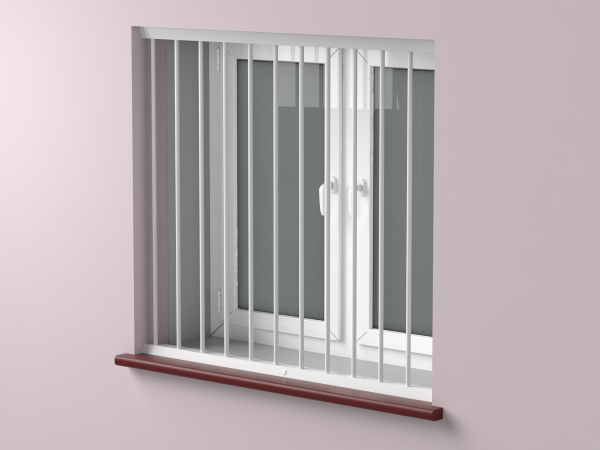

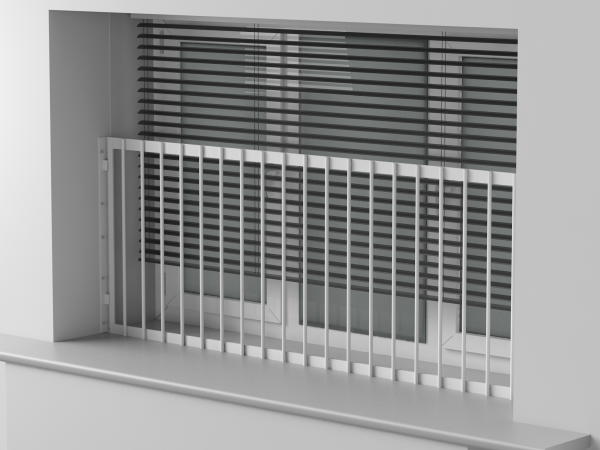

The Window Safety Bars have been specially designed for preventing children or vulnerable people from falling from low windows. The window safety bars are fitted internally, across the front of the window or with the window recess. The vertical bars are closer together, to ensure children can't get their head stuck between the bars. The barrier can be made to suit to fit a half height window or full height window. The barrier can be made fixed for more security or removable, to allow the grille to be removed for cleaning the window and maintenance.
The window safety bars have been designed to comply with the guidance specified in Part K2 of the Building Regulations 2000 as read with BS6180:1999. As an added precaution the spacing between the bars has also been reduced in order to comply with that specified in BSEN 1930:2000.
The window safety bars can be powder coated White, Brown, Black or Cream as standard. Other BS and RAL colours are available at an additional cost.
Key Features | |
Application | Residential, Schools, Commuinty Cetres, Sports Centres |
Product Rating | Child Safety |
Material | Steel |
Max Width | 2500mm |
Max Height | 2500mm |
Standard Finish | White, Brown, Black or Cream |
Lead Times | 10-15 working days |
PRODUCT SPECIFICATION
Description
The Safety Barrier is manufactured using 12mm Round Vertical Bars welded into a steel Frame. To prevent children trapping their head in between the bars, the bars are spaced at 65mm.
FRAME SPECIFICATION
Description
The Window Bars come as standard with a Box Section frame, other types of frame are available on request.
BOX SECTION - The Bar grille is supplied as standard in a fully welded Box Section frame. The size of the box section will depend on the Diameter of the infill bars. The bars are welded into the frame, providing a very strong bar grille. The advantage of the box section is that the fixings can be concealed inside the box section profile, making it a neater and more secure than the other frame types.

NO FRAME - The grille has two tie bars with end fixing plates for reveal or surface fixing,

FLAT BAR FRAME - the vertical bars are welded into a full frame which is manufactured from Flat Steel Bar. The flat bar frame is ideal when face fixing onto a wall or back of a door.

ANGLE FRAME - the vertical bars are welded into a full frame which is made from Angle Iron. Angle frame is often used in warehouses, where aesthetics are not important.

OPTIONS
FIXED

HINGED


STANDARD REVEAL FIXING





- Stock: Made to Order
Available Options
Left Hand Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Reveal Fix Bars | |||
Face Fix Bars |
Right Hand Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Reveal Fix Bars | |||
Face Fix Bars |
Frame
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Box Section Welded |
Infill
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
12mm Round Bar |
Top Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Face Fix Bars | |||
Reveal Fix Bars |
Fixing - Bottom
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Face Fix Bars | |||
Reveal Fix Bars |
Application
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Window |
Product Colour
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Standard-Brilliant White-RAL 9016 | |||
Standard-Cream-RAL 1015 | |||
Standard-Brown-RAL 8014 | |||
Standard-Black-RAL 9005 |
Fitting
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Internally Fitted |
