Bar Servery Shutter Punched Aluminium - 58% Vision
Why use the Punched Bar Servery Shutter?

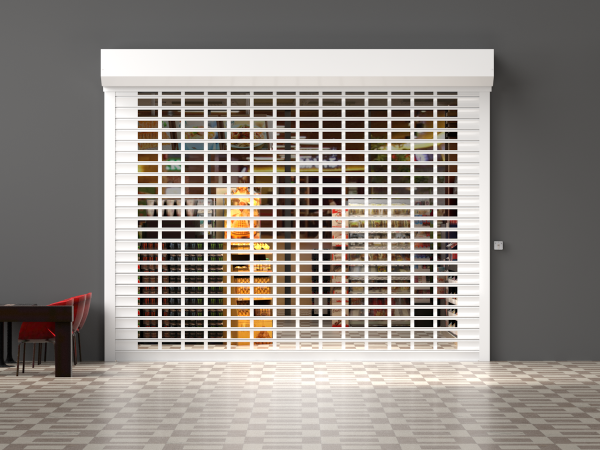

The RA8 Punched Bar Servery Shutters comes with a Punched curtain that can provide up to 58% vision and span openings up to 6m. The punched laths can be used with Solid Laths or Polycarbonate Inserts to provide a high level of security. Ideal for Bars, Reception Counters and Serveries or where vision and security is a requirement.
The RA8 Punched Bar Servery Shutter is available Manual Operation, but due to the large openings it covers, it is normally Electrically operated. Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a full automation system, including Timers, Remote Control Systems, and Home Hubs eg; Alexa.
The Punched Bar Servery Shutter comes powder coated as standard in White, Brown, Black or Cream as standard. The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.
SLATS SPECIFICATION
Description

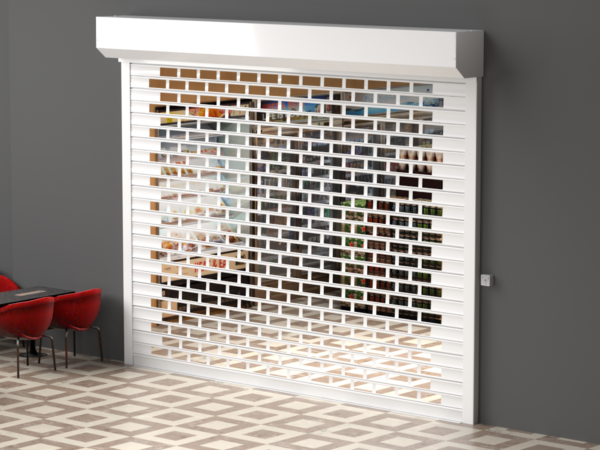

The standard RA8 Laths is a Single skin punched Aluminium Lath with anti vandal wind locks. The punched sections are 150mm w x 55mm H with 30mm Spacing. Available "In Line" as standard or "Brickbond" at an additional cost. The curtain can be fully punched or partially punched using Solid Laths.
BOX SPECIFICATION
Description
Roll formed Aluminium in two sections; top and bottom boxes. Bottom Box removable for installation and maintenance and is chamfered at 45o. The shutter box is assembled on steel end plates.
Box Sizes
Clear opening height (to underside of box)
1799 mm - 250 mm box
3199 mm - 180 mm box
3200 mm and above - 350 mm box
The RA8 Roller Shutter is available in the following standard colours. Band A, Band and Band C are an additional cost.
- Stock: Made to Order
From only £419.00
Based on 1000mm x 1000mm
ESTIMATED LEAD TIMES -7 - 15 WORKING DAYS
(EXCLUDING DELIVERY)
Would you like an Instant Quote?
Please follow the steps below to build a product to suit your requirements.
Product size Guide
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 6000mm
- Min Height - 500mm
- Max Height - 5000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for you Click here
Would you like an Instant Quote?
Please enter your opening sizes and then follow the steps to build a product to suit your requirements.
Product size Guide
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 6000mm
- Min Height - 500mm
- Max Height - 5000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum
Sizes.
These sizes will depend on the overall size of the poroduct.
Structural Opening Sizes
Lath Sizes
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for youClick here
