Roller Shutters

Perforated Bar Servery Shutter Aluminium - 22% Vision

From only £668

Based on 1000mm x 1000mm

instant quote icon

Key Product Features

Product Rating

Medium to High

Lath Types

Perforated - 22% Vision

Electric Operation

Single Phase - Tube Motor

Max Width

6000mm (Depending on Height)

Max Height

5000mm (Depending on Width)

Box and Guides - Standard Finish

White, Brown

Curtain - Standard Finish

White, Brown

Lead Times

15-20 working days

Why use the Perforated Bar Servery Shutter?

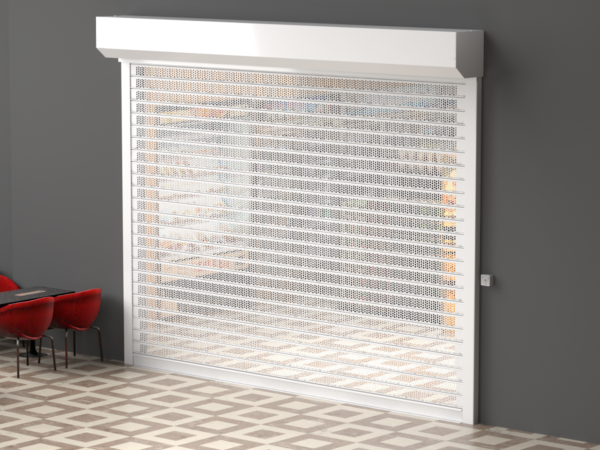

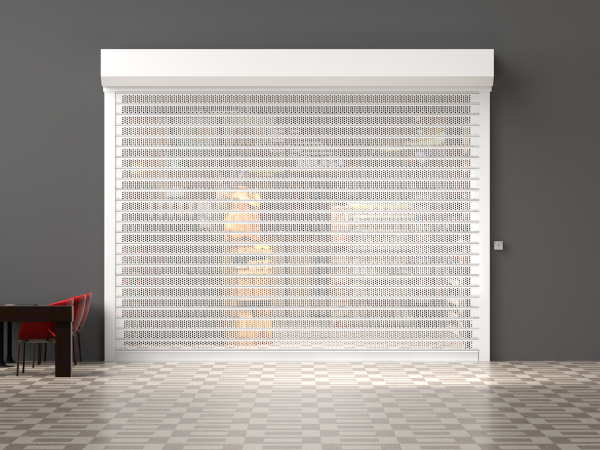

The RA8 Perforated Bar Servery Shutter has a Perforated curtain that can provide up to 22% vision and span openings up to 6m. Ideal for wider Bars and Serveries or where vision and security are a requirement. If you require more vision then the RA8 Punched Roller Shutter provides 58% vision,

The RA8 Perforated Bar Servery Shutters are only available Electrically operated, due to the large widths. Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a fully automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.

The Perforated Bar Servery Shutter comes powder coated as standard in White, Brown, Black or Cream as standard. The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.


Curtain Slat

The Perforated Aluminium Shutter uses a single walled extruded and punched aluminium slat. Solid slats are always used within the shutter box, part of a solid slat may be visible on a completely punched curtain.

Bottom Slat

Extruded aluminium with rubber bottom seal.

Shutter Box

Die cast aluminium end plates with two piece roll formed aluminium box. Larger sizes (shutters with a curtain weight of approx. 75 kg upwards) will be supplied with zinc plated steel end plates.

Guide Rails

Extruded aluminium with box section for fixing/reinforcement and high density 4 mm pile brush seals. UPH250 guides supplied as standard.


Standard Colours for the Punched Aluminium Roller Shutters are;

Standard Colours

Survey an Opening

Our video on how to measure a Window or Door opening.

Manual Shutter Installation

Our video on how to install a Manual Spring Loaded roller shutter.

Electric Shutter Installation

Our video on how to install an Electric roller shutter.

Need more information?

Speak to one of our specialist advisors for more information about this product.
