Roller Shutters

Industrial Steel Door - LPS1175 Security Level 2

From only £1,809

Based on 2000mm x 2000mm

instant quote icon Instant Quote

Key Product Features

Product Rating

LPS1175 Security Level 2

Lath Types

Solid

Electric Operation

Single and 3 Phase Motors

Max Width

7000mm (Depending on Height)

Max Height

4600mm (Depending on Width)

Box and Guides - Standard Finish

Galvanised

Curtain - Standard Finish

Galvanised

Lead Times

15-20 working days

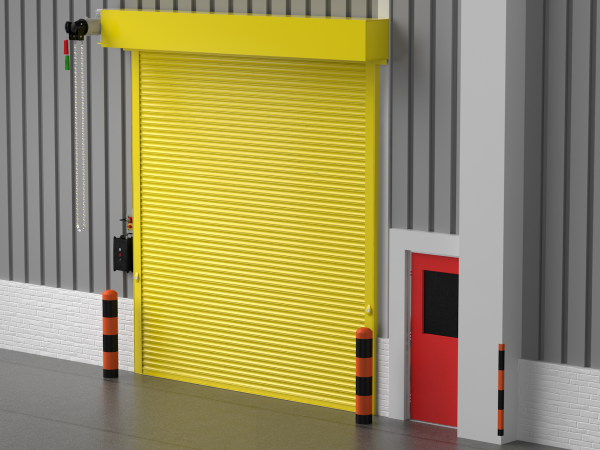

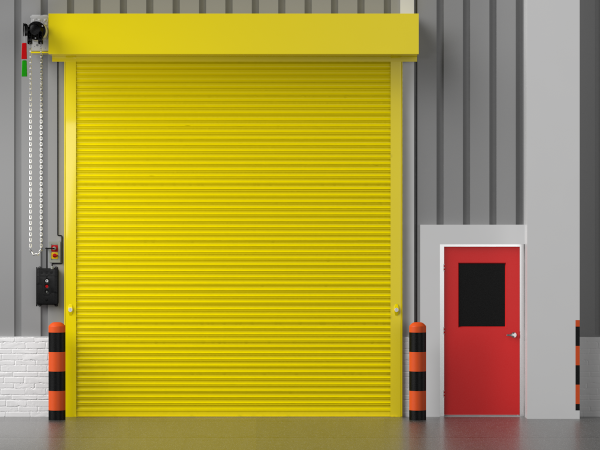

Why use the High Security Industrial Roller Shutter Doors?

The RS7502 High Security Industrial Roller Shutter Door is based on the popular Steel Industrial Door, but has added features for higher risk applications. Ideal for Warehouse Doors, Industrial Units, Loading Bays, Shopping Centres and large openings that require a high level of security. Independently tested by the LPCB to LPS1175 Security Rating Level 2 - Certified for Installation Internal use. This is a Secured By Design product, which is a Police and Insurance preferred specification.

The RS702 High Security Industrial Roller Shutter Door uses an 18G Galvanised Solid Steel Curved Lath, Electrically Operated with Internal Bullet Locking. The Industrial Steel Roller Shutter Doors are powered using the GFA Direct Drive motor. We offer a 2 year warranty on the GFA motors and controls. The direct-drive motor bolts onto the outside of the endplate, direct to the axle assembly, which is more reliable than the inboard motors. These GFA motors will provide 10 -16 operations per hour. The motors are available Single Phase (240V) or 3 Phase (415V). The 415V motors are generally slightly cheaper, lift bigger doors, operate quicker and provide more operations per hour, compared to single phase. The motor limits are digital and can be adjusted at low level on the control panel. We also have a large of controls and sensors for example Radar Sensors for Fork Lift Traffic, Traffic Lights and Safety devices.

The RS7502 High Security Industrial Roller Shutter Door comes Galvanised finish standard. The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.

Information

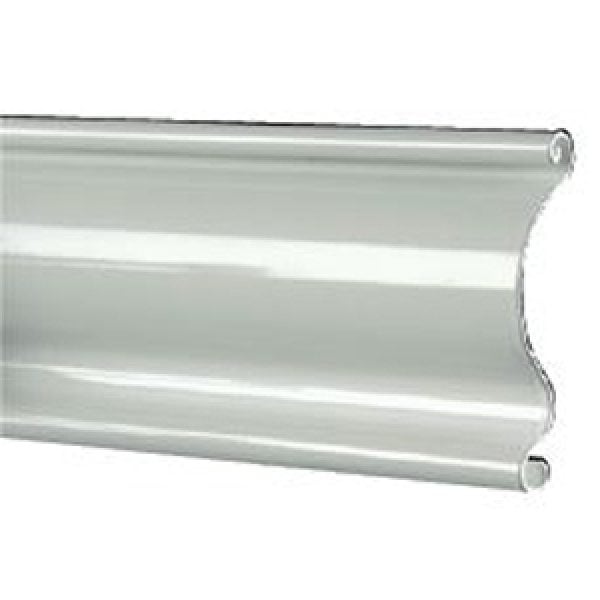

Curtain

Single skin 76mm (3'') curved steel slat witjh a Wall thickness 1.2mm.

Bottom Slat

Galvanised steel ’T’ shaped bottom rail is provided as standard. The option of an “L” is available when face fixing or need to miss a door handle on one side of the opening. Both the “T” rail and “L” Rail are available with a Rubber Bottom Seal and Safety Edge at an additional cost

Shutter Box

Galvanised steel casing & end plates as standard. For external installation or for covering up the roller shutter mechanism, there is the optional fascia and hood at an extra cost. Galvanised finish as standard, powder coating available at an additional cost.

Guide Rails
Galvanised steel “U” channel guides. The guide size varies dependent on application/size, either 50mm, 65mm or 100mm. Windlocking guides available for added security or windy locations. Guide channels are bolted onto angle or box section, depending on the application. Galvanised finish as standard.

Colours

The standard finish is Galvanised finish. It can be powder coated any BS or RAL colour.

Survey an Opening

Our video on how to measure a Window or Door opening.

Industrial Video

Our video on how to install a Face Fixed Industrial roller shutter door with GFA Direct Drive motor.
