Diamond Folding Grille - Ex Stock
GRILLE SPECIFICATION
Description

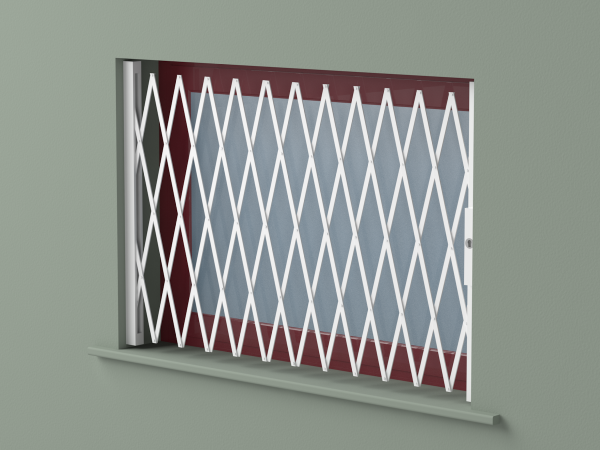

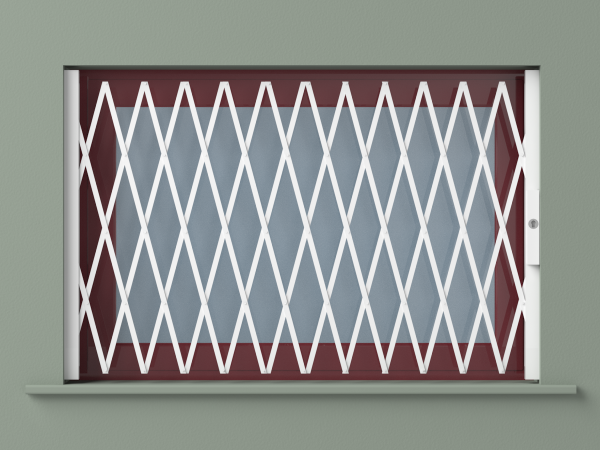

The grille is manufactured using 12mm square tube which is riveted together to create the Diamond Lattice design. The Steel is Electro Galvanised and Powder Coated White as standard.
Stacking Details
The Diamond Door folds back to the wall to approximately 15% of the overall width and then it can hinge 90o degrees flat against the wall with the two hinges fitted.
Locking
Viro Surface Mounted Single Point Slam Lock and Plastic Handle. Please note this lock is not suitable for external use.
PRODUCT OPTIONS
TOP TRACK
Top track and hanger roller to allow the grille to run in a track - but you lose the hinge around facility - makes it easier to operate for older and infirm people.
"T" BRACKET - GIve the grilles rigidity when joining two grilles together in the middle. The "T" bracket can be fixed at the Top or Bottom or Both.

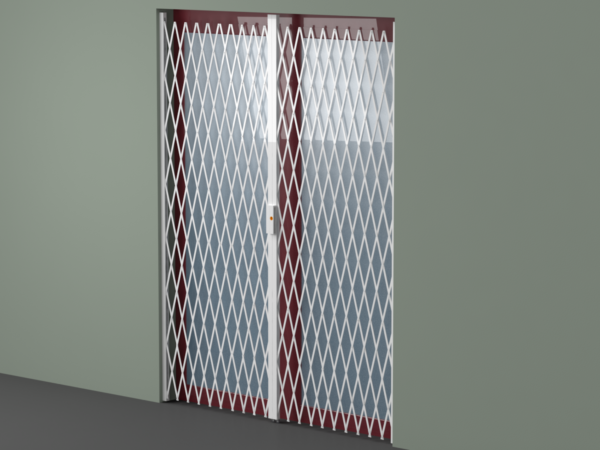

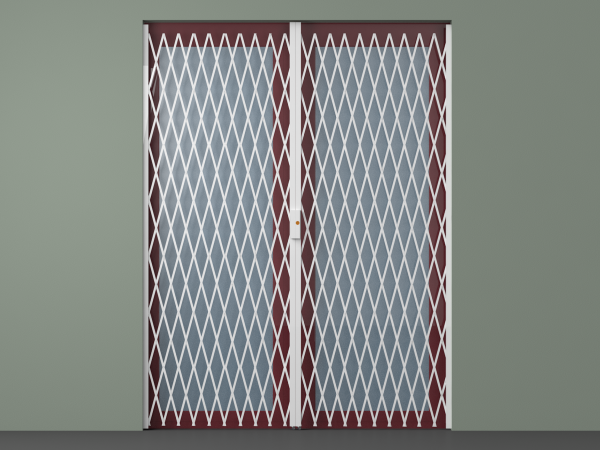

DOUBLE SASH - Where Two Grilles join together in the middle
FACE FIXING THE GRILLES OVER AN OPENING
SPANNING WIDER OPENINGS
- Stock: In Stock
From only £269.00
Based on 1000mm x 2000mm
ESTIMATED LEAD TIMES -2 - 5 WORKING DAYS
(EXCLUDING DELIVERY)
