Xonar 964 Roller Shutter | SR4 Security Shutter for Maximum Protection

Security Features

•  LPS 1175 Issue 8 Certified – Security Rating 4 (SR4): Certified to withstand experienced and determined intruders using heavy-duty tools such as felling axes, jigsaws, sledgehammers, and disc grinders.
• Secured by Design Approved: Meets police-endorsed specifications for crime prevention in sensitive and high-risk environments.

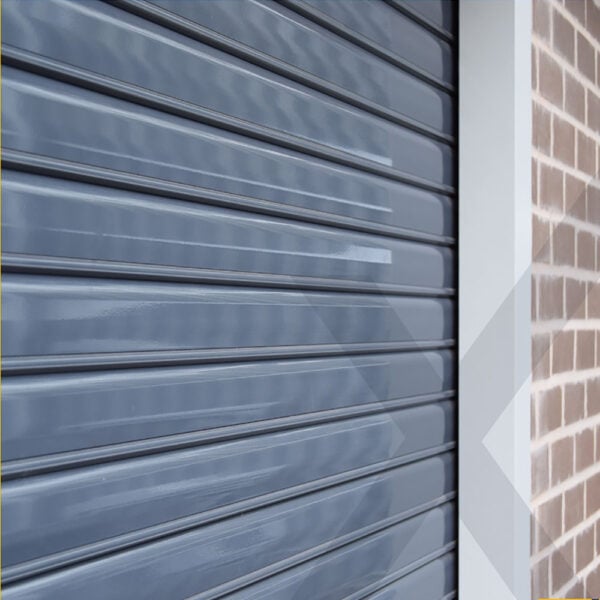

• Constructed from High-Strength Twin Walled aluminium slats deliver formidable resistance to impact and forced entry.
• Anti-Lift Locking System: Integral mechanism prevents the shutter curtain from being forcibly lifted from below.
• Optional Security Enhancements:
  •     Bullet locks or ground locks available for additional physical reinforcement.
  •     Reinforced end plates and guide rails for added rigidity.


Safety Features

•  CE Marked and UKCA Certified: Compliant with EN 13241 safety standards for powered doors and shutters.
• Safety Brake: Prevents uncontrolled descent in case of motor failure.
• Optional Safety Edge and Photo-Cell Sensors: Enhanced user protection during closure operations.
• Manual Override Facility: allows shutter operation during power failure, ensuring continued access or egress.


Insulation & Energy Efficiency

•   Twin Walled Aluminium Curtain: While not insulated, provides basic thermal separation suitable for many industrial and commercial environments.
• Brush Seals (Optional): Can help reduce draughts and improve energy retention where necessary.


Design & Customisation

•    Finish Options:
  •    Standard: Powder Coated White RAL9016
  •    Optional Powder Coating in Any RAL Colour: Allows customisation to suit corporate branding or architectural requirements.
• Compact Design: Slim profile allows installation in constrained spaces without compromising on security rating.
• Hood and Guides Finish Options: Can be matched to curtain colour for aesthetic integration.


Operation & Controls

•   Electric Operation as Standard: Fitted with a high-quality tubular motor or outboard direct drive motor, depending on size and weight.
• Control Options:
  •    Key switch, rocker switch, or push button.
  •    Remote control and group command control available.
  •    Integration with Access Control Systems (e.g., keypads, card readers).
• Manual Override Available: For applications where electric operation is not feasible or as a backup.


Installation & Warranty

•   Made-to-Measure Fabrication: Tailored to suit each opening and site-specific requirements.
• Mounting Options: Suitable for face fix or reveal fix installations.
• Warranty: 12-month manufacturer warranty covering materials and workmanship, with extended service plans available upon request.


Lead Time & Common Applications

•  Typical Lead Time: Approximately 6–8 weeks from order to delivery, subject to final specification.
• Ideal for:
  •    Warehouses and industrial units
  •    Utility sites and data centres
  •    Government and MOD facilities
  •    Retail premises requiring certified protection
