Xonar 943 Roller Shutter | SR3 High-Security Shutter

Security Features

•    LPS 1175 Issue 8 Certified – Security Rating 3 (SR3): Tested to resist more determined attacks using tools such as crowbars, drills, and multi-tools for up to 5 minutes.
•  Secured by Design Approved: Meets police-endorsed specifications for crime prevention in sensitive and high-risk environments.

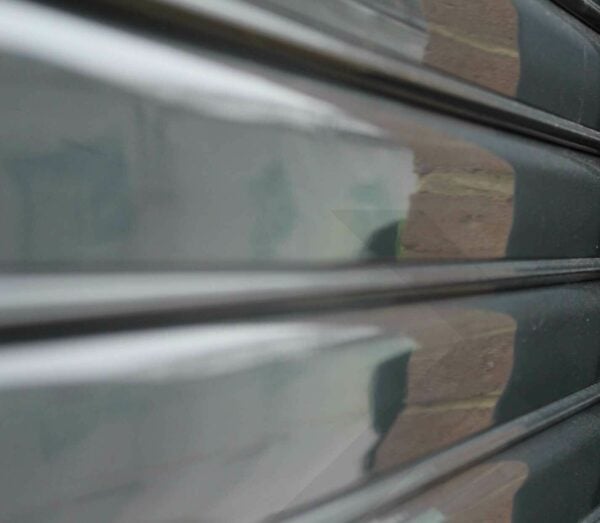

•  Constructed from High-Strength Twin Walled aluminium slats deliver formidable resistance to impact and forced entry.
•  Anti-Lift Locking System: Integral mechanism prevents the shutter curtain from being forcibly lifted from below.
•  Optional Security Enhancements:
  •      Bullet locks or ground locks available for additional physical reinforcement.
  •      Reinforced end plates and guide rails for added rigidity.


Safety Features

•  CE Marked and UKCA Certified: Compliant with EN 13241 safety standards for powered doors and shutters.
• Safety Brake: Prevents uncontrolled descent in case of motor failure.
• Optional Safety Edge and Photo-Cell Sensors: Enhanced user protection during closure operations.
• Manual Override Facility: allows shutter operation during power failure, ensuring continued access or egress.


Insulation & Energy Efficiency

•  Twin Walled Aluminium Curtain: While not insulated, provides basic thermal separation suitable for many industrial and commercial environments.
• Brush Seals (Optional): Can help reduce draughts and improve energy retention where necessary.


Design & Customisation

•  Finish Options:
  •     Standard: Powder Coated White RAL9016
  •     Optional Powder Coating in Any RAL Colour: Allows customisation to suit corporate branding or architectural requirements.
• Compact Design: Slim profile allows installation in constrained spaces without compromising on security rating.
• Hood and Guides Finish Options: Can be matched to curtain colour for aesthetic integration.


Operation & Controls

•    Electric Operation as Standard: Fitted with a high-quality tubular motor or outboard direct drive motor, depending on size and weight.
• Control Options:
  •     Key switch, rocker switch, or push button.
  •     Remote control and group command control available.
  •     Integration with Access Control Systems (e.g., keypads, card readers).
• Manual Override Available: For applications where electric operation is not feasible or as a backup.


Installation & Warranty

•    Made-to-Measure Fabrication: Tailored to suit each opening and site-specific requirements.
• Mounting Options: Suitable for face fix or reveal fix installations.
• Warranty: 12-month manufacturer warranty covering materials and workmanship, with extended service plans available upon request.


Lead Time & Common Applications

•    Typical Lead Time: Approximately 4–5 weeks from order to delivery, subject to final specification.
• Ideal for:
  •     Warehouses and industrial units
  •     Utility sites and data centres
  •     Government and MOD facilities
  •     Retail premises requiring certified protection
