Tube and Link Roller Shutter

Tube & Link Roller Shutter - 75% Vision

Why use the Tube & Link Shutters?

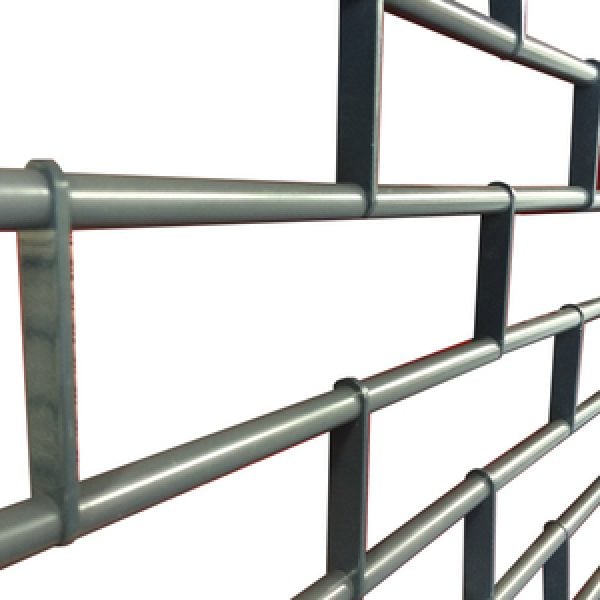

The Tube & Link Shutters are a favourite with retail applications, as it provides 75% vision. The shutter curtain is made up of lots of 8mm rods, 13mm Tubes and Links, which makes it labour intensive to manufacture, which increases the cost and lead times. Due to the way the curtain is constructed, the curtain does flex, so it's not recommended for external use. The standard curtain configuration is "In Line" with 111mm x 69mm spacing. The curtain is available as a Brick Bond configuration which has 222m x 69mm spacing.

The Tube & Link Shutter is only available electrically operated. It can be operated using a Single Phase Tube Motor with a Toggle or Key Switch. For larger openings, we can use a 3 Phase Direct Drive motor with a push button station. Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation

The Tube & Link shutter curtain comes Mill finish as standard and the option of Anodised Silver or Powder Coated at en extra cost. The Box and Guides come as standard in Galvanised finish. The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.

Key Features

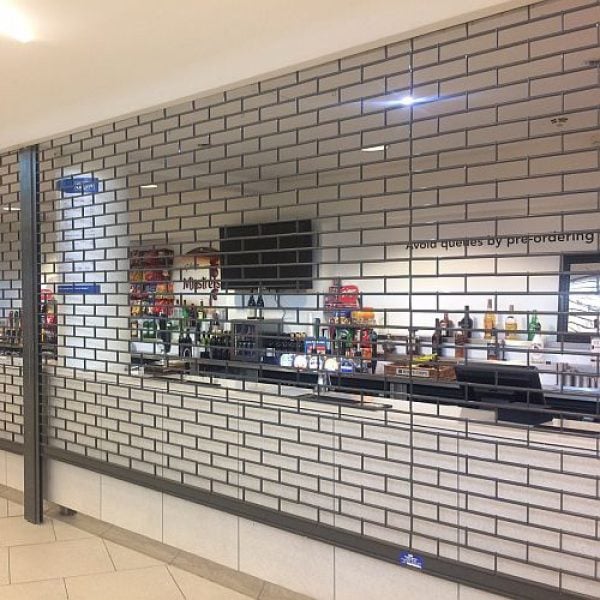

Application	Commercial, retail, Bar and Serveries
Product Rating	Low to Medium
Material	Steel and Aluminium
Lath Types	Grille - 75% Vision
Electric Operation	Single and 3 Phase
Max Width	7000mm (Depending on Height)
Max Height - Electric	5000mm (Depending on Height)
Box & Guides - Standard Finish	Galvanised
Curtain - Standard Finish	Mill
Lead Times	20 working days

SLATS SPECIFICATION

Description

Constructed from a combination of Aluminium links and tubes.

BOX SPECIFICATION

Description

3 mm Galvanised Steel end plates are provided as standard.

Shutter Hoods and Fascias are not provided as standard, but are available at an extra cost. Hoods will be supplied in sleeved sections which will need to be joined on site during the installation. Alternatively hoods can be supplied in one section up to 6 metres long but this will extend production time and delivery costs.

Box Sizes Internal

Clear opening height (to underside of box).

250 mm - 450 mm

As this varies depending on the width, please contact us for the exact clear opening height for the particular width of shutter you require.

GUIDE RAIL SPECIFICATION

Description

There are two types of Guide Rails - Standard "U" Channel, is provided as standard and comes is different sizes, depending on the size of the shutter.

OPERATION

Description

The Tube & Link Shutter is only available electrically operated. The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.

ELECTRIC - (N.B. minimum shutter width 750mm)

Electric shutters are usually fitted on larger openings where
Manual Operation is not suitable or where the operator
requires an easy, clean and user friendly type of operation.
Single phase tubular motors are enclosed within the barrel
giving full protection from the elements. Electric Roller
Shutters can be controlled individually or grouped to one
controller. The controllers available include internal rocker
switch, security key switch or Remote Control. Manual
overrides are available on Electric Roller Shutters which
allow the shutter to be operated when the power to the
shutter has failed.

The standard finish is Galvanised/Mill finish.
