Steel Fire Door - Rated 1-6hrs

Steel Fire Door - Rated 1-6hrs

Size Converter into MM


Our Fire rated door is rated for 1 - 6 hours against smoke and fire.  The fire resistance is either 1 hour, 2 hour, 3 hour, 4 hour or 6 hour - please specify what you need.  These doors have been tested by Exova Warrington Fire in accordance with BS476 part 22; 1987.   The doors have been tested latched and unlatched, which means that the door can have no latch but must have a Door Closer fitted or it must have a Latch.

Security Level
MEDIUM Security to HIGH Security dependent upon specification.
Common Use
Offices, Warehouses, Schools and Retail applications
Benefit of Product
The steel fire doors offer substantial benefits over comparable timber doors, with regards to the Fire Resistance, Strength, Durability and Security .  We stock many hardware options for Entry and Fire Exit doors. If there is a specified hardware requirement and we don't stock it, we can get them in.
Turnaround between 10 and 20 days.
Fast Track Turnaround available at extra cost.
Slow Track Turnaround available adding up to 14 days onto manufacture but a discount offering of a 5% per doorset.
Galvanised or Zintec Steel

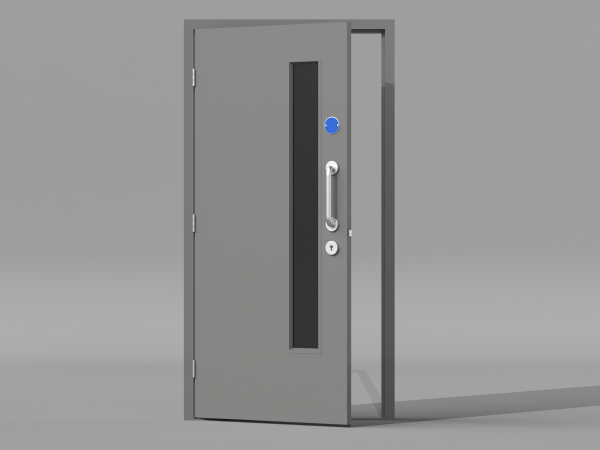

Size Parameters - Single Doors
Minimum Width:- 500 mm - Maximum Width:- 1250 mm
Minimum Height:- 500 mm - Maximum Height:- 2800 mm

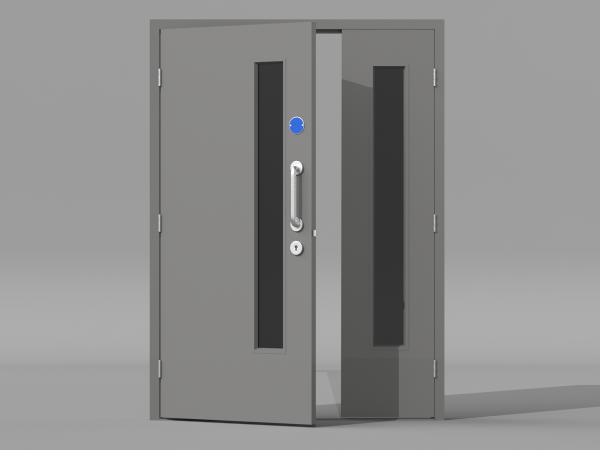

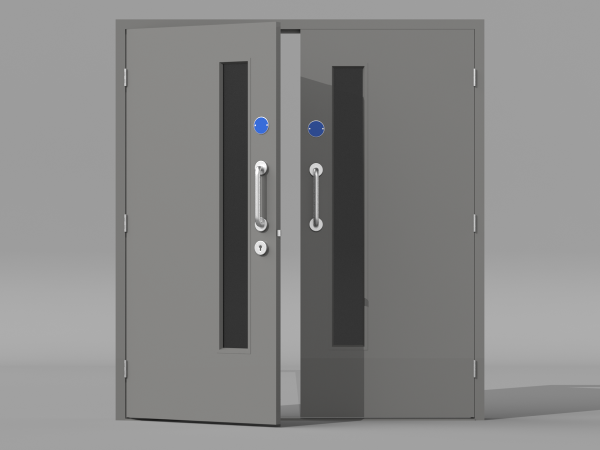

Size Parameters - Leaf & Half / Double Doors
Minimum Width:- 1200 mm - Maximum Width:- 2600 mm
Minimum Height:- 500 mm - Maximum Height:- 2800 mm
Dependent upon Specification
Primed Grey as standard, other BS or RAL colours are available at an extra cost.


Door Skin
Manufactured from 1.5 Zintec Steel, double skinned with interlocking seams reinforced vertically with interlocking channels and horizontally with tubes to prevent twisting. Spaces are filled with dense Rockwool.

Standard thickness is 45mm, but any other thickness is available on request.

Rockwool is used for Fire Rated Doors and are effective in reducing the "U" Value (thermal transmittance)



To achieve the Fire Rating the Door must be either Un-latched or Latched;

The door doesn't have any locking or latch, but must have a Heavy Duty Door closer.   The Door Closer will fail but by the time this has happened the door will have expanded within the frame and close off any gaps to prevent the spread of a fire.

If a door closer is not fitted then a mortice latch must be fitted to achieve the fire rating.   This latch could be anything from a standard Sashlock to Panic Hardware.

We stock and sell a full range of Locks, Panic Furniture, Door Closers, Key Code Locks, Door Stays, Monkey Tail Bolts, Shoot Bolts.
If there is a specified requirement for a certain manufacturer of hardware, we can implement these into the quotes and designs of the custom security doors.

Vision Panels
We have many stock size vision panels to fit into our fire doors, including;

200 mm Round x 6 mm
150 mm x 900 mm x 6 mm - 1/2hr Rated
200 mm x 900 mm x 9 mm - 4hr Rated
300 mm x 300 mm x 9 mm
400 mm x 400 mm x 9 mm
500 mm x 500 mm x 9 mm


Manufactured from 2.0mm Zintec Steel or Galvanised Steel.  Frames are formed to either a single or double rebate.

Frames can be either in welded or knock down form. They are reinforced and fitted with fixing plates.

Depth of frame can be varied to suit any brick, block or steel work, or to span any cavity etc.

All double frames will be supplied in the knockdown form unless specified otherwise.

Various Cills includes Low Profile (DDA Compliant), Flat Bar, Sloping Cill for Trolley and Wheelchairs. Please see our standard H Type Cill below with all the other cills available. To view all Cills please Click Here.
Standard Cill - Type H
The most popular cill is the H type. It is similar to type F but it has a leading face which fits under the door. Good for every kind of purpose, particularly panic bolts.

    Stock Colours
Powder Coated primer grey as standard, other BS or RAL colours are available at an extra cost. Stock colours below. If a colour is required that is not a stock colour we can source the powder in at an extra cost.


Security Level - Medium to High Security

Medium to High Security for when you require a bit more security than just a physical barrier.

Product Benefits

Tested and Approved to Fire Standards BS476 and BS EN 1634
