Bar Servery
Medium to High
Solid
Spring & Lock
Single Phase - Tube Motor
5800mm (Depending on Height)
3400mm (Depending on Width)
White, Brown, Black, Cream
Galvanised
10-20 working days

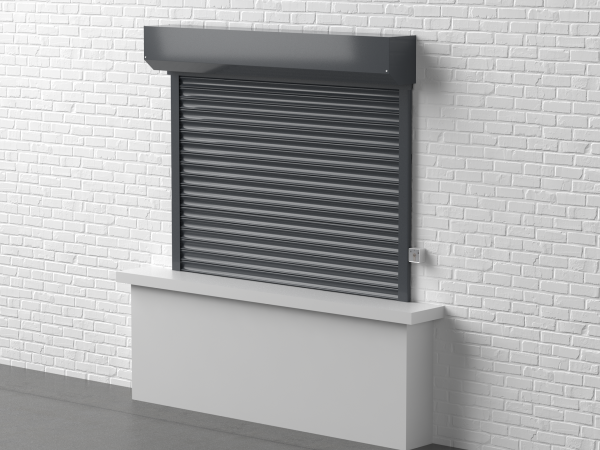

The RSA75 steel bar servery shutter is a popular shutter for Bars, Counters and Serveries. It uses the galvanised steel curtain with the aluminium Box and Guides. The Aluminium guides are neater and more aesthetically pleasing, compared to the traditional steel box and angled guides. The 75mm curved steel laths are available in 22G (0.7mm) or 20G (0.9mm) depending on the size of the roller shutter and the security level required. The laths are also available Solid, Perforated (18% Vision) and Punched (24% Vision).
The Steel Bar Servery Shutter is available Manual Operation, but due to the heavy laths, it is normally Electrically operated. The tube motor is fitted inside the barrel, which helps to keep the Box sizes smaller. The Tube Motors come with a 5 year manufactures parts warranty. Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a full automation system, including Timers, Remote Control Systems, and Smart Hubs eg; Alexa.
The Steel Bar Servery Shutter comes Powder Coated in White, Brown, Black or Cream as standard. The curtain can be provided Galvanised if required, at no extra cost. The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.
Curtain
Single skin 76mm (3'') curved steel slat. Wall thickness 0.7mm,0.9mm,
or 1.2mm, depending on overall shutter opening width. Solid laths are

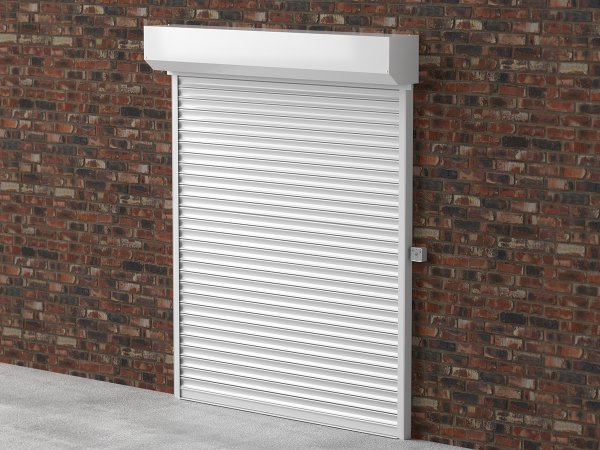

standard with the option

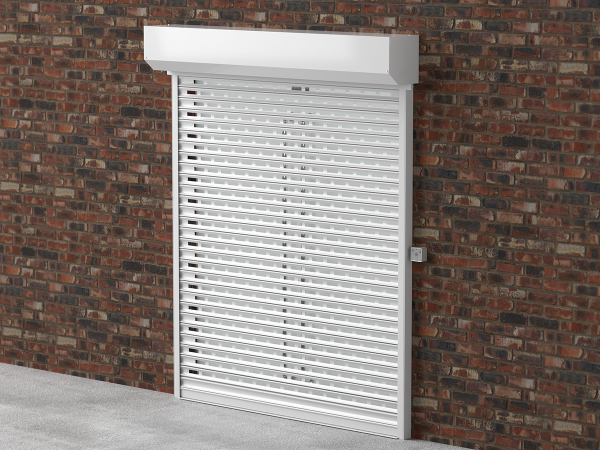

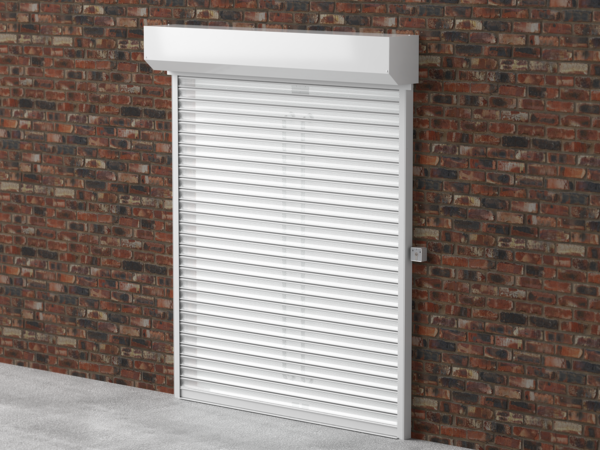

of Perforated (18% Vision) and Punched (25% Vision) at an additional cost.
Bottom Slat
Galvanised steel ’T’ shaped bottom rail is provided as standard. The option of an “L” is available when face fixing or need to miss a door handle on one side of the opening. Both the “T” rail and “L” Rail are available with a Rubber Bottom Seal and Safety Edge at an additional cost
Shutter Box
Galvanised steel casing & end plates as standard. For external installation or for covering up the roller shutter mechanism, there is the optional fascia and hood at an extra cost. Galvanised finish as standard, powder coating available at an additional cost.
Guide Rails
Galvanised steel “U” channel guides.
The guide size varies dependent on application/size, either 50mm, 65mm
or 100mm. Windlocking guides available for added security or windy
locations. Guide channels are bolted onto angle or box section,
depending on the application. Galvanised finish as standard.
Colours
The standard finish is Galvanised finish. It can be powder coated any BS or RAL colour.
Our video on how to measure a Window or Door opening.
Our video on how to install a Manual Spring Loaded roller shutter.
Our video on how to install an Electric roller shutter.
Our brochure on the Continental Steel Metal Roller Shutter.
Shutter installation instructions for manual spring and lock operated built-on roller shutters.
Aluminium roller shutter installation instructions for electrically operated roller shutters
Speak to one of our specialist advisors for more information about this product.
