Perforated Internal Sliding Security Shutters - 30% Vision

Why use the Perforated Internal Sliding Security Shutters?

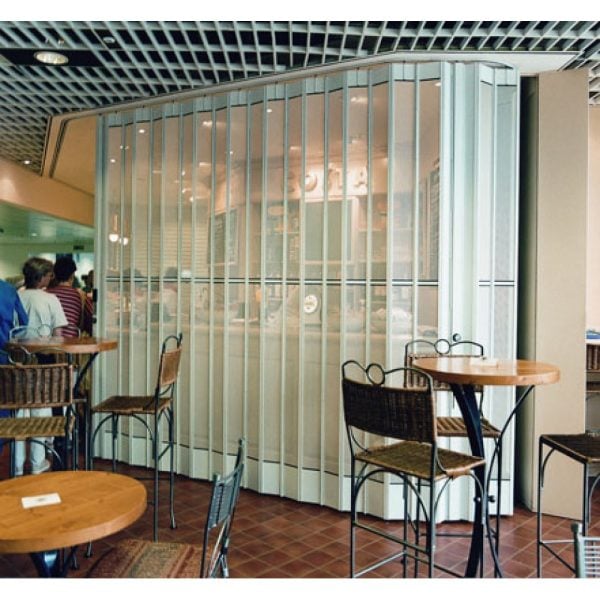

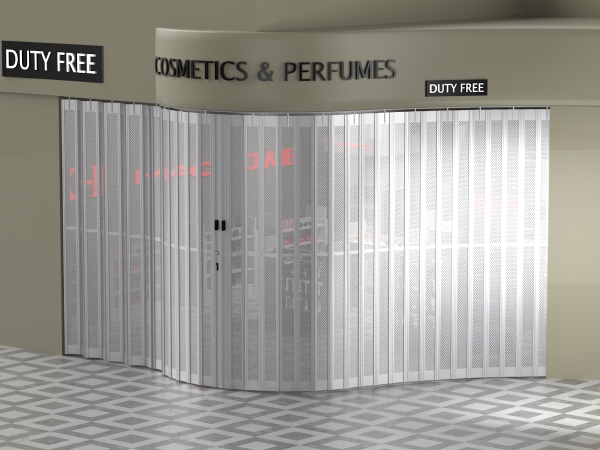

With no floor tracks required, the lightweight Perforated Sliding Shutters are suspended from a continuous overhead track and are manually operated in a slide-aside action. They do not require removable mullions or fixed posts as all components, including locking mechanisms, are integral. The Sliding Shutters are ideal when there is not enough headroom for a roller shutter. The Perforated Internal Sliding Security Shutters is that they can cover widths up to 80m wide and they can go around 45 and 90 degrees curves.

The Perforated Internal Sliding Security Shutters provide 30% Vision and high security. The Sliding Shutter is available in 3 other designs; Solid, Poly-carbonate and Brick bond.

The Perforated Internal Sliding Security Shutters comes in Anodised Silver, Black, White, Medium Bronze, and Light Bronze as standard. The shutters can be Powder Coated any BS or RAL colour to match your colour scheme.

Key Features
Application	Commercial, Retail, Bar and Serveries
Product Rating	High
Material	Aluminium
Lath Types	Perforated - 30% Vision
Max Width	80m
Max Height - Manual	4200mm
Curtain - Standard Finish	Anodised Silver, Black, White, Medium Bronze, Light Bronze
Lead Times	15 working days

GRILLE SPECIFICATION

Description

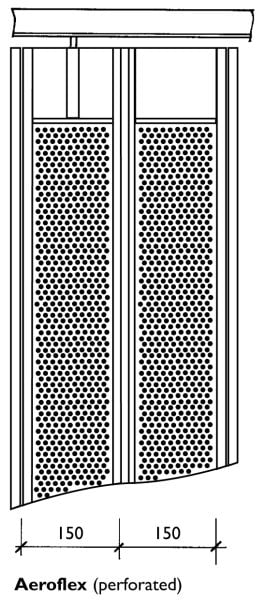

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° off-set to facilitate folding. The curtain is constructed of 152mm wide modules linked together by a continuous aluminium hinge. These hinges hold different curtain designs created by using different infils – in this case perforated steel with holes approx 5mm diameter which provide a minimum of 30% clear airflow.

TOP TRACK DETAILS

Manufactured from a strong tempered aluminium alloy class 6351 –T6 Extrusion, 34mm wide x 42mm total height. Track secured with 2 inch size 10 dome head square drive single thread screws.

LOCKING SPECIFICATION

Lock members are integral 50mm x 32mm standard extruded hollow posts. They are at both ends of each shutter or grille, at intervals of 2500mm maximum and at every curve (on countertops, specify at 1500mm maximum spacing).. Choose from seven different types of lock member. Lead posts incorporate Adams Rite Mortice Locks operated by 5-pin cylinders on each side. Immediate posts incorporate drop bolts locating into flush floor sockets. Drop bolts can be deadlocked with 5-pin cylinders.

OPERATION

The top of alternate panels is connected into the overhead track by a suspension rod and pairs of trolley wheels. Simply pull or push the Aeroflex Sliding Shutter to open or close. Any length of Aeroflex Sliding Shutter can be manually operated by a single person.

The Standard colour is Anodised Silver. Other colours available on request.
