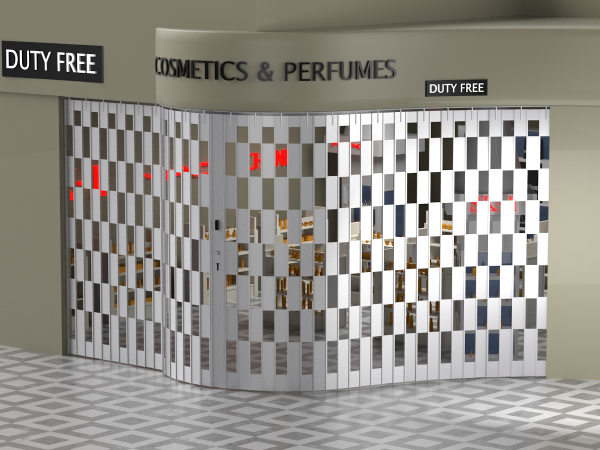

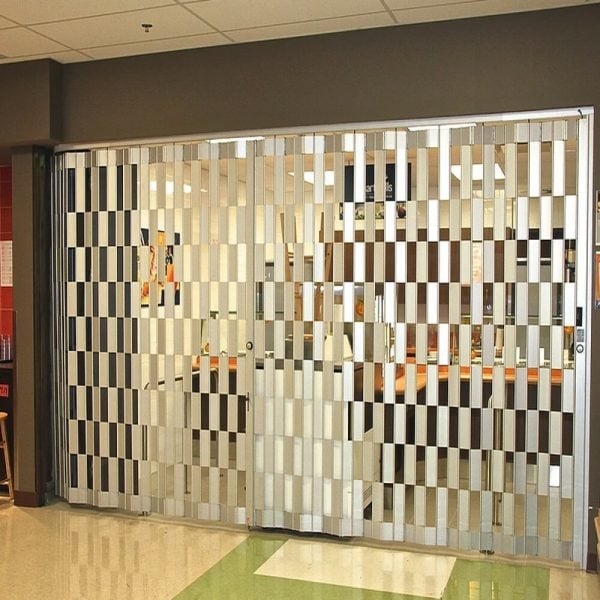

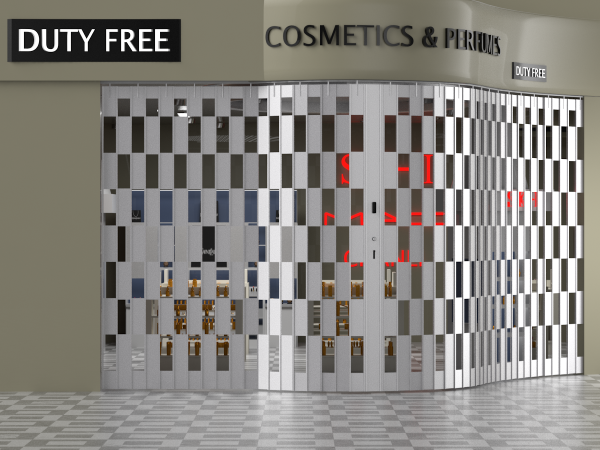

Brickbond Internal Sliding Security Shutter - 80% Vision

Why use the Brickbond Internal Sliding Security Shutter?

With no floor tracks required, the lightweight Perforated Sliding Shutters are suspended from a continuous overhead track and are manually operated in a slide-aside action. They do not require removable mullions or fixed posts as all components, including locking mechanisms, are integral. The Sliding Shutters are ideal when there is not enough headroom for a roller shutter. The Brickbond Internal Sliding Security Shutter is that they can cover widths up to 80m wide and they can go around 45 and 90 degrees curves.

The Brickbond Internal Sliding Security Shutters are made up of Tube and Links, which provides 80% Vision and medium security. The Sliding Shutter is available in 3 other designs; Solid, Perforated and Poly-carbonate.

The Brickbond Internal Sliding Security Shutter comes in Anodised Silver as standard. Due to the Tube & Links, this product cannot be powder coated.

Key Features
Application	Commercial, Retail, Bar and Serveries
Product Rating	Low to Medium
Material	Aluminium
Lath Types	Brickbond - 80% Vision
Max Width	80m
Max Height - Manual	4200mm
Curtain - Standard Finish	Anodised Silver
Lead Times	15 working days

GRILLE SPECIFICATION

Description

The top and bottom of each panel section is fitted with a 102mm high aluminium panel. This panel consists of an aluminium extrusion 2mm thick. It is connected into extruded hinge cleats with a 15° off set to facilitate folding. The curtain is constructed from 12mm aluminium tubes centred on a solid core which are connected across their span via decorative plates either 75mm, 150mm, 230mm or 300mm high. Different panel sizes are height specific. PLEASE NOTE – these are open grilles and can be accessible by arm/hands.

TOP TRACK DETAILS
Manufactured from a strong tempered aluminium alloy class 6351 –T6 Extrusion, 34mm wide x 42mm total height.

LOCKING SPECIFICATION

Lock members are integral 50mm x 32mm standard extruded hollow posts. They are at both ends of each shutter or grille, at intervals of 2500mm maximum and at every curve (on countertops, specify at 1500mm maximum spacing).. Choose from seven different types of lock member. Lead posts incorporate Adams Rite Mortice Locks operated by 5-pin cylinders on each side. Immediate posts incorporate drop bolts locating into flush floor sockets. Drop bolts can be deadlocked with 5-pin cylinders.

OPERATION

The top of alternate panels is connected into the overhead track by a suspension rod and pairs of trolley wheels. Simply pull or push the Sliding Shutter to open or close. Any length of Sliding Shutter can be manually operated by a single person.

The Standard colour is Anodised Silver. Other colours available on request.
