Fire Exit Folding Grille

The CS80 Fire Exit Door Security Grille has been specifically designed to protect vulnerable fire exit doors from unauthorised access, without compromising emergency escape routes. Fire exit doors often feature a push bar mechanism that overrides locking from the inside, leaving them exposed to forced entry from the outside. The CS80 provides an effective security solution, ensuring both safety and compliance. It can also be used to restrict access when fire doors are left open for ventilation.

Applications

The CS80 Fire Exit Door Grille is ideal for:

• Commercial and industrial premises requiring secure emergency exits.
• Schools, hospitals, and public buildings where safety and accessibility are essential.
• Retail units and warehouses with rear fire exits vulnerable to break-ins.
• Areas needing controlled access when doors are open for airflow or deliveries.

Design and Operation

Engineered for practicality and performance, the CS80 features a trackless folding design—eliminating the need for a bottom track that could obstruct escape routes or cause tripping hazards.

Key operational features include:

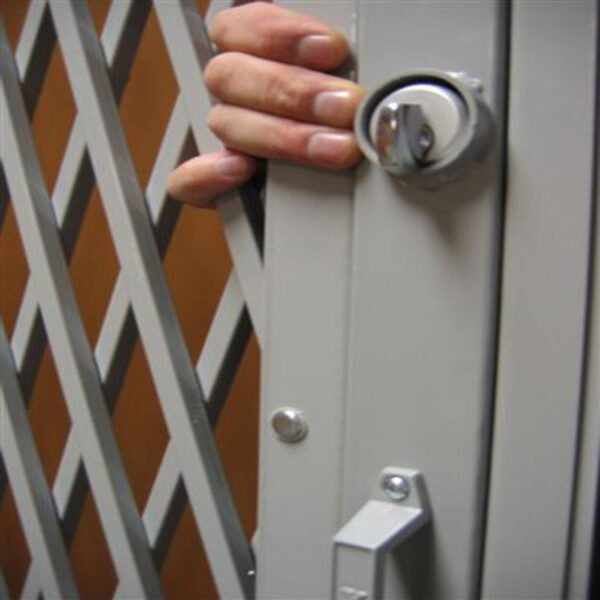

• Keyless Thumbturn Lock for quick, unrestricted exit in emergencies.
• Smooth folding action that allows the grille to turn 90° and fold neatly flat against the wall, maintaining the full door width for easy evacuation.
• Compact diamond lattice design to prevent unauthorised tampering from outside—hands cannot reach through the grille to operate the internal lock.
• Three standard widths (1010mm, 1330mm, and 1650mm) with a height of 2000mm, ensuring suitability for most standard fire exit doorways.

Colour Options

The CS80 Fire Exit Door Grille is supplied powder coated in White (RAL 9016) as standard.
