Why use the Punched Aluminium Roller Shutter?

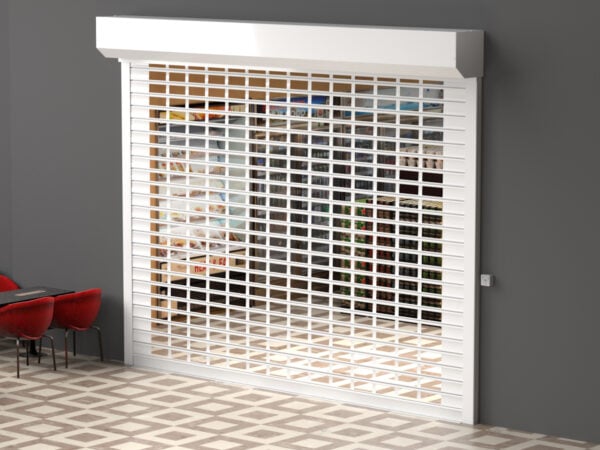

The RA8 Punched Aluminum Roller Shutters comes with a Punched curtain that can provide up to 58% vision and span openings up to 6m.  The punched laths can be used with Solid Laths or Polycarbonate Inserts to provide a high level of security.    Ideal for offices, shop fronts, showrooms or where vision and security is a requirement.

The RA8 Punched Aluminum Roller Shutter is available Manual Operation, but due to the large openings it covers, it is normally Electrically operated.  Why not automate the shutter, to make daily operation easier and you can incorporate your shutters into a full automation system, including Timers, Remote Control Systems, and Home Hubs eg; Alexa.

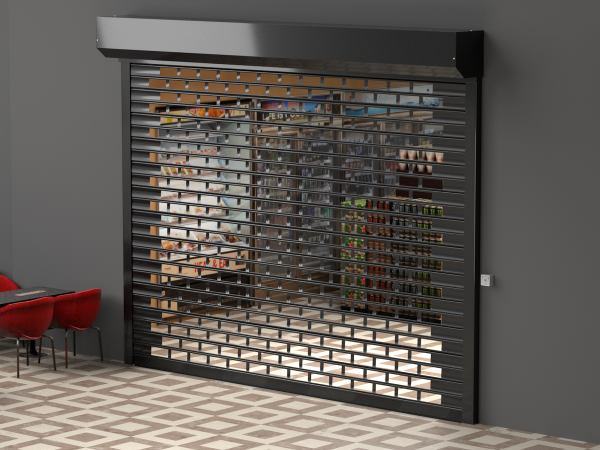

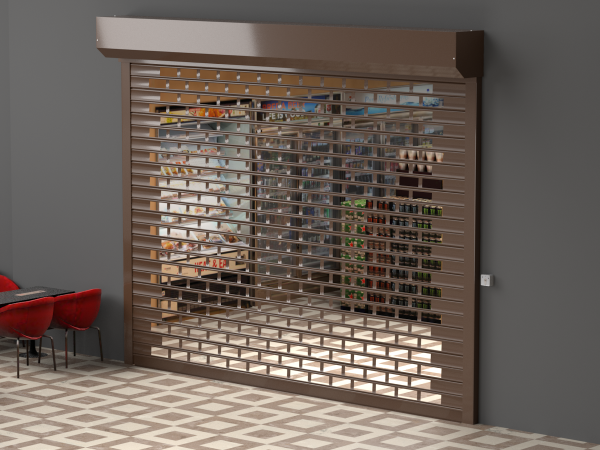

The Punched Aluminium Roller Shutter comes powder coated as standard in White, Brown, Black or Cream as standard.  The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Application Domestic, Commercial, Retail, Bars and Serveries
Product Rating High
Material Aluminium
Lath Types Punched - 58% Vision
Manual Operation Spring & Lock
Electric Operation Single Phase - Tube Motor
Max Width 6000mm (Depending on Height)
Max Height - Manual 2800mm (Depending on Width)
Max Height - Electric 5000mm (Depending on Width)
Box & Guides - Standard Finish White, Brown, Black, Cream
Curtain - Standard Finish White, Brown, Black, Cream
Lead Times 10 working days



    SLATS SPECIFICATION
 Description

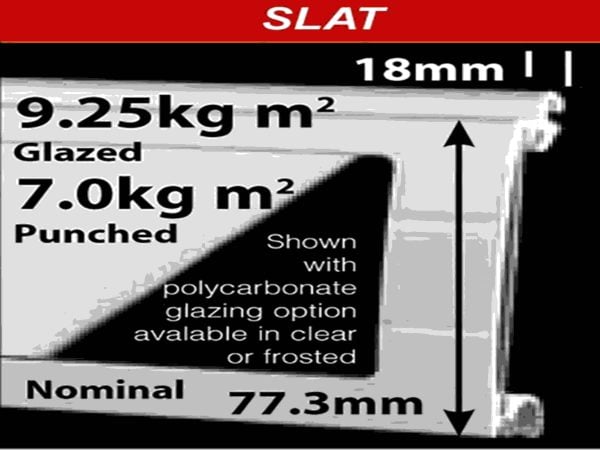

The standard RA8 Laths is a Single skin punched Aluminium Lath with anti vandal wind locks.  The punched sections are 150mm w x 55mm H with 30mm Spacing.  Available "In Line" as standard or "Brickbond" at an additional cost.   The curtain can be fully punched or partially punched using Solid Laths.



    BOX SPECIFICATION
 Description
Roll formed Aluminium in two sections; top and bottom boxes.  Bottom Box removable for installation and maintenance and is chamfered at 45o.  The shutter box is assembled on steel end plates.
 Box Sizes
Clear opening height (to underside of box)
1799 mm  -   250 mm box
3199 mm  -   180 mm box
3200 mm and above  -   350 mm box

Roller Shutters

    GUIDE RAIL SPECIFICATION
 Description

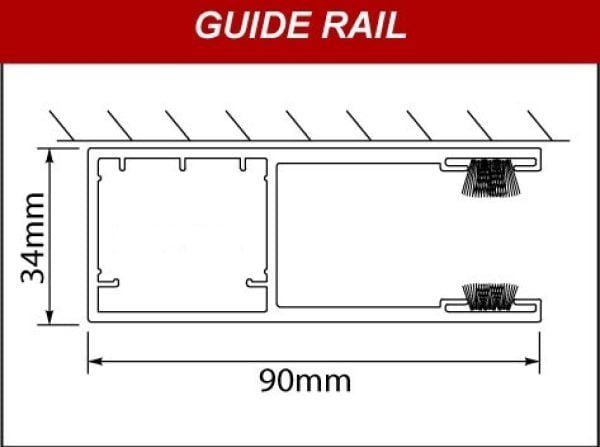

Extruded Aluminium Guides with an integral box section for reinforcement and to facilitate fixing.  High density 4 mm pile brush seals for quiet and smooth operation.





    OPERATION
 Description
The RA8 is available both manually and electrically operated using a tubular motor inside the barrel.  The options priced are shown on your quotation which also shows the method of operation we have included. This list shows possible options which would incur different costs.




     SPRING LOADED

      Roller Shutters usually installed mainly over doorways or
      Serveries are raised up and down by lifting and lowering the
      curtain by hand.  The roller shutter has a spring in the barrel
      which helps lifting the shutter.  As standard a central bottom
      lath lock is provided which has a key in the bottom lath and
      bolts shoot into the guides rails at each side.  The Bottom
                          lath lock can be operated from both sides but has a secure
                              and non-secure side to the lock.  Optional bullet locks are
                              available which are pins that go through the guide rails each side.



      ELECTRIC  - (N.B. minimum shutter width 750mm)

      Electric shutters are usually fitted on larger openings where
      Manual Operation is not suitable or where the operator
      requires an easy, clean and user friendly type of operation.
      Single phase tubular motors are enclosed within the barrel
      giving full protection from the elements.  Electric Roller
      Shutters can be controlled individually or grouped to one
                              controller.  The controllers available include internal rocker
                              switch, security key switch or Remote Control.  Manual
                              overrides are available on Electric Roller Shutters which
                              allow the shutter to be operated when the power to the
                              shutter has failed.



The RA8 Roller Shutter is available in the following standard colours.   Band A, Band and Band C are an additional cost.






From only £371.00
