Lightweight Internal Sliding Shutters

Lightweight Internal Sliding Shutter

Why use the Lightweight Internal Sliding Shutters?

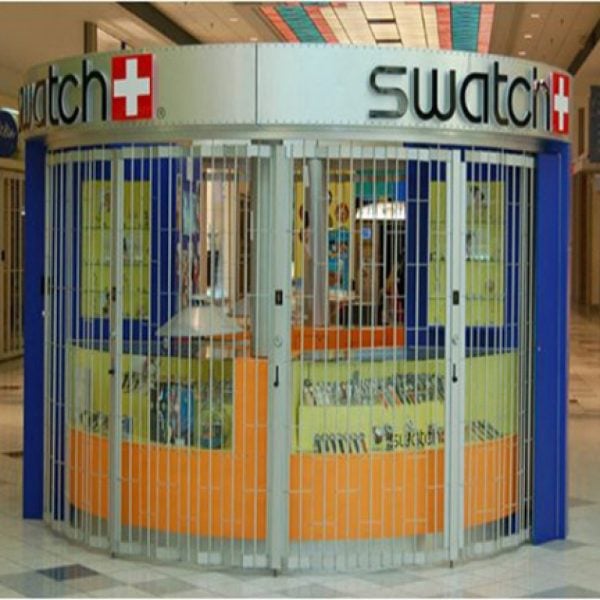

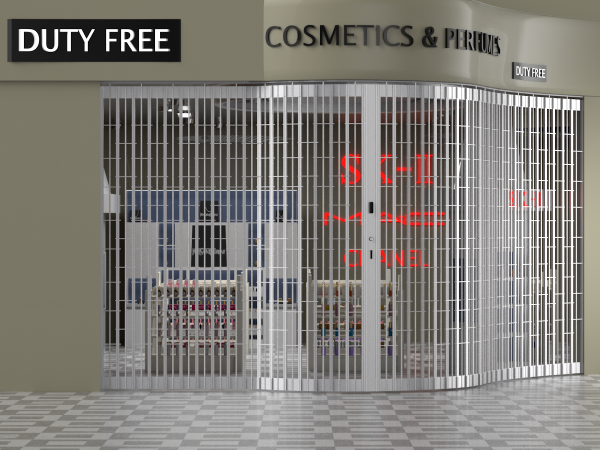

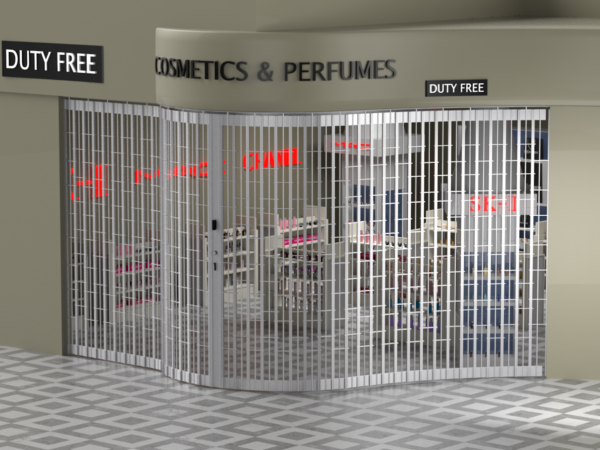

With no floor tracks required, the lightweight internal Sliding Shutters are suspended from a continuous overhead track and are manually operated in a slide-aside action. They do not require removable mullions or fixed posts as all components, including locking mechanisms, are integral. The Sliding Shutters are ideal when there is not enough headroom for a roller shutter. The lightweight internal sliding shutters can cover widths up to 80m wide and they can go around 45 and 90 degrees curves.

The Lightweight Internal Sliding Shutters are made up of Tube and Links, which provides 80% Vision and medium security. The Sliding Shutter is available in 3 other designs; Solid, Perforated and Poly-carbonate.

The Lightweight Internal Sliding Shutters comes in Anodised Silver as standard. Due to the Tube & Links, this product cannot be powder coated.

Key Features
Application	Commercial, Retail, Bar and Serveries
Product Rating	Low to Medium
Material	Aluminium
Lath Types	Tube & Link - 80% Vision
Max Width	80m
Max Height - Manual	3000mm
Curtain - Standard Finish	Anodised Silver
Lead Times	15 working days

GRILLE SPECIFICATION

Description

The top and bottom of each section is fitted with an aluminum panel 4” (102mm) high. This panel consists of an aluminum extrusion 1/16” (1,6mm) thick and composed of modules with a 15° angle between them to facilitate the operation of the closure. The curtain is constructed of vertical rods of 5/16” (8mm) in diameter. The spacing between the rods is 2-5/8” (67mm) in a brick pattern. These rods are linked together by flat horizontal bars of 1/8” x 5/8” x 6-5/8” (3mm x 16mm x 168mm). These bars are spaced vertically every 12” (305mm) by aluminum sleeves of 1/2“ (13mm) in diameter.

TOP TRACK DETAILS
Manufactured from a strong tempered aluminium alloy class 6351 –T6 Extrusion, 34mm wide x 42mm total height.

LOCKING SPECIFICATION

Lock members are integral 50mm x 32mm standard extruded hollow posts. They are at both ends of each shutter or grille, at intervals of 2500mm maximum and at every curve (on countertops, specify at 1500mm maximum spacing).. Choose from seven different types of lock member. Lead posts incorporate Adams Rite Mortice Locks operated by 5-pin cylinders on each side. Immediate posts incorporate drop bolts locating into flush floor sockets. Drop bolts can be deadlocked with 5-pin cylinders.

OPERATION

The top of alternate panels is connected into the overhead track by a suspension rod and pairs of trolley wheels. Simply pull or push the Sliding Shutter to open or close. Any length of Sliding Shutter can be manually operated by a single person.

The Standard colour is Anodised Silver. Other colours available on request.
