Why choose the Insulated Aluminium Roller Shutter?

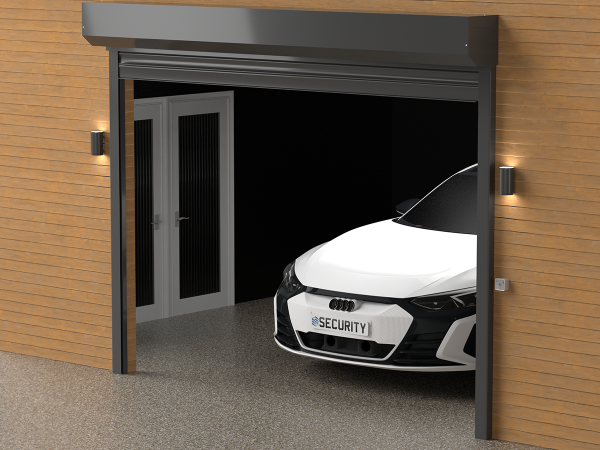

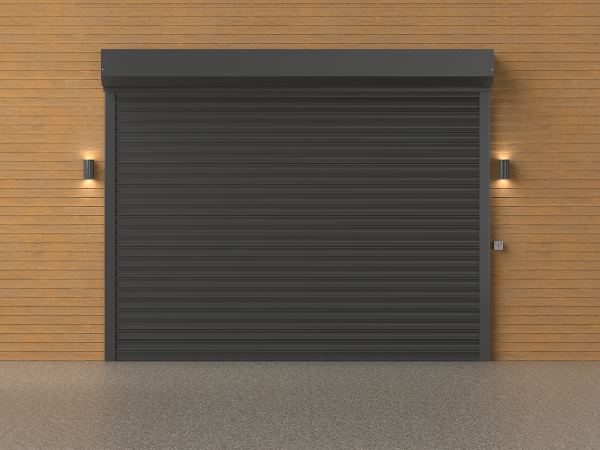

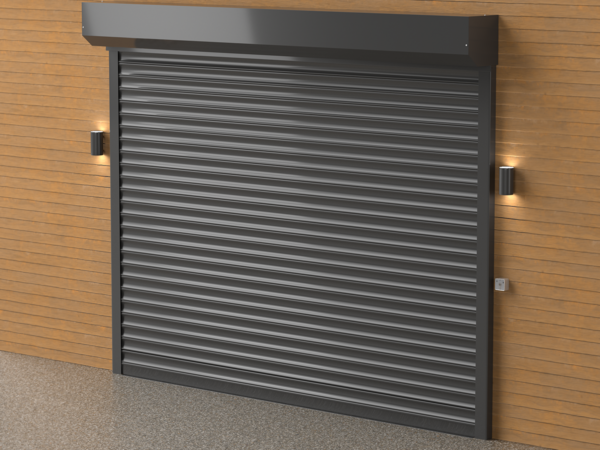

The RA77 Insulated Aluminium Roller Shutter uses an Insulated Aluminium curtain, which provides Heat and Sound insulation. The RA77 curtain is commonly used on Roller Garage Doors. The 77mm Insulated Curtain is popular as it comes in a range of 12 Standard colours, including a range of Woodgrain finishes. The insulated curtain can also be used with the RA8 Punched and Glazed Laths, to provide vision.
The Insulated Aluminium Roller Shutter is available Manual Operation - Spring and Lock. Why not automate the shutter, to make daily operation easier and you can incorporate the your shutters into a fully automation system, including Timers, Remote Control Systems and Home Hubs eg; Alexa.

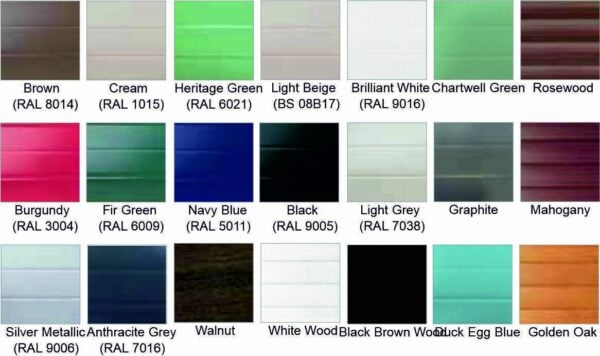

The Insulated Aluminium Curtain comes in 12 standard colours - Brown, Cream, Heritage Green, Ligh Beige, White, Burgundy, Fir Green, Navy Blue, Black, Light Grey, Silver Metallic and Anthracite Grey. The curtain is also available in a range of Painted and Wood grain finishes at an extra cost. The Shutter Box and Guides comes powder coated as standard in White, Brown, Black or Cream as standard. These can be Powder Coated any BS or RAL colour to match your colour scheme.
Filters | |
Criteria | Insulated |
Key Features | |
Application | Domestic, Commercial, Retail, Bar and Serveries |
Product Rating | Medium to High |
Material | Aluminium |

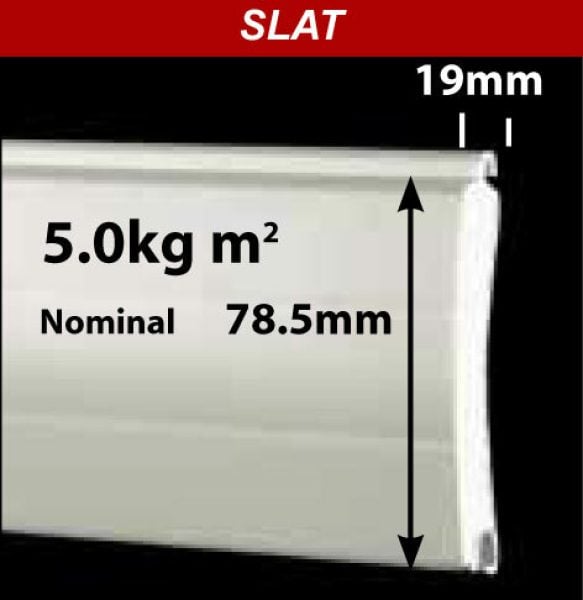

Lath Types | Solid - Insulated |
Manual Operation | Spring and Lock |
Electric Operation | Single Phase Tube Motor |
Max Width | 5000mm (Depending on Height) |
Max Height - Manual | 2800mm (Depending on Width) |
Max Height - Electric | 4000mm (Depending on Width) |
Box & Guides - Standard Finish | White, Brown, Black, Cream |
Curtain - Standard Finish | White, Brown, Cream, Heritage Green, Fir Green, Navy Blue, Black, Burgandy, Light Grey, Silver, Anthracite Grey |
Lead Times | 10 working days |


Box Sizes


SPRING LOADED
Roller Shutters usually installed mainly over doorways or
Serveries are raised up and down by lifting and lowering the
curtain by hand. The roller shutter has a spring in the barrel
which helps lifting the shutter. As standard a central bottom
lath lock is provided which has a key in the bottom lath and
bolts shoot into the guides rails at each side. The Bottom
lath lock can be operated from both sides but has a secure
and non-secure side to the lock. Optional bullet locks are
available which are pins that go through the guide rails each side.
ELECTRIC - (N.B. minimum shutter width 750mm)
Electric shutters are usually fitted on larger openings where
Manual Operation is not suitable or where the operator
requires an easy, clean and user friendly type of operation.
Single phase tubular motors are enclosed within the barrel
giving full protection from the elements. Electric Roller
Shutters can be controlled individually or grouped to one
controller. The controllers available include internal rocker
switch, security key switch or Remote Control. Manual
overrides are available on Electric Roller Shutters which
allow the shutter to be operated when the power to the
shutter has failed.
The Insulated RA77 Roller Shutter Curtain comes in the following finishes. The Box and Guides can be Powder Coated the nearest BS or RAL Colour.
Wh
The RA77 Box and Guides can be Powder Coated. Please see below;


- Stock: Made to Order
Available Options
Drive Handing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Left | |||
Right |
Left Hand Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Reveal Fix Alu | |||
Face Fix Alu | |||
Face Fix Overall Product Size | |||
Reveal Fix Overall Product Size |
Operation
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Manual Spring and Lock | |||
Motorised |
Right Hand Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Reveal Fix Alu | |||
Face Fix Alu | |||
Face Fix Overall Product Size | |||
Reveal Fix Overall Product Size |
Top Fixing
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Reveal Fix Box | |||
Face Fix Box | |||
Face Fix Overall Product Size | |||
Reveal Fix Overall Product Size |
Application
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Window | |||
Door | +£79.00 |
Curtain Colour
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Standard-Brilliant White-RAL 9016 | |||
Standard-Cream-RAL 1015 | |||
Standard-Brown-RAL 8014 | |||
Standard-Black-RAL 9005 | |||
Standard-Burgundy-RAL3004 | |||
Standard-Heritage Green-RAL 6021 | |||
Standard-Light Grey-RAL 7038 | |||
Standard-Light Beige-BS 08B17 | |||
Standard-Silver Metallic-RAL 9006 | |||
Standard-Anthracite Gey-RAL 7016 | |||
Standard-Fir Green-RAL 6009 | |||
Standard-Royal Blue-RAL5011 |
Box and Guides Colours
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Standard-Brilliant White-RAL 9016 | |||
Standard-Cream-RAL 1015 | |||
Standard-Brown-RAL 8014 | |||
Standard-Black-RAL 9005 | |||
Standard-Burgundy-RAL 3004 | +£33.00 | ||
Standard-Heritage Green-RAL 6021 | +£33.00 | ||
Standard-Light Beige-BS 08B17 | +£33.00 | ||
Standard-Light Grey-RAL 7038 | +£33.00 | ||
Standard-Silver Metallic-RAL 9006 | +£33.00 | ||
Standard-Fir Green-RAL 6009 | +£33.00 | ||
Standard-Anthracite Grey-RAL 7016 | +£33.00 | ||
Standard-Royal Blue-RAL 5011 | +£33.00 |
Fitting
Product Information | Price | Quantity | Add to Cart |
---|---|---|---|
Internally Fitted | |||
Externally Fitted |
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 5400mm
- Min Height - 500mm
- Max Height - 4000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum Sizes.
These sizes will depend on the overall size of the poroduct.
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for you Click herePlease enter your opening sizes and then follow the steps to build a product to suit your requirements.
Manual - Spring & Lock
- Min Width - 755mm
- Max Width - 4000mm
- Min Height - 500mm
- Max Height - 2800mm
Electric - Tube Motor
- Min Width - 660mm
- Max Width - 5400mm
- Min Height - 500mm
- Max Height - 4000mm
Detailed Size Matrix Download
Please Click the "Product size Guide" above to reveal the Minimum and Maximum
Sizes.
These sizes will depend on the overall size of the poroduct.
Structural Opening Sizes
Lath Sizes
Width
Height
Units
Qty
Not sure what you need? Multiple Openings?
Contact our Sales Team and let us do a quote for youClick here
You can build your laths as required, choose your desired width and step through.. blah blah blah.. more instructions required..
Width
Units
Opening {{index}}
Once you have selected an option from each box, it will allow you to go to the next step.
Alternatively call our sales team for help on selecting the right product to suit your sizes and application.
