Why use the High Security Retractable Security Grille?

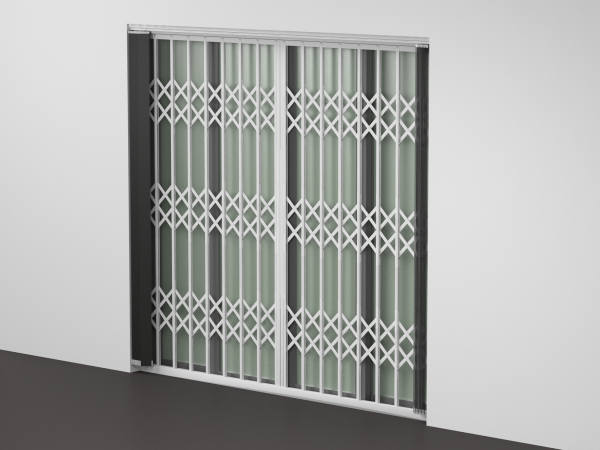

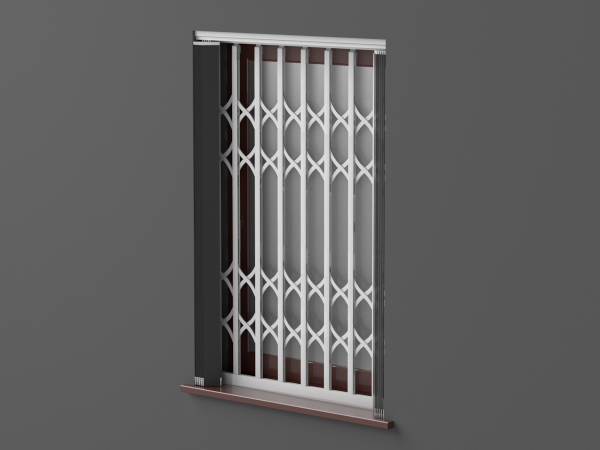

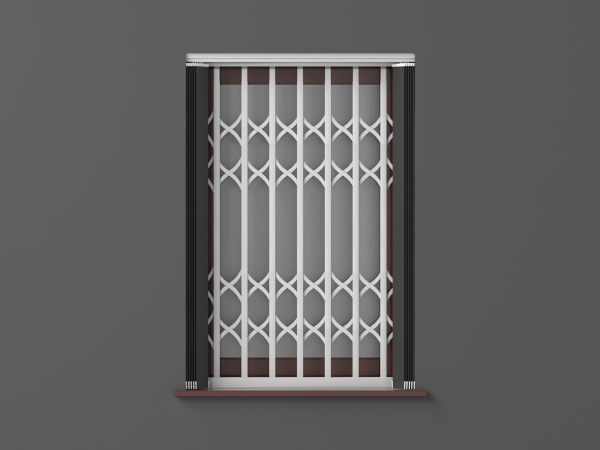

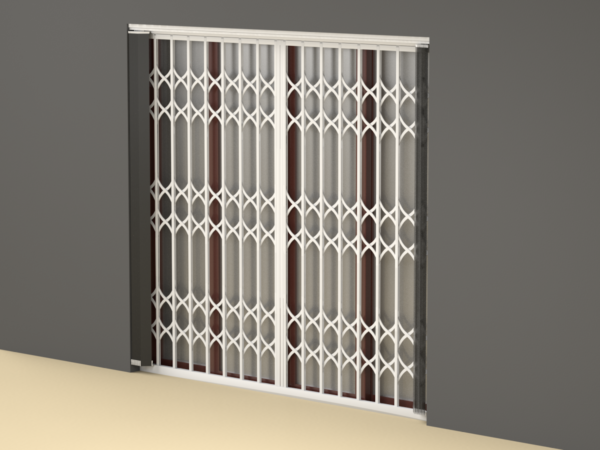

The CS10 "Deluxe" is our most popular Made to Measure Retractable grille. It has been designed to provide a High Level of Security and a Visual deterrent for Windows and Doors. The CS10 "Deluxe" comes as standard with a Two Point Hook Lock built into the grille, for added strength and security. The grille is Top Rolling for smooth operation, available with a choice of 2 designs - "X" and "S" Lattice. Fitted Internally, it can be Single Stack or Double Stack at no extra cost. The grille is available with Lift Up Bottom Tracks for Doorways and Hinge Around facility.
The CS10 Deluxe comes Powder Coated in a range of 50 standard colours at no extra cost. The grilles can be Powder Coated any BS or RAL colour to match your colour scheme at an additional cost.
Domestic, Commercial, Retail
"X" and "S"
2 Point Hook Lock
Max Height - Manual
50 Standard Colours
10 working days
CS10 "Deluxe" is manufactured from galvanised steel with a choice of X and "S" lattice design
Please note: The CS10 can accommodate an unlimited width with multiple sashes. Sashes are made in single pieces up to 2m wide. Larger sizes are made in sections for assembly on site, ensuring the weight of each section can be handled safely. Gates which are wider than 4m will be supplied with the top track in two pieces, the split will be in the middle. Where two split sashes meet two pickets are joined together using bolts and fixing plates supplied loose.
Approximately 15% of the overall width
TWO POINT LOCKING SYSTEM - Two point multi point Hook Locks. The lock is located in between the leading pickets, offering extra protection against attack.
LIFT UP AND HINGED BOTTOM TRACKS - Usually fixed on doorways where the Bottom Tracks could be a tripping hazard.
HINGE AROUND FACILITY - Allows the grille to hinge around - requires a Lift Out Track
The CS10 "Deluxe is available in any of the Standard, Band A and Band B Colour at no extra cost. Band C colours are an additional cost.
