 Why choose the Stack Door?

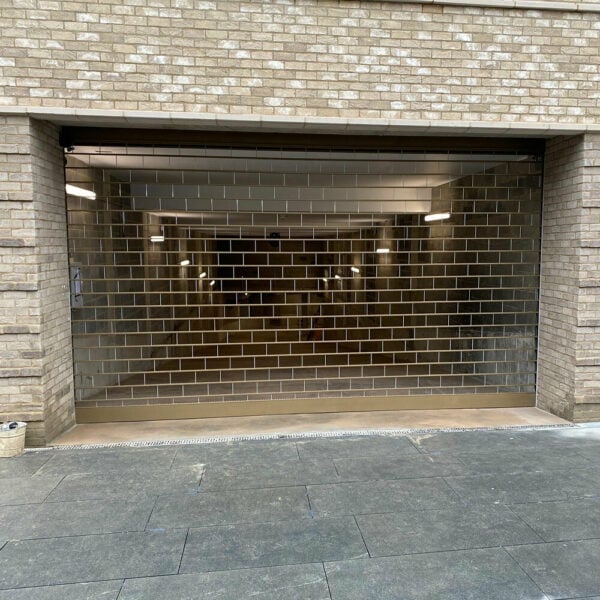

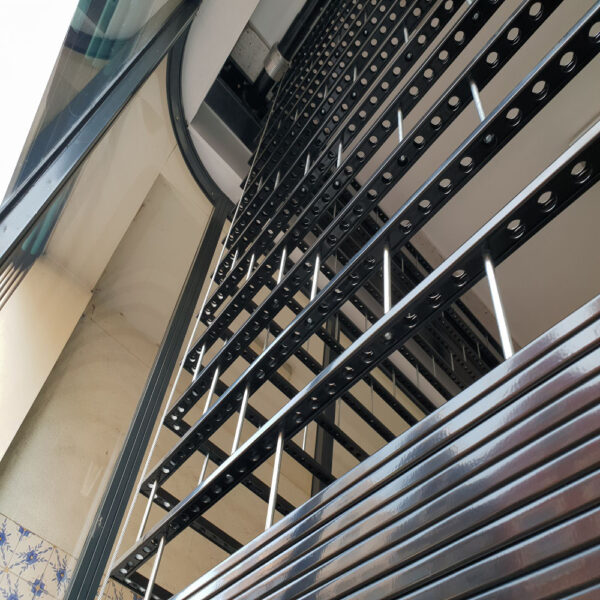

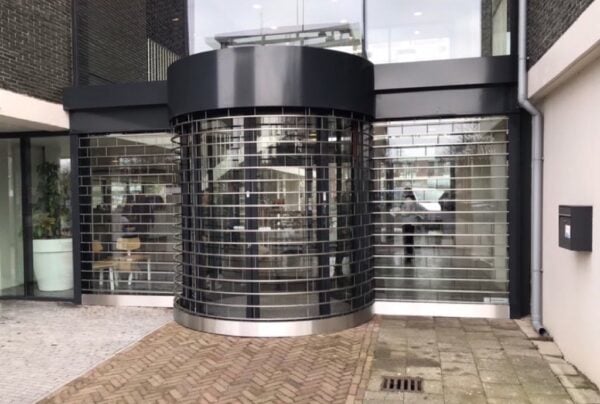

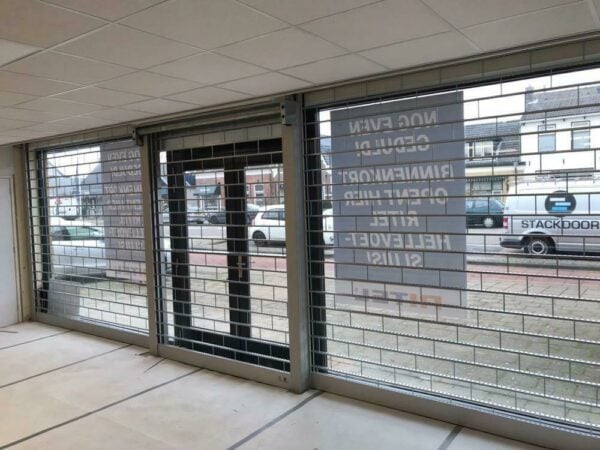

The Stack Door is a new type of shutter as it Stacks Vertically, rather than coiling around a barrel.   The advantage of this Stack Door is that it can cover large openings, can go around curves and corners.   It's made up of Horizontal Bars and vertical pins.  The chain drives on each side of the shutter, lift up the curtain and it stacks vertically at the top.  The advantage of this is it can be fitted around corners, shaped to go around objects, limited headroom is required and it go up to 6240m wide.   The curtain provides 80% air flow/vision, whilst being a high-security product.   Independently Tested by the LPCB to LPS1175 Security Rating Level 1 - Certified for Installation Internal and Externally.   This is a Secured By Design product, which is a Police and Insurance preferred specification.

The Stack Door is only available Electrically operated.   It can be operated using a Single Phase Tube Motor with a Toggle or Key Switch.  For larger openings, we can use a Single or 3 Phase Direct Drive motor with a push button station.  Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation.

The curtain is manufactured from Stainless as standard.   The Box and Guides come as standard in Galvanised finish.   The shutter can be Powder Coated any BS or RAL colour to match your colour scheme.


Key Features
Secured By Design Yes
Product Rating LPS1175 Security Level 1
Material Stainless Steel
Lath Types Grille - 80% Vision
Max Width 6240mm
Max Height - Electric 10000mm (Depending on Width)
Box & Guides - Standard Finish Galvanised
Curtain - Standard Finish Stainless Steel
Lead Times 20-30 working days

    SLATS SPECIFICATION

 Description
Stainless or zinc plated steel pins secured into horizontal stainless, zinc plated or powder coated steel profiles.




    GUIDE RAIL SPECIFICATION
 Description
Reinforced extruded aluminum guide rails anchored directly into the structure. On the larger opening, there may be double guides on each side. Each guide rail has a chain drive built into the guides, which is attached to the axle.




SINGLE GUIDE RAIL




DOUBLE GUIDE RAIL




    OPERATION
 Description

LIGHT USAGE:-
Electric, Tubular Motor: Tubular motor with an internal rocker or external key switch as standard & safety brake as appropriate to comply with legislation.  Manual override facility & crank handle as required (surcharge applies).
HIGH SPEED OR HIGH USAGE:- 3 Phase (415V) Outboard Motor: Three phase motor with a safety brake, chain manual override & push-button control station as standard.
Both tubular & outboard motors have numerous control option variants such as group, remote or mobile phone activation.
CE Compliant to all applicable directives and regulations.





The standard finish of the Stack Grille is Zinc Plated.




The Horizontal Curtain Section, Shutter Box and Guides can be Powder Coated one of our Stock Colours below.  Depending on the Band A, B or C will depend on the additional cost.




From only £2,000.00
